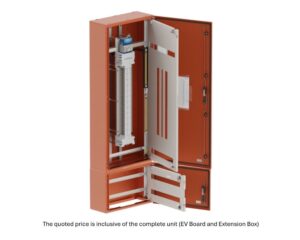

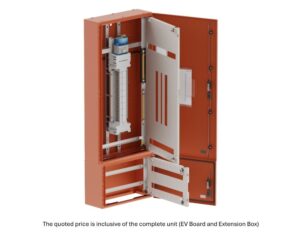

Outdoor EV-DB + Extension Box

Model
google-reviews
Contact Us
Availability: instock

QUICK OVERVIEW

Dedicated Indoor Electric Vehicle Distribution board and extension box, inline with the New National Construction Code and the AS/NZ 61439-3 standard.

Suitable for all indoor applications,  rated for 250A, capable of servicing upto 24 AC single phase chargers or 18 AC three phase chargers and ideal for OCPP and network connection points.

Included in solution bundle:

EV-Distribution Board

Extension Box

SKU: OC-EVDBRES-1
Shipping 3 Free Shipping Australia Wide
Warranty 3 Up to 2 Years Warranty
Dispatch 3 Same Day Dispatch
Years 3 Since 2015

EV-DB

Product EV-DB (Outdoor) – Orange
Poles 72 Poles Chassis + 2 x 6 pole DIN
Rails 3
Modules 36
Regulations AS/NZ 3000 | AS/NZ 61439-3
Rated Current 250A
Rated Voltage 250V
Rated Operational Voltage 415V
Rated Insulation Voltage 690V
Rated Impulse Voltage 4kV
Rated Short Circuit 20kA 0.2sec | 40kV peak
Frequency 50Hz
IK Rating IK05
IP Rating
IP66
Dimensions 1400mm (H) x 600mm (W) x 250mm (D)

Extension Box

Product EV Coms Cabinet (Outdoor) – Orange
Modules
48
Regulations
AS/NZ 61439-3
Rows 2
Rails 2
Protection Suitable for lightning protection
IK Rating IK05
IP Rating IP66
Dimensions 400mm (H) x 600mm (W) x 250mm (D)

Additional information

Weight 31.48 kg
