Circuit Breaker

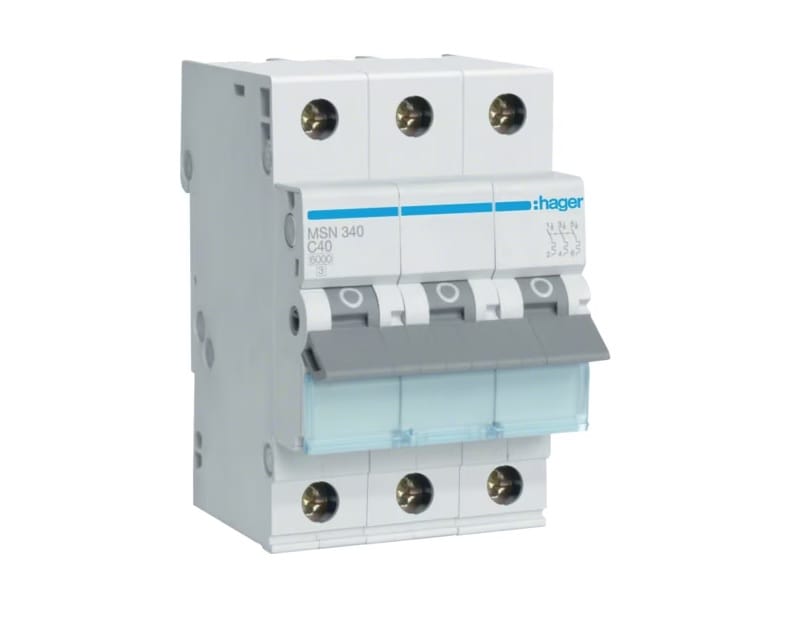

HAGER MSN340 | THREE POLE 40AMP 6KA C-CURVE CIRCUIT BREAKER
Number of modules: 3
Number of poles: 3 P
Rated short circuit breaking capacity: 6 kA
Curve: C
Rated current: 40 A
Frequency: 50/60 Hz
Rated insulation voltage: 500 V
Operating temperature: -25 to 60 ¡C
Electric endurance in number of cycles: 4000
Number of mechanical operations: 20000
Top and bottom screw terminals connection capacity with rigid cable: 1/25 mm_
Top and bottom screw terminals connection capacity with flexible cable: 1/16 mm_
Tightening torque: 2,8Nm
Height of installed product: 83 mm
Width of installed product: 52.5 mm
Depth of installed product: 70 mm

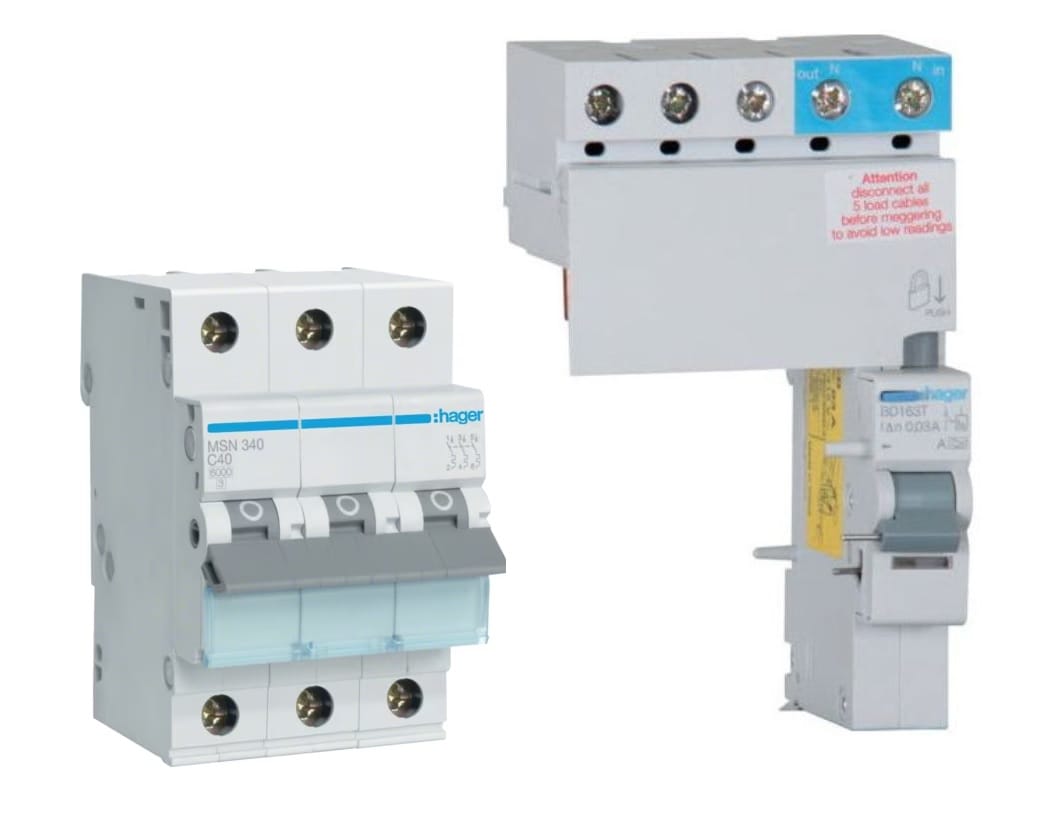

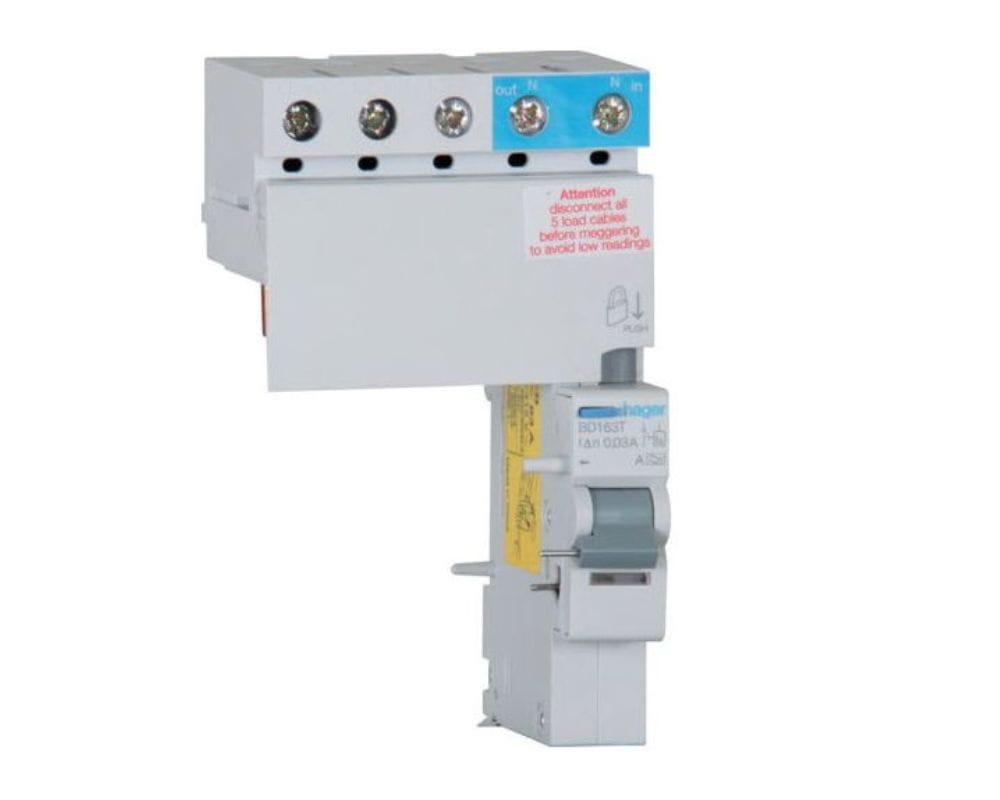

Add On Block RCCB Type A
| BRAND | Hager |
| STANDARD PACK SIZE | 1 |
| UNSPSC CLASS | 39121600 |
| UOM | EA |
| VENDOR PRODUCT | BD163T |
| NUMBER OF POLES | 3 Pole |
| CURRENT | 63 Amp |
| VOLTAGE | 230-400/240-415 Volt |
| PRODUCT TYPE | Earth Leakage Add On Block |
