72 POLE BOARD WITH 250A ISOLATOR SWITCH

Model
google-reviews
Contact Us
Availability: instock

QUICK OVERVIEW

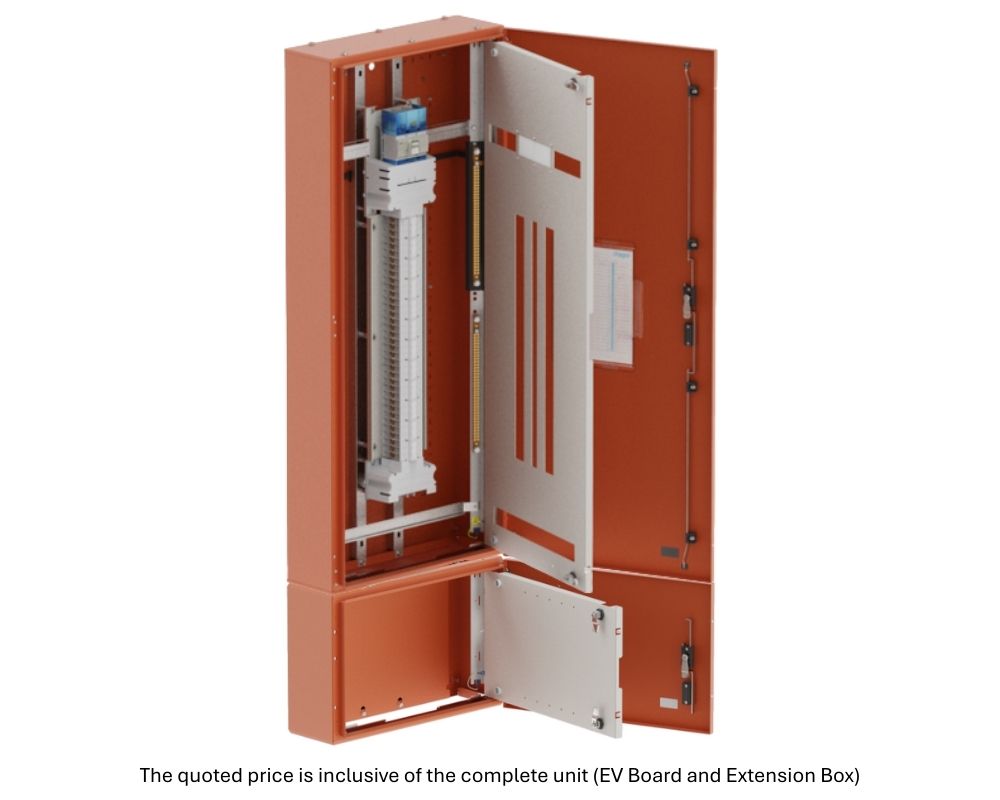

Dedicated Indoor Electric Vehicle distribution board

  • AS/NZ 61439-3 standard.
  • Suitable for all indoor applications, rated for 250A, capable of servicing upto 24 AC single phase chargers or 18 AC three phase chargers.
  • Matching extension boxes available here
SKU: OC-7200RES
Shipping 3 Free Shipping Australia Wide
Warranty 3 Up to 2 Years Warranty
Dispatch 3 Same Day Dispatch
Years 3 Since 2015
Model OC-7200RES
Product EV-DB (Indoor)
Poles 72 Poles Chassis + 2 x 8 pole DIN
Rails 2
Modules 16
Regulations AS/NZ 3000 | AS/NZ 61439-3
Rated Current 250A
Rated Voltage 250V
Rated Operational Voltage 415V
Rated Insulation Voltage 690V
Rated Impulse Voltage 4kV
Rated Short Circuit 20kA 0.2sec | 40kV peak
Frequency 50Hz
IP Rating IP30
Dimensions
1235mm (H) x 480mm (W) x 135mm (D)
Weight 31.48kg

Additional information

Weight 31.48 kg
