Metrel MI 3136 XC Station + 1532 XA Adapter Bundle

EV Charging Station Tester | Metrel | MI 3136 XC

This electric vehicle charging station testing equipment allows you to service and test EV chargers deployed in public and commercial areas for electrical safety and compliance to AS/NZS 3017 standards.

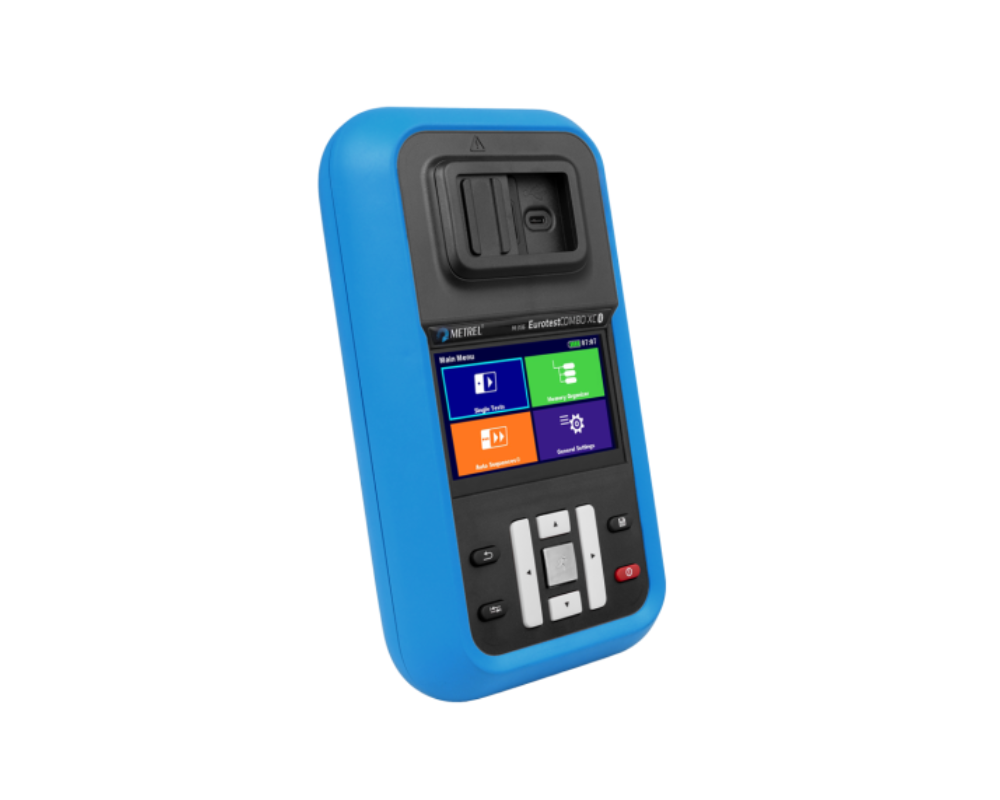

The Metrel MI 3136 EurotestCOMBO XC Multifunction Installation Tester can be used to check the installation, functionality and safety of EV charging stations and all other aspects of electrical installations. It features EVSE testing support and predefined AUTO SEQUENCE® functionality, enabling the user to check every aspect of EV charging stations at the push of a button.

Note: EVSE AUTO SEQUENCE® functionality requires the optional A 1532 XA EVSE Adapter

EV Charger Tester | Metrel | 1532 XA Adapter

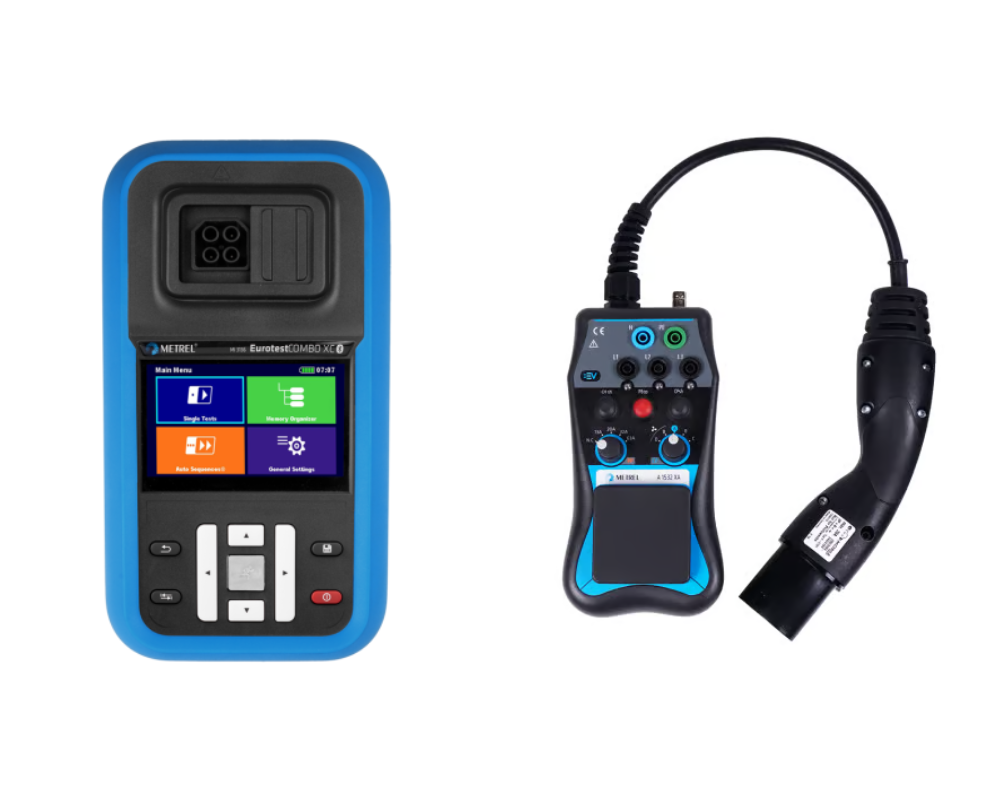

The A 1532 EVSE XA adapter is used for verification of electrical safety and functional testing of EVSE together with supported METREL installation testers. It is intended for testing Mode 3 EV supply equipment with a type 2 connector. XA version supports 3 phase load testing up to 13 A and different error types, including PE open. If used together with Metrel AUTOSEQUENCES®, prebuilt in the newer multifunctional testers, the complete EVSE charging station can be tested (state-by-state) electrically and functionally with a push of a button. It is possible to create a professional station based report with MESM

EV Charging Station Tester | Metrel | MI 3136 XC

In addition, the Metrel MI 3136 EurotestCOMBO XC Multifunction Installation Tester can check TN and TT earthing systems and features four predefined automatic test sequences. It is equipped with a comprehensive range of measurement procedures and tests:

• Insulation resistance with DC test voltage from 50V to 1000V
• Continuity of PE conductors with 200mA DC test current with automatic polarity reversal
• Continuity of PE conductors with 7mA test current without RCD tripping
• Loop impedance and line impedance measurement
• Loop impedance with Trip Lock RCD function
• True-RMS voltage and frequency
• General and selective RCD testing (types AC, A, F, B, B+)
• Earth resistance (3-wire method)
• Automated RCD testing procedure (RCD AUTO)

INCLUDES:

• Instrument MI 3136 EurotestCOMBO XC
• 1x Test probe, Black (A 1014)
• 1x Test probe, Blue (A 1015)
• 1x Test probe, Green (A 1062)
• 1x Crocodile clip, Black (A 1013)
• 1x Crocodile clip, Blue (A 1310)
• 1x Crocodile clip, Green (A 1309)
• 1x Test cable, BLK/GRN/BLU, 1.5m, 0.75mm² (A 1193)
• 1x Test cable, 1.5m, 0.75mm² (A 1053)
• 1x USB cable, Type C (A 1857)
• Calibration certificate
• Instruction manual
• Metrel ES Manager BASIC Licence

The optional A 1532 XA EVSE Adapter connects directly to charge points without opening the enclosure, simulating EV connection status at the turn of a switch. Simple connection via a Type 2 EV plug to the charge point, with standard 4mm connections to the tester. The A 1532 XA can be used with any installation tester, however optimum performance is achieved with Metrel Multifunction Testers.

APPLICATION: On-site testing of EVSE charging station installation. Initial and periodic testing of private, semi-private and public EVSE charging stations.

Measuring functions

• • Insulation resistance with DC test voltage from 50V to 1000V (test voltages: 50V, 100V, 250V, 500V, 1000V)
  • Continuity of PE conductors with 200mA DC test current with automatic polarity reversal
  • Continuity of PE conductors with 7mA test current without RCD tripping
  • 2-wire and 3-wire loop impedance (L-PE) measurement with Trip Lock RCD function
  • 2-wire and 3-wire line impedance (L-L, L-N) measurement
  • Loop impedance without RCD tripping (Zs RCD function)
  • TRMS voltage measurement: 0–550V
  • TRMS frequency measurement: 14–499.9Hz
  • General and selective RCD testing (types AC, A, F, B, B+)
  • Automated RCD testing procedure (RCD AUTO) with separate RCD type and current shape selection
  • RCD trip time measurement: 0–10 seconds
  • RCD ramp current measurement: 0.1mA–1.1A
  • Earth resistance: 3-wire method (0.00Ω–9999Ω)
  • Real-time monitoring of all 3 voltages
  • EVSE (Electric Vehicle Supply Equipment) support (requires optional A 1532 XA adapter)

Key features:

• • 5.2Ah Li-ion battery with built-in charger
  • Universal USB Type-C connector for fast charging (15V, 3A, 45W) and PC communication
  • 4.3″ TFT high-resolution colour touchscreen for fast test navigation and data storage
  • Predefined automatic tests: Auto TT, Auto TT RCD, Auto TN, Auto TN RCD
  • Programmable AUTO SEQUENCE® profiles
  • Predefined profile-dependent AUTO SEQUENCE®
  • EVSE AUTO SEQUENCE® and function inspections (requires optional A 1532 XA adapter)
  • Visual inspections
  • Functional inspections
  • Separate RCD type and current shape selection in RCD measurements
  • Automated RCD testing procedure (RCD AUTO)
  • Built-in help screens for on-site referencing
  • Built-in fuse tables for automatic evaluation of line/loop impedance results
  • Real-time monitoring of all 3 voltages
  • Automatic polarity reversal on continuity test
  • Measurement filtering by selected area group
  • Bluetooth® connectivity for communication with PC, Android tablets and smartphones
  • Wi-Fi connectivity for Metrel Cloud integration (available with MESM PRO and Metrel Cloud licences)
  • Metrel Cloud Storage and Cloud App compatible (available with Metrel Cloud licences)
  • PC SW Metrel ES Manager compatible (BASIC Licence included; PRO Licence required for full reporting and data archiving)

EV Charger Tester | Metrel | 1532 XA Adapter

• Banana socket outputs for connection to a 3-phase installation tester

• Voltage indicators on EVSE output

• Proximity Pilot resistance selector for simulation of EV cable presence and current rating detection

• Control Pilot resistance selector for simulation of electric vehicle status

• Socket output for connection to a 1-phase installation tester (Phase 1, Neutral, PE)

• Type 2 Male Plug connector for connection to EVSE

• 6 mA EV RCD support

• Functional tests support

• EVSE AUTO SEQUENCE® support

• MESM report creation

• Load testing up to 13 A on socket – 1 phase or on banana sockets – 3 phase

• Fault simulation of Diode short, PE-CP short and PE open

• Output BNC connector for CP signal monitoring
