CCS Inlet

CCS Type 2 Combined Charging System | 200 Amp

$360

Availability: In Stock!

Contact Us

Quick Overview

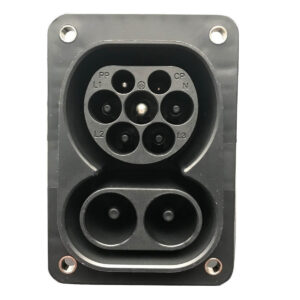

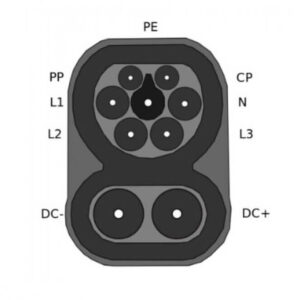

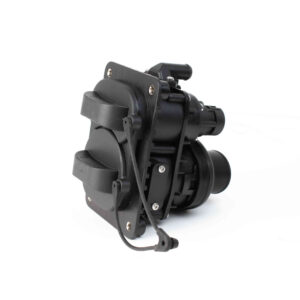

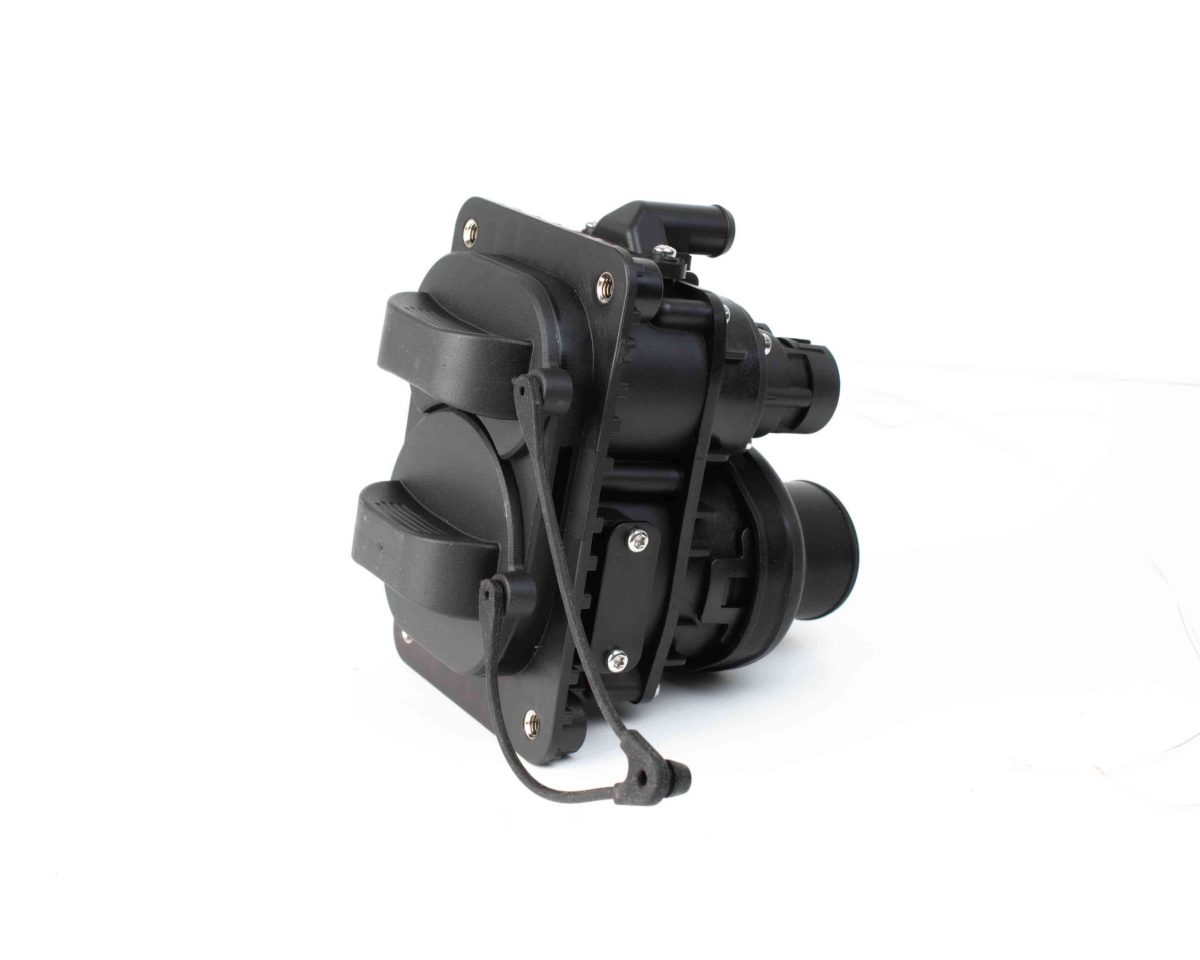

CCS Type 2 Male Socket/Inlet (EV Side)

The Combined Charging System inlet is an industry-standard vehicle connector for convenient charging of Plug-in Hybrid Electric Vehicles (PHEV) and Electric Vehicles. Type 2 inlets and plugs supporting AC & DC Charging standards of Europe/ Australia and increasingly global standards

Availability: In Stock!    Express Delivery Available

SKU: 7003 Categories: , ,
mode of payments

Description

CCS Type 2 Male Socket/Inlet (EV Side)

The Combined Charging System inlet is an industry-standard vehicle connector for convenient charging of Plug-in Hybrid Electric Vehicles (PHEV) and Electric Vehicles. Type 2 inlets and plugs supporting AC & DC Charging standards of Europe/ Australia and increasingly global standards

Features:

1. Meet 62196-3 IEC 2011 SHEET 3-Im standards

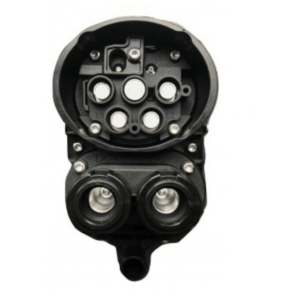

2. Concise appearance, support back installation
3. Contact with drainage structure, improve safety performance
4. Safety pins insulated head design to prevent accidental direct contact with staff
5. Back protection class IP55
6. DC max charging power: 127.5kW
7. AC max charging power: 41.4kW

Electric Performance.

DC input: 125 / 150A / 200A 1000V DC MAX
AC input: 16A 32A 63A / 415VAC MAX
DC Max charging power: 127.5KW
AC Max charging power: 41.5KW
Insulation resistance: >2000MΩ (DC1000V)
Terminal temperature rise.: <50K
Withstand Voltage: 3200V
Contact Resistance: 0.5m Ω Max

Mechanical Properties

Mechanical life: no-load plug in / plug out > 10000 times
Coupled insertion force: >45N<80N
Impact of external force: can afford 1m drop test and 2T vehicle run overpressure
Case Material: Thermoplastic, Flame retardant grade UL94-0
Contact bush: Cooper alloy+ thermoplastic on the top

CE & TUV approved

Environmental performance

Operating temperature:-30°C – +50°C

Additional information

Weight0.6 kg
Phase

Amp
