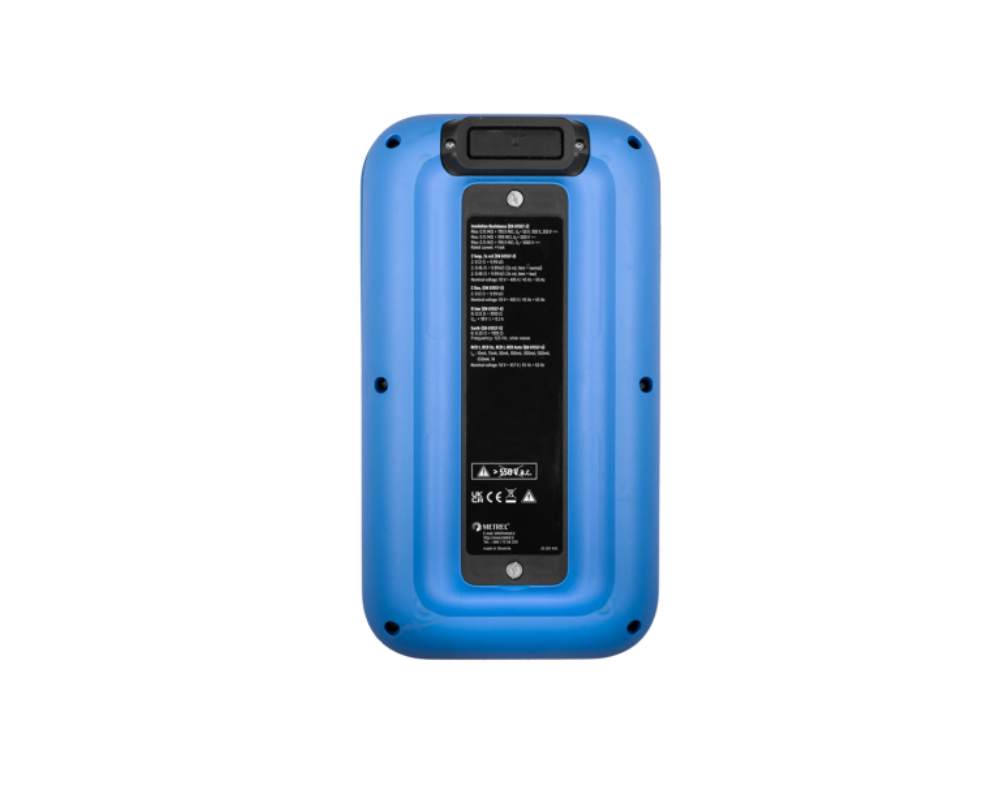

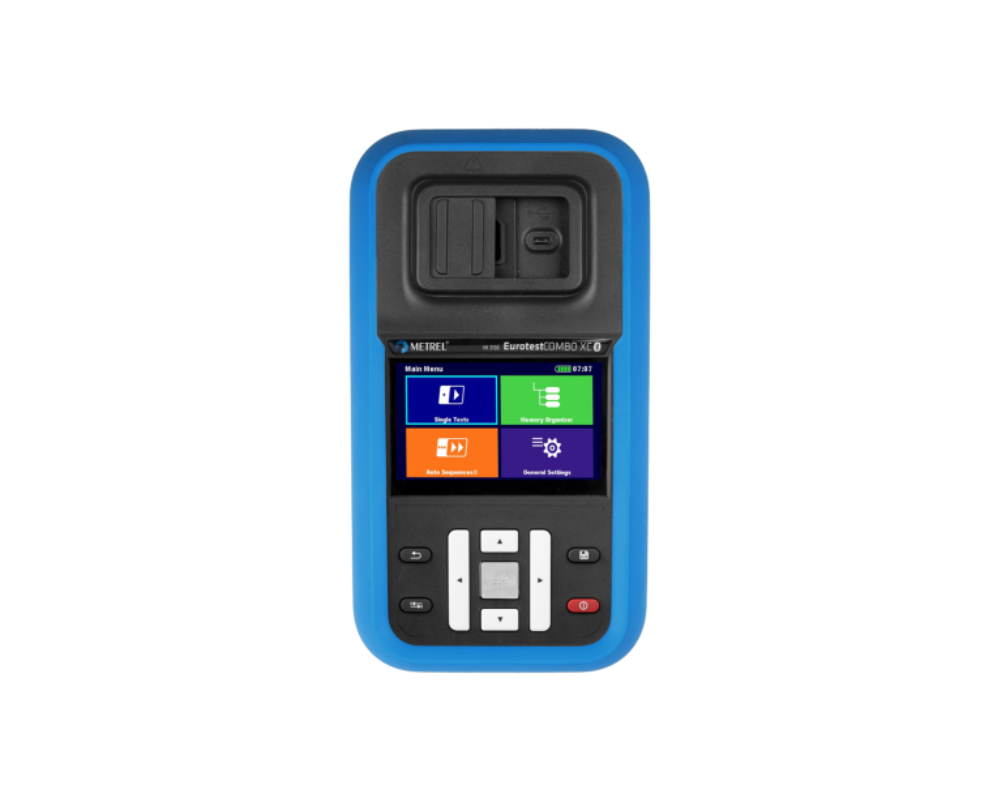

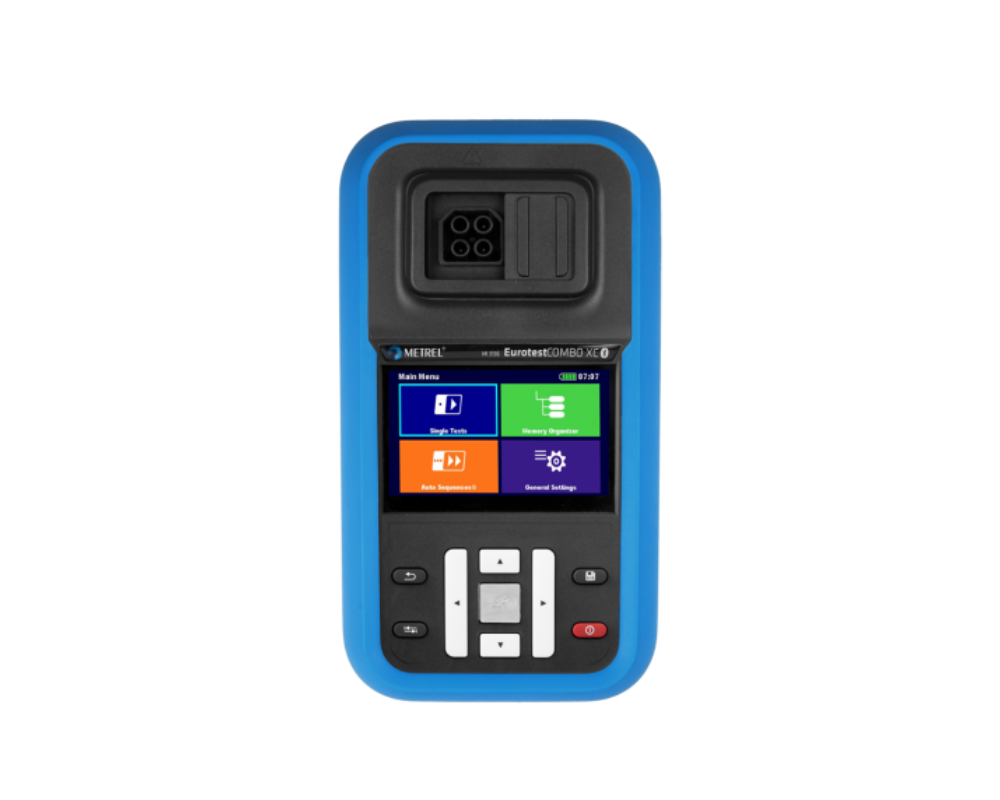

EV Charging Station Tester | Metrel | MI 3136 XC

This electric vehicle charging station testing equipment allows you to service and test EV chargers deployed in public and commercial areas for electrical safety and compliance to AS/NZS 3017 standards.

The Metrel MI 3136 EurotestCOMBO XC Multifunction Installation Tester can be used to check the installation, functionality and safety of EV charging stations and all other aspects of electrical installations. It features EVSE testing support and AUTO SEQUENCE® functionality, enabling the user to check every aspect of EV charging stations at the push of a button.

In addition, the MI 3136 can check TN and TT earthing systems and features four predefined automatic test sequences. It is equipped with a comprehensive range of measurement procedures and tests:

• Insulation resistance with DC test voltage from 50V to 1000V
• Continuity of PE conductors with 200mA DC test current with automatic polarity reversal
• Continuity of PE conductors with 7mA test current without RCD tripping
• Loop impedance and line impedance measurement
• Loop impedance with Trip Lock RCD function
• True-RMS voltage and frequency
• General and selective RCD testing (types AC, A, F, B, B+)
• Earth resistance (3-wire method)
• Automated RCD testing procedure (RCD AUTO)

INCLUDES:

• Instrument MI 3136 EurotestCOMBO XC
• 1x Test probe, Black (A 1014)
• 1x Test probe, Blue (A 1015)
• 1x Test probe, Green (A 1062)
• 1x Crocodile clip, Black (A 1013)
• 1x Crocodile clip, Blue (A 1310)
• 1x Crocodile clip, Green (A 1309)
• 1x Test cable, BLK/GRN/BLU, 1.5m, 0.75mm² (A 1193)
• 1x Test cable, 1.5m, 0.75mm² (A 1053)
• 1x USB cable, Type C (A 1857)
• Calibration certificate
• Instruction manual
• Metrel ES Manager BASIC Licence

Note: EVSE AUTO SEQUENCE® functionality requires the optional A 1532 XA EVSE Adapter (sold separately).

APPLICATION:

On-site testing of EVSE charging station installation. Initial and periodic testing of private, semi-private and public EV charging stations.

MEASURING FUNCTION:

• Insulation resistance with DC test voltage from 50V to 1000V (test voltages: 50V, 100V, 250V, 500V, 1000V)
• Continuity of PE conductors with 200mA DC test current with automatic polarity reversal
• Continuity of PE conductors with 7mA test current without RCD tripping
• 2-wire and 3-wire loop impedance (L-PE) measurement with Trip Lock RCD function
• 2-wire and 3-wire line impedance (L-L, L-N) measurement
• Loop impedance without RCD tripping (Zs RCD function)
• TRMS voltage measurement: 0–550V
• TRMS frequency measurement: 14–499.9Hz
• General and selective RCD testing (types AC, A, F, B, B+)
• Automated RCD testing procedure (RCD AUTO) with separate RCD type and current shape selection
• RCD trip time measurement: 0–10 seconds
• RCD ramp current measurement: 0.1mA–1.1A
• Earth resistance: 3-wire method (0.00Ω–9999Ω)
• Real-time monitoring of all 3 voltages
• Insulation resistance readings above 200MΩ at 1000V test voltage are indicative only

KEY FEATURES:

• 5.2Ah Li-ion battery with built-in charger
• Universal USB Type-C connector for fast charging (15V, 3A, 45W) and PC communication
• 4.3″ TFT high-resolution colour touchscreen for fast test navigation and data storage
• Predefined automatic tests: Auto TT, Auto TT RCD, Auto TN, Auto TN RCD
• Programmable AUTO SEQUENCE® profiles
• Separate RCD type and current shape selection in RCD measurements
• Automated RCD testing procedure (RCD AUTO)
• Built-in help screens for on-site referencing
• Built-in fuse tables for automatic evaluation of line/loop impedance results
• Real-time monitoring of all 3 voltages
• Automatic polarity reversal on continuity test
• Measurement filtering by selected area group
• Bluetooth® connectivity for Metrel Cloud integration
• Wi-Fi connectivity for Metrel Cloud integration (available with MESM PRO and Metrel Cloud licences)
• Metrel Cloud Storage and Cloud App compatible (available with Metrel Cloud licences)
• PC SW Metrel ES Manager compatible for test structures and reporting (BASIC Licence included; PRO Licence required for full reporting and data archiving)
