Ocular Satellite DC Charger – Liquid Cooling Dispenser

The Ocular Satellite DC Liquid Cooling Dispenser is an ultra-high-power charging solution engineered for demanding EV applications. Designed to operate with the Ocular Satellite Base Station system, it delivers up to 600kW of charging power using liquid-cooled cables to support higher current delivery and faster charging speeds.

With a 7-inch LCD touchscreen, users can easily monitor charging status and session information in real time. The unit supports multiple authentication methods including app, RFID, QR code, and optional credit card payment, providing flexibility across different deployment environments.

Its robust IP55-rated enclosure and floor-standing design make it suitable for outdoor installations, while its high-current capability makes it ideal for heavy vehicle charging and future ultra-fast charging networks.

Ultra-High Power Charging:

Delivers up to 600kW output, enabling significantly faster charging for heavy vehicles and next-generation EVs.

Liquid-Cooled Technology :

Liquid-cooled cables allow higher current delivery (up to 600A) while maintaining safe operating temperatures and improved cable handling.

Smart Satellite System Integration:

Works with the Ocular Satellite Base Station to dynamically distribute power across all connected chargers, ensuring optimal efficiency and utilisation.

Simple To Use, Easy to Deploy:

Users can initiate charging via app, RFID, QR code, or optional payment terminal, with real-time feedback displayed on the screen.

Designed for Heavy-Duty Applications:

Ideal for electric trucks, buses, and high-throughput charging environments where maximum performance is required.

Connectivity:

Ethernet connectivity for stable communication with the central system
Fully compatible with OCPP 1.6J and OCPP 2.0.1
Supports ISO15118 (Plug & Charge)

Keep this in mind when installing:

This unit is part of a centralised DC charging system and must be installed alongside an Ocular Satellite Base Station. Installation must be carried out by a licensed and qualified electrician in accordance with Australian standards.

Input & Output:

Output voltage – 150–1000V DC
Output power – 500kW (up to 600kW max)
Output current – 500A (up to 600A max)
Charging interface – CCS2
Cable length – 5m

Protection:

Over current protection
Under voltage protection
Surge protection
Short circuit protection
Leakage protection
Over temperature protection

Function and Accessory:

LCD – 7 inch touchscreen
LED status indicator
App / RFID / QR / Credit Card (Optional)
OTA firmware updates

Working Environment:

Protection degree – IP55
Environment temperature – -30 – 55°C
Relative humidity – up to 95%
Cooling – Liquid-cooled cable with air-cooled system

Mechanical:

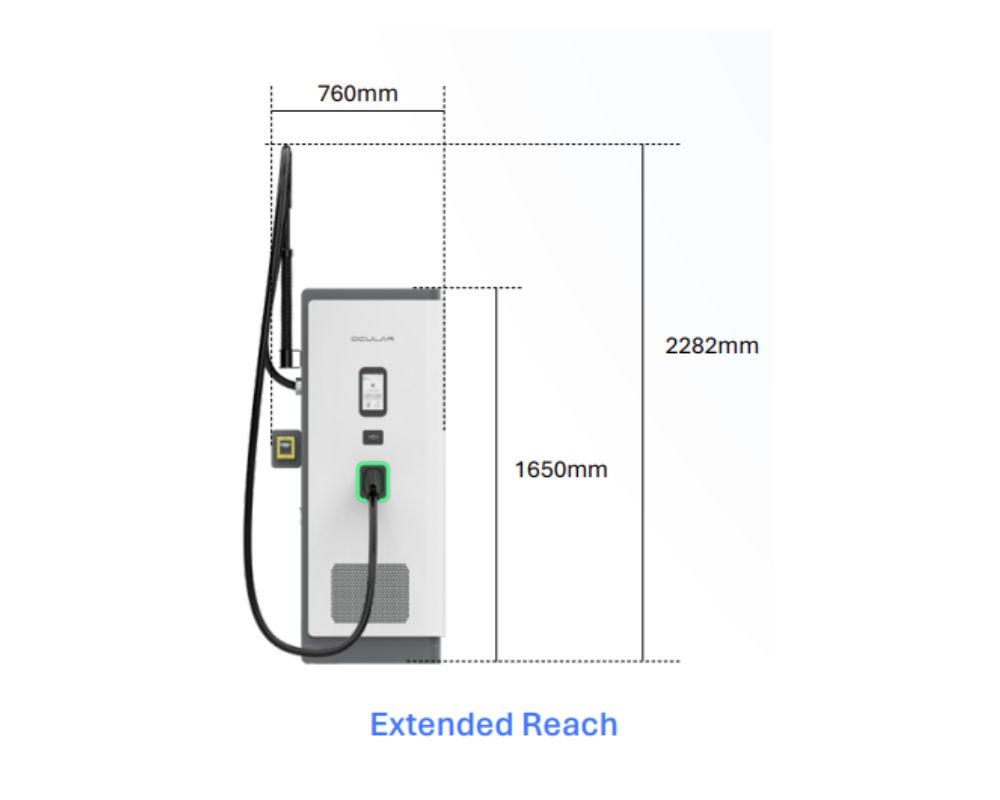

Dimensions (H/W/D) – 2282 x 760 x 238 mm (standard)
Alternative – 2282 x 814 x 238 mm
Mounting – Floor standing
