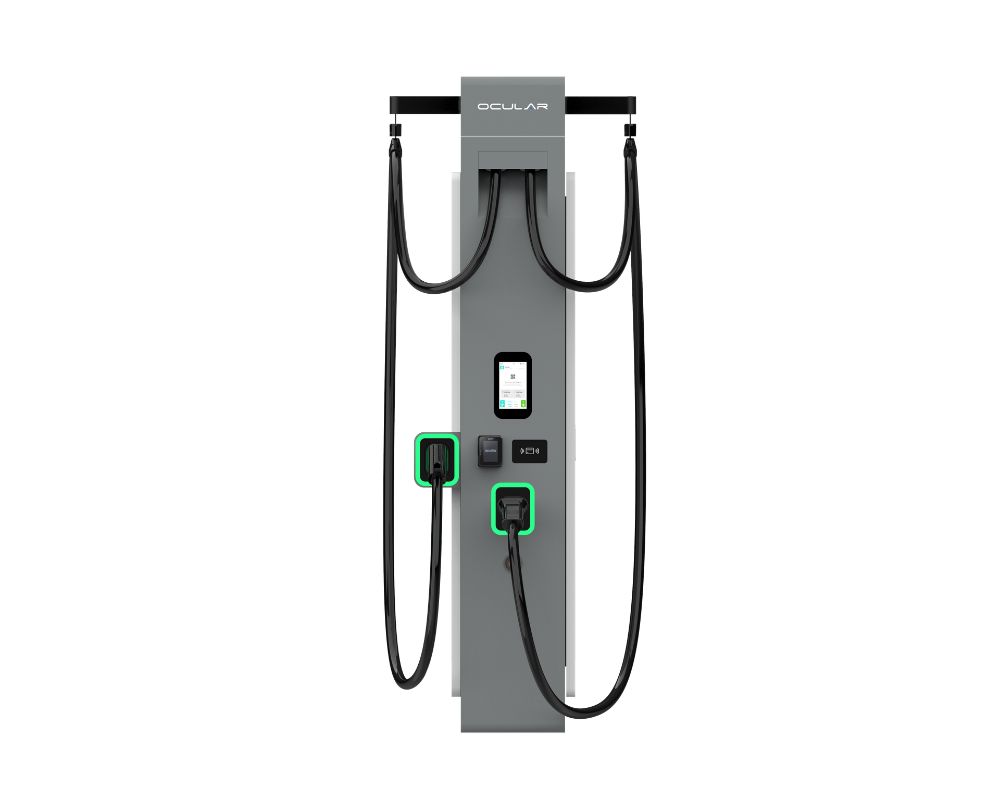

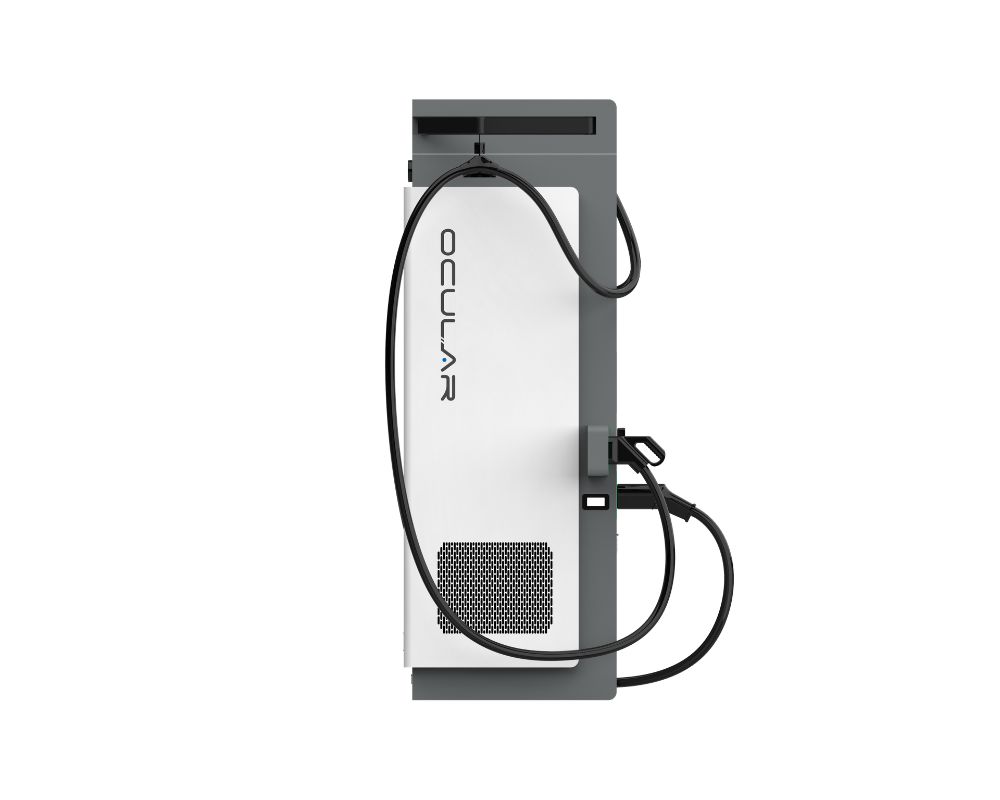

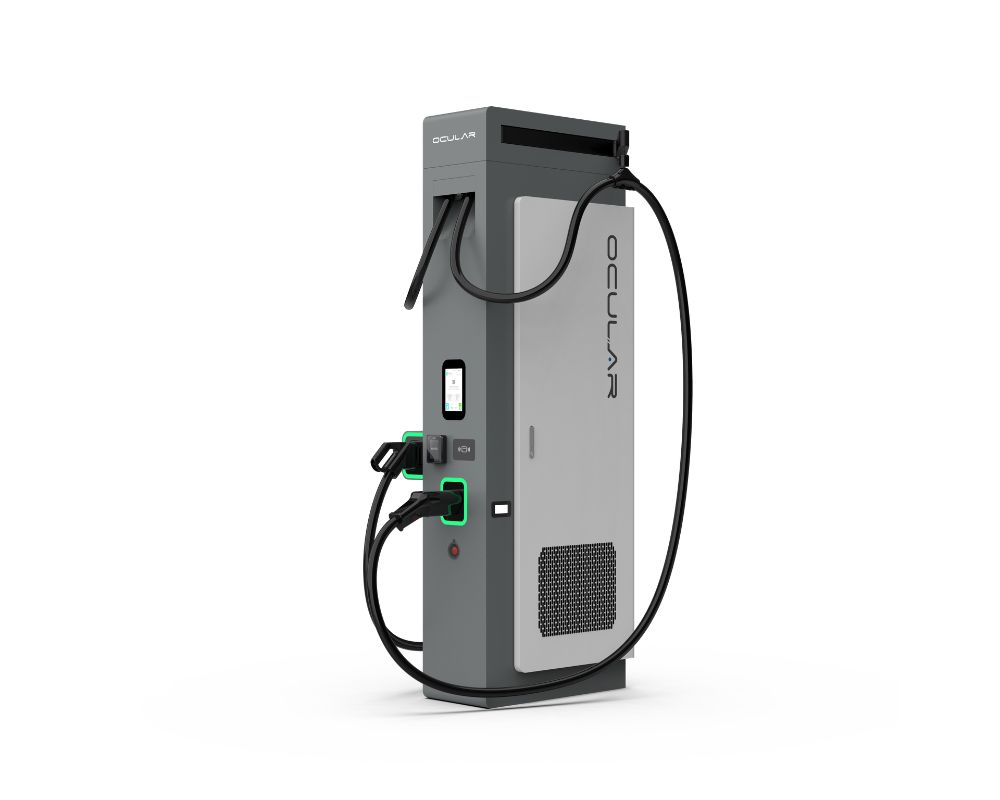

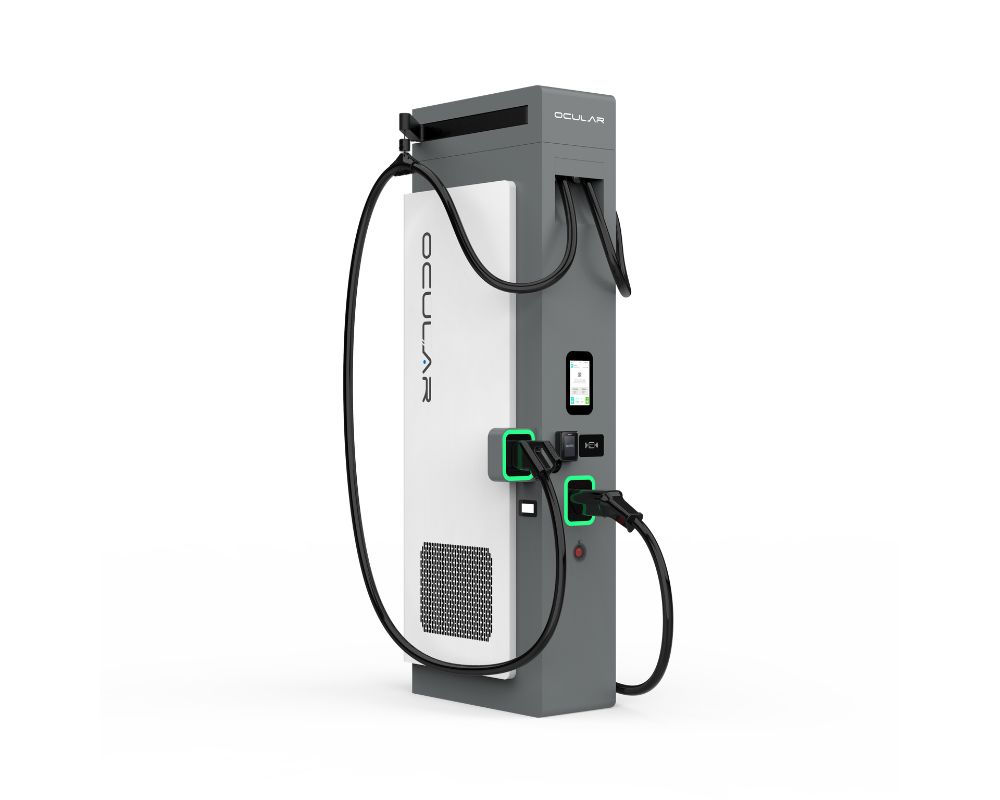

The Ocular Satellite DC Air Cooling Dual Dispenser is a high-performance dual-output charging solution designed to maximise utilisation at busy charging locations. Integrated with the Ocular Satellite Base Station system, it allows two vehicles to charging simultaneously while dynamically distributing available power between both outputs.
Featuring a 7-inch LCD touchscreen, users can clearly monitor charging status, session data, and system feedback in real time. The unit supports multiple authentication methods including app, RFID, QR code, and optional credit card payment, ensuring a seamless and flexible user experience.
Built with a durable IP55-rated enclosure and a compact floor-standing design, the dispenser is suitable for outdoor environments and high-use applications.
Dual Vehicle Charging:
Charge two vehicles at the same time with independent outputs, each configurable between 250kW and 400kW.
High Power Fast Charging:
Supports ultra-fast DC charging with up to 400kW per connector, making it ideal for high-demand charging locations.
Smart Satellite System Integration:
Works with the Ocular Satellite Base Station to dynamically allocate power across both outputs and multiple chargers, maximising efficiency and reducing infrastructure costs.
Simple To Use, Easy to Deploy:
Users can easily initiate charging via app, RFID, QR code, or optional payment terminal, with real-time feedback displayed on the screen.
Flexible Connector Options:
Supports dual CCS2 connectors as standard, with optional CCS1, CHAdeMO, and GB/T configurations.
Connectivity:
Ethernet connectivity for stable communication with the central system
Fully compatible with OCPP 1.6J and OCPP 2.0.1
Supports ISO15118 (Plug & Charge)
Keep this in mind when installing:
This unit is part of a centralised DC charging system and must be installed alongside an Ocular Satellite Base Station. Installation must be carried out by a licensed and qualified electrician in accordance with Australian standards.
Input & Output:
Output voltage – 150–1000V DC
Output power – 250kW / 300kW / 375kW / 400kW (per output)
Number of outputs – 2
Output current – 250A / 300A / 375A / 400A (per output)
Charging interface – Dual CCS2 (others optional)
Cable length – 5m (per connector)
Protection:
Over current protection
Under voltage protection
Surge protection
Short circuit protection
Leakage protection
Over temperature protection
Function and Accessory:
LCD – 7 inch touchscreen
LED status indicator
App / RFID / QR / Credit Card (Optional)
OTA firmware updates
Working environment:
Protection degree – IP55
Environment temperature – -30 – 55°C
Relative humidity – up to 95%
Cooling – Air-cooled
Mechanical:
Dimensions (H/W/D) – 2200 x 415 x 780 mm
Mounting – Floor standing
