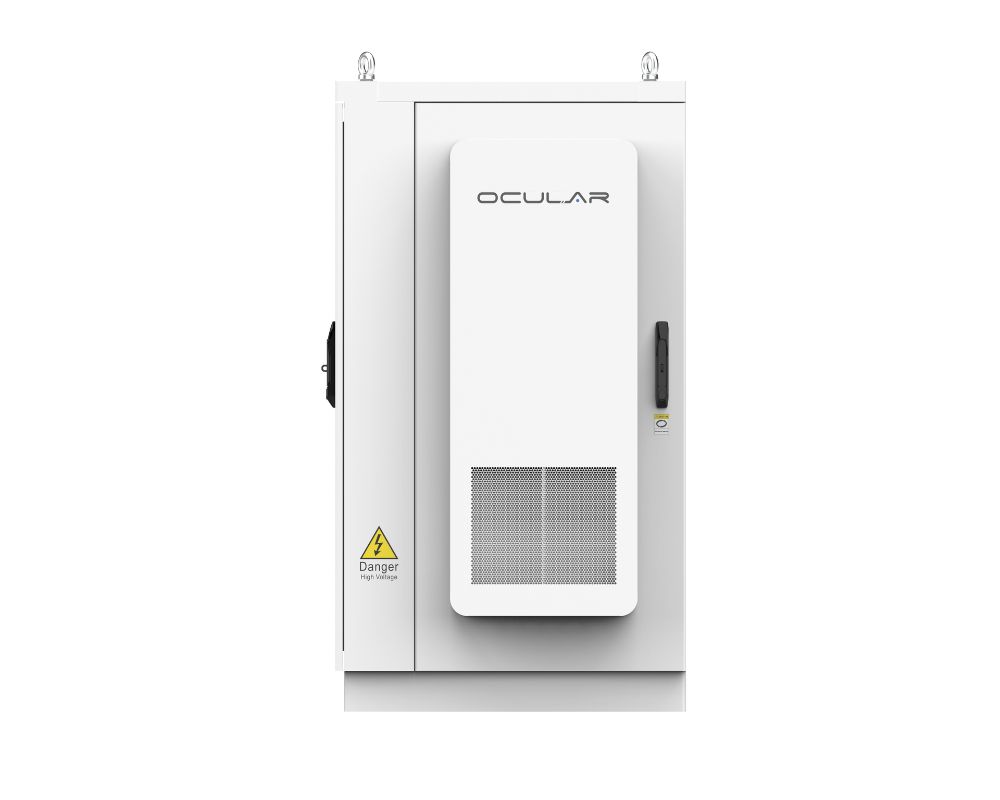

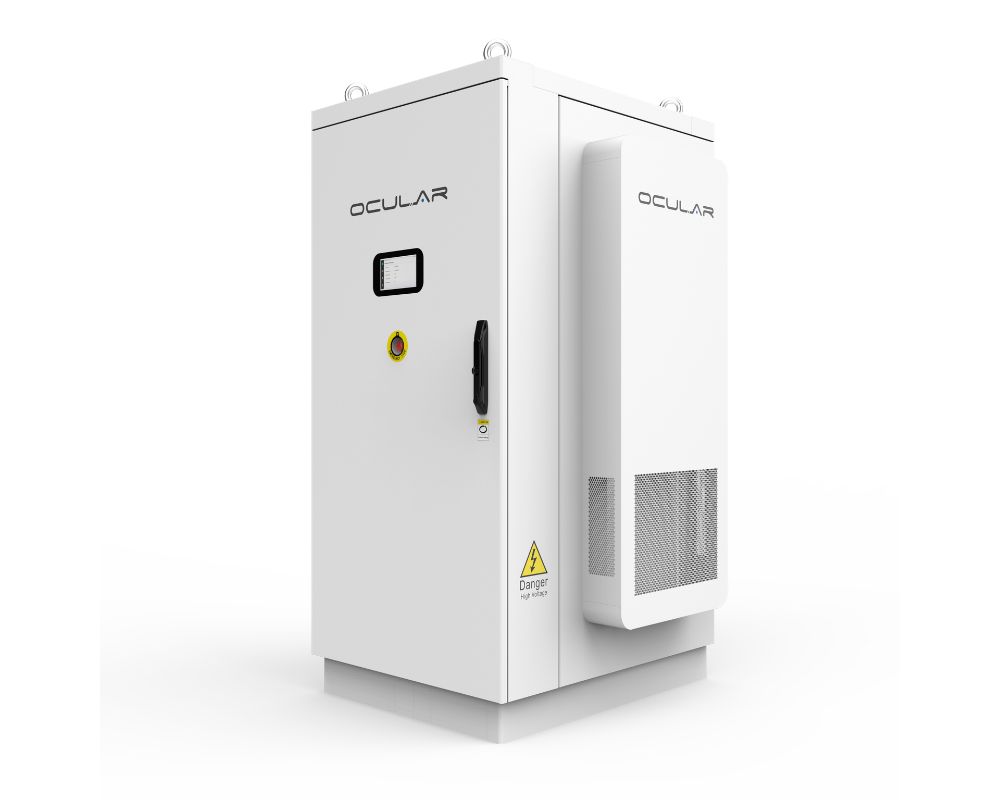

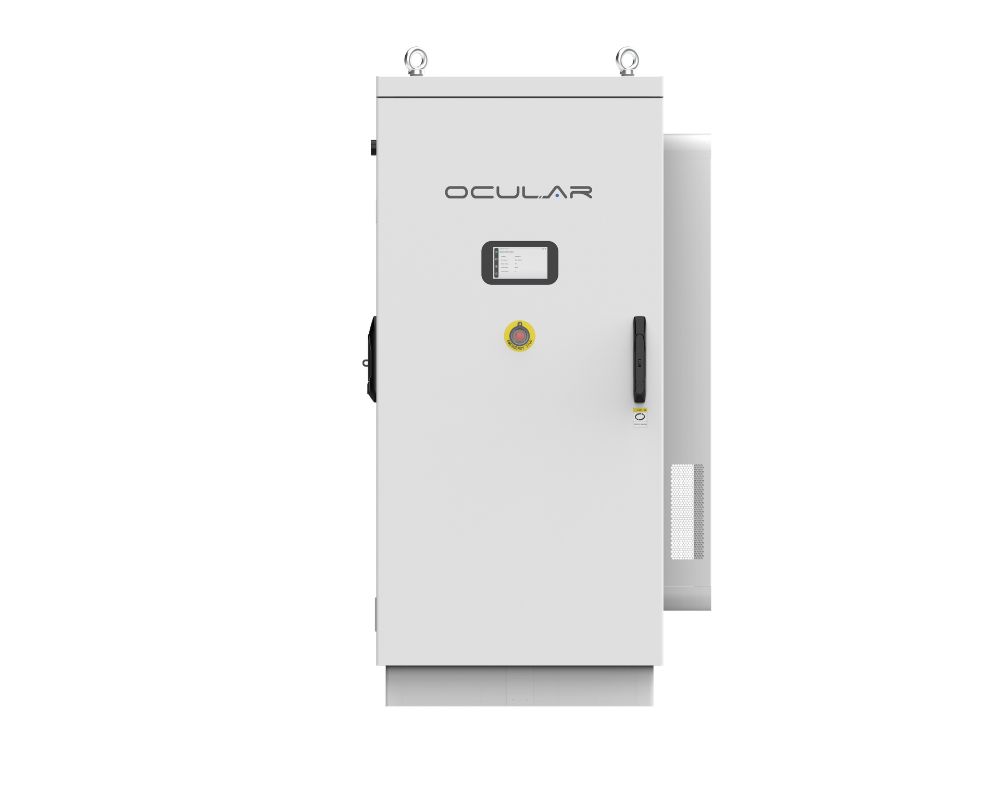

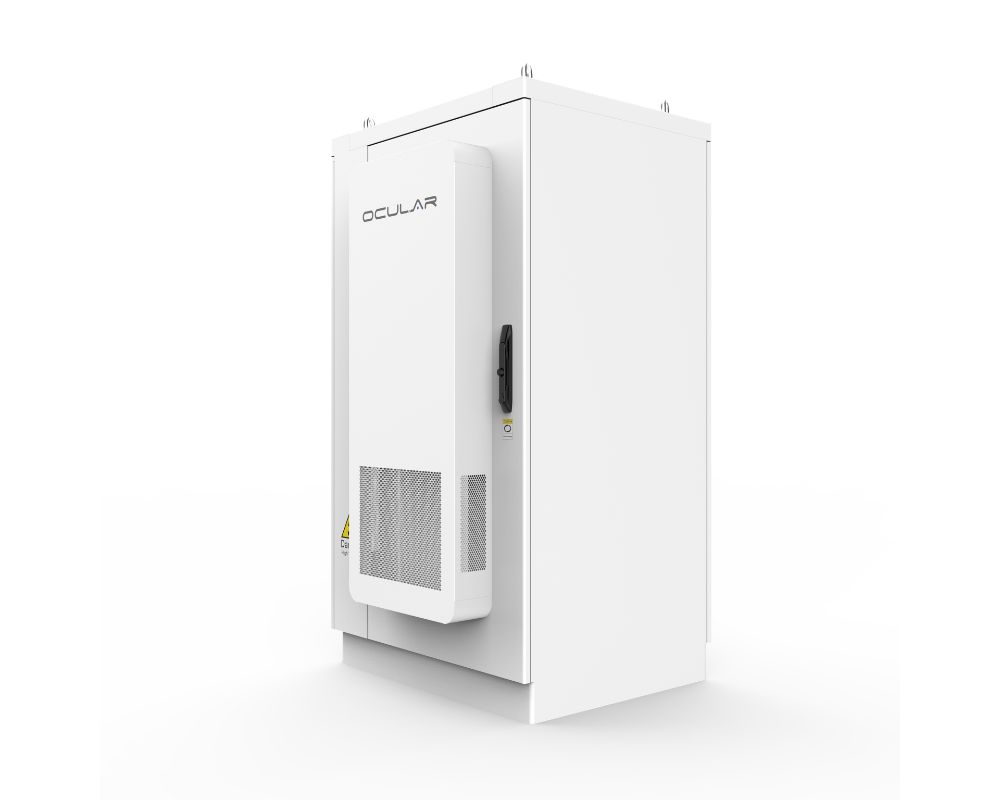

Ocular Satellite DC Charger – 480kW Base Station

The Ocular Satellite DC Charger 480kW Base Station is the core power unit of the Satellite charging system, designed to deliver high-performance DC power across multiple connected dispensers. Using modular 40kW power units, the system enables flexible deployment and future scalability without requiring major infrastructure upgrades.

Through intelligent load distribution, the base station dynamically allocations power to active charging sessions, maximising utilisation while reducing wasted capacity. This makes it ideal for public charging hubs, fleet depots, and commercial environments.

Built with a robust IP55- rated enclosure and independent air-duct cooling, the unit is designed for reliable operation in demanding outdoor conditions.

Scalable Power Architecture:

Built using 40kW modular power units, allowing flexible expansion and future-proofed deployments.

Smart Power Distribution:

Dynamically allocates power across multiple satellite dispensers to maximise efficiency and utilisation.

Supports Multiple Chargers:

Capable of supporting up to 12 charging outputs depending on configuration.

High Efficiency Performance:

Delivers ≥95% efficiency with stable power factor and low harmonic distortion.

Reliable and Durable Design:

IP55-rated enclosure with independent air-duct cooling for protection against dust, humidity, and harsh environments.

Connectivity:

Ethernet and 4G connectivity
Fully compatible with OCPP 1.6J and OCPP 2.0.1
Supports ISO15118 (Plug & Charge)

Keep this in mind when installing:

This unit forms the central power system of the Satellite charging network and must be installed by a licensed electrician. Site capacity and load management should be assessed prior to installation.

Input & Output:

Input voltage – 3-phase 400VAC ±15%
Input frequency – 50/60Hz
Total output power – 480kW
Minimum adjustable power – 40kW
Number of outputs – Up to 12 (configuration dependent)

Protection:

Over current protection
Under voltage protection
Surge protection
Short circuit protection
Over temperature protection
Harmonic control

Function and Accessory:

Modular 40kW power units
Independent air-duct cooling system
Dynamic load management
Remote monitoring capability

Working environment:

Protection degree – IP55
Environment temperature – -30 – 55°C
Storage temperature – -30 – 80°C
Operating altitude – ≤2000m

Mechanical:

Dimensions (H/W/D) – 1937 x 1029 x 985 mm
Mounting – Floor standing
