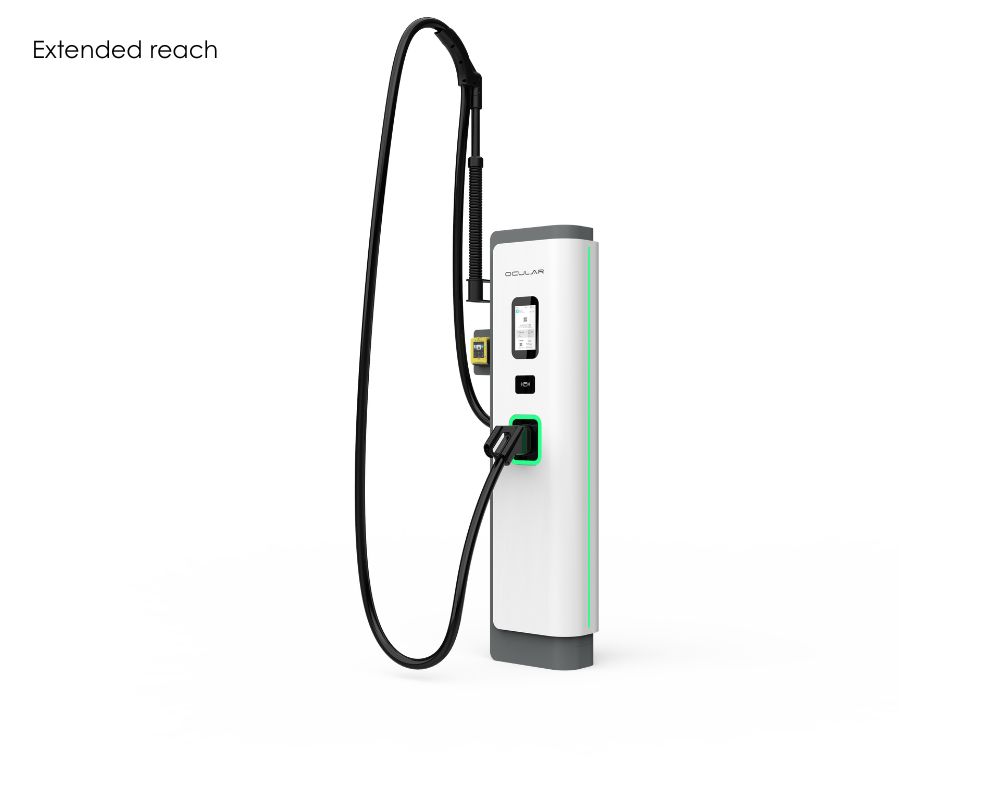

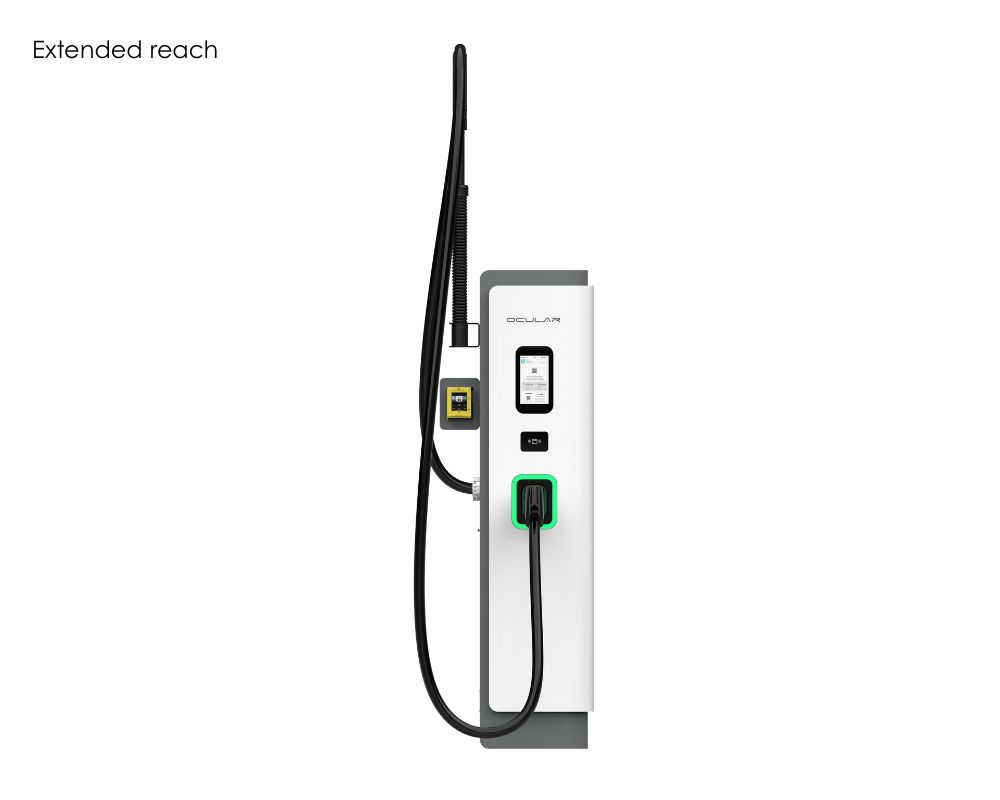

Ocular Satellite DC Charger – Air Cooling Dispenser 300kW

The Ocular Satellite DC Air Cooling Dispenser is a high-performance DC fast charging unit designed to operate as part of the Ocular Satellite charging system. Delivering up to 400kW of power, it provides fast, reliable charging for public, fleet, and commercial environments.

With a 7-inch LCD touchscreen, users can clearly view charging status, session information, and system feedback in real time. The unit supports multiple authentication methods including app, RFID, and QR code, ensuring a seamless user experience across different use cases.

The dispenser is built with a robust IP55-rated enclosure, making it suitable for outdoor installations. Its compact, floor-standing design allows flexible placement across sites, while maintaining durability in harsh Australia conditions.

High Power Fast Charging:

With output options ranging from 250kW to 300kW, the Ocular Air Cooling Dispenser enables ultra-fast DC charging suitable for both passenger and commercial EVs.

Smart Satellite System Integration:

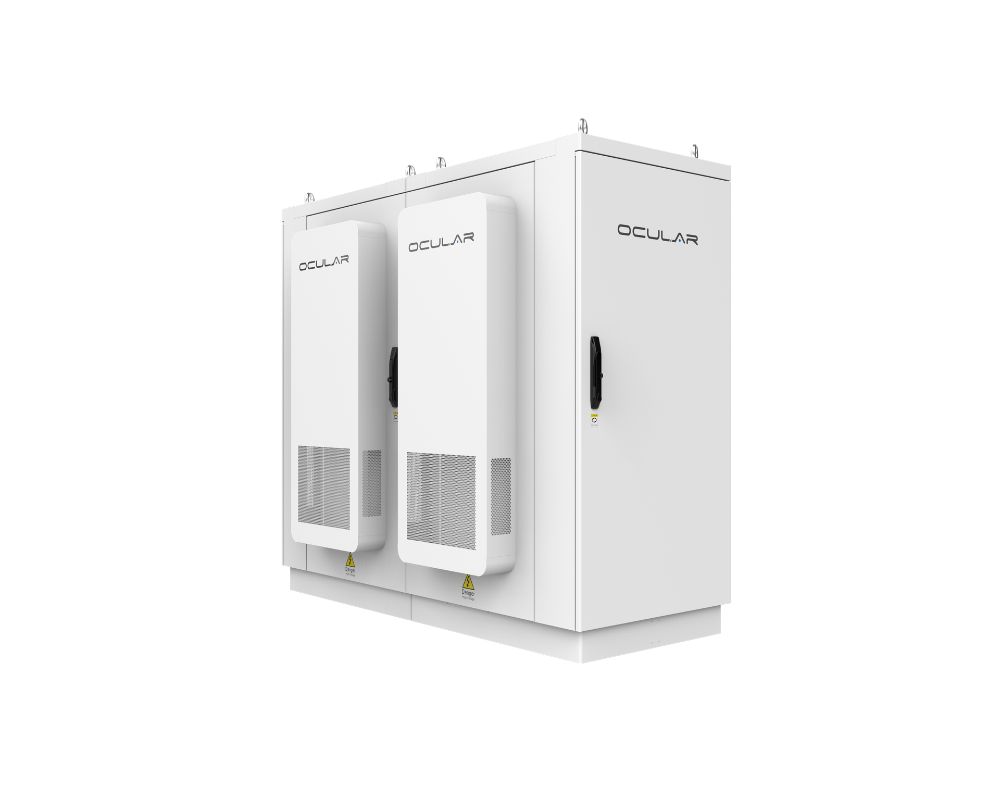

Designed to work with the Ocular Satellite Base Station, the dispenser receives dynamically allocated power, ensuring optimal utilisation across multiple charging points and reducing infrastructure costs.

Simple to Use, Easy to Deploy:

The dispenser integrates seamlessly with the central system and requires minimal on-site configuration. Once installed, users can initiate charging via app, RFID, or QR code with clear real-time feedback on the display.

Flexible Connector Options:

Supports CCS2 as standard, with optimal CCS1, CHAdeMO, and GB/T compatibility depending on project requirements.

Reliable and Durable Design:

Featuring independent air cooling and an IP55-rated enclosure, the unit is designed to withstand demanding outdoor environments while maintaining high operational efficiency.

Connectivity:

Ethernet connectivity for stable communication with the central system

Fully compatible with OCPP 1.6J and OCPP 2.0.1

Supports ISO15118 (Plug & Charge)

Keep this in mind when installing:

This unit is part of a centralised DC charging system and must be installed alongside an Ocular Satellite Base Station. Installation must be carried out by a licensed and qualified electrician in accordance with Australian standards.

Input & Output:

Output voltage – 150-1000V DC

Output power – 250kW/ 300kW

Output current – 250A/ 300A

Charging interface – CCS2 (others optional)

Cable length – 5m

Protection:

Over current protection

Under voltage protection

Surge protection

Short circuit protection

Leakage protection

Over temperature protection

Function and Accessory:

LCD – 7 inch touchscreen

LED status indicator

App/ RFID/ QR Authentication

OTA firmware updates

Working environment:

Protection degree – IP55

Environment temperature – -30 – 55°C

Relative humidity – up to 95%

Cooling – Air-cooled

Mechanical:

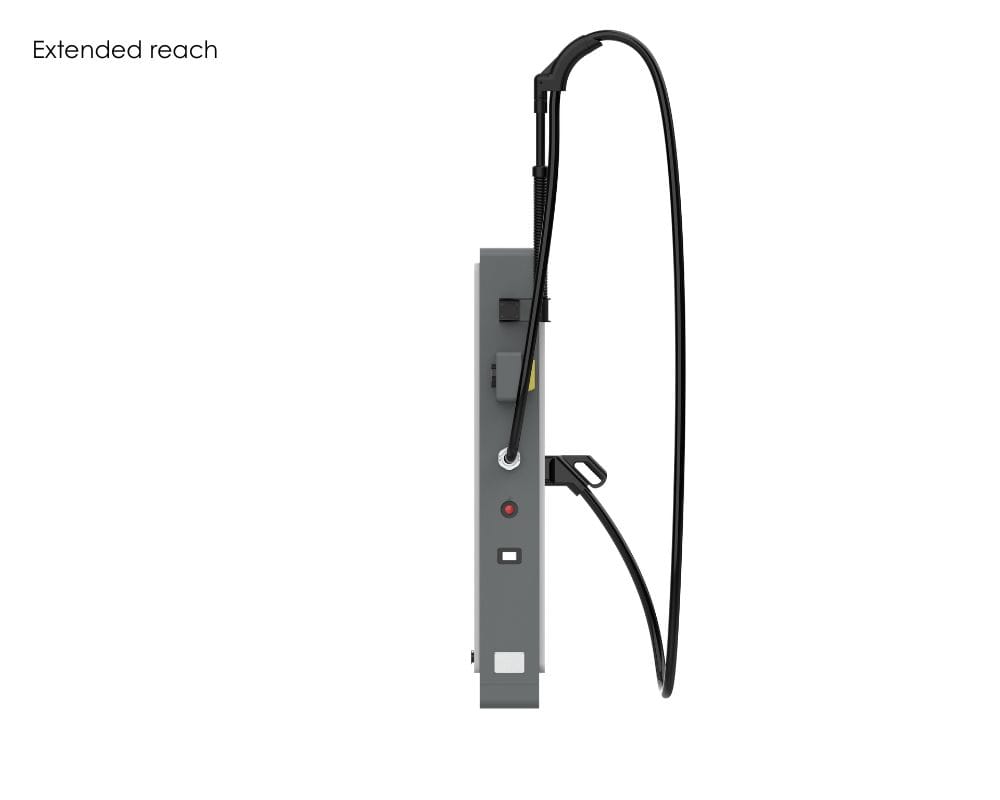

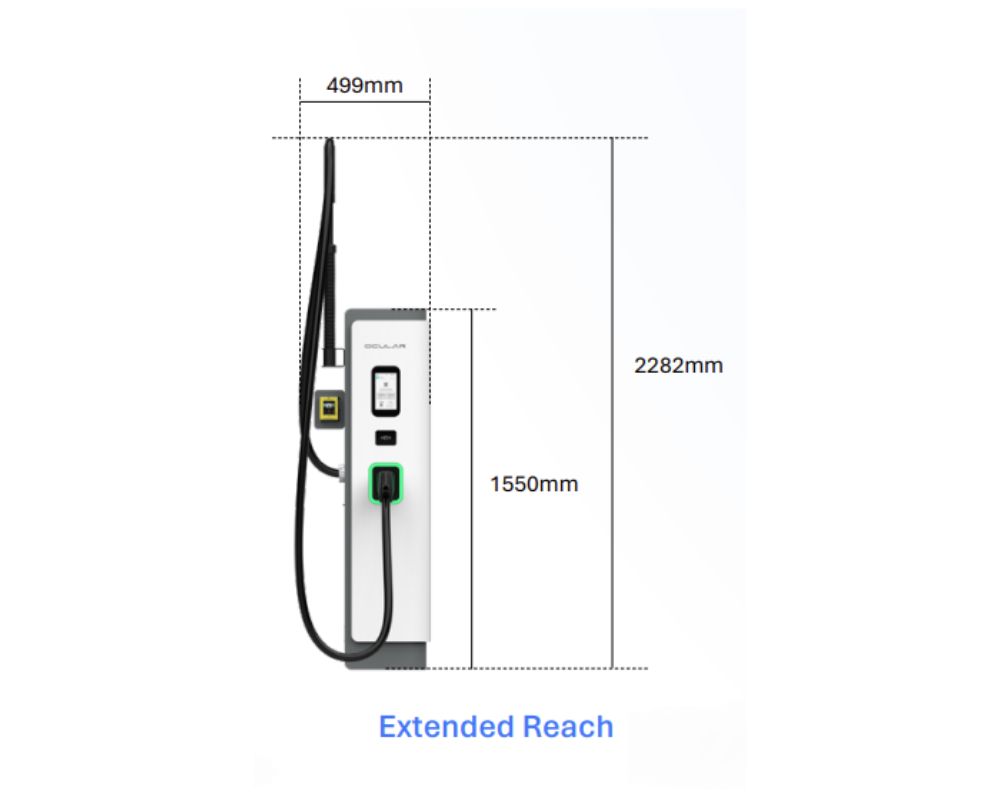

Dimensions (H/W/D) – 2282 x 499 x 238 mm (Extended Reach)

Alternative size – 2005 x 553 x 238 mm (Low Height)

Mounting – Floor standing
