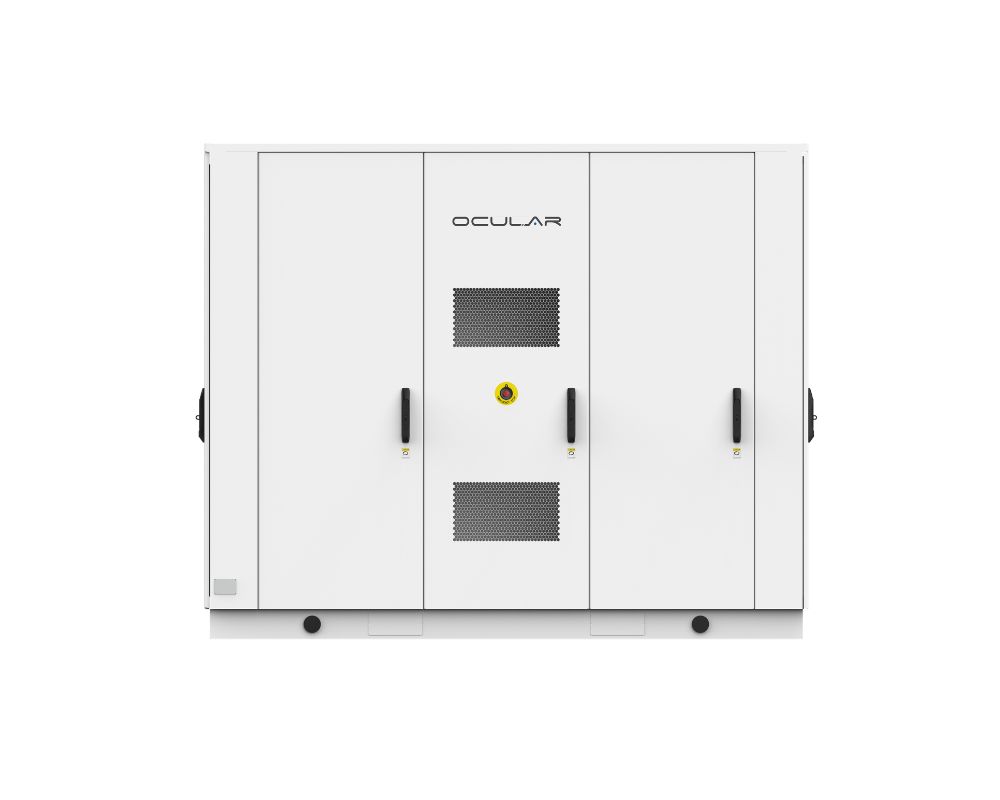

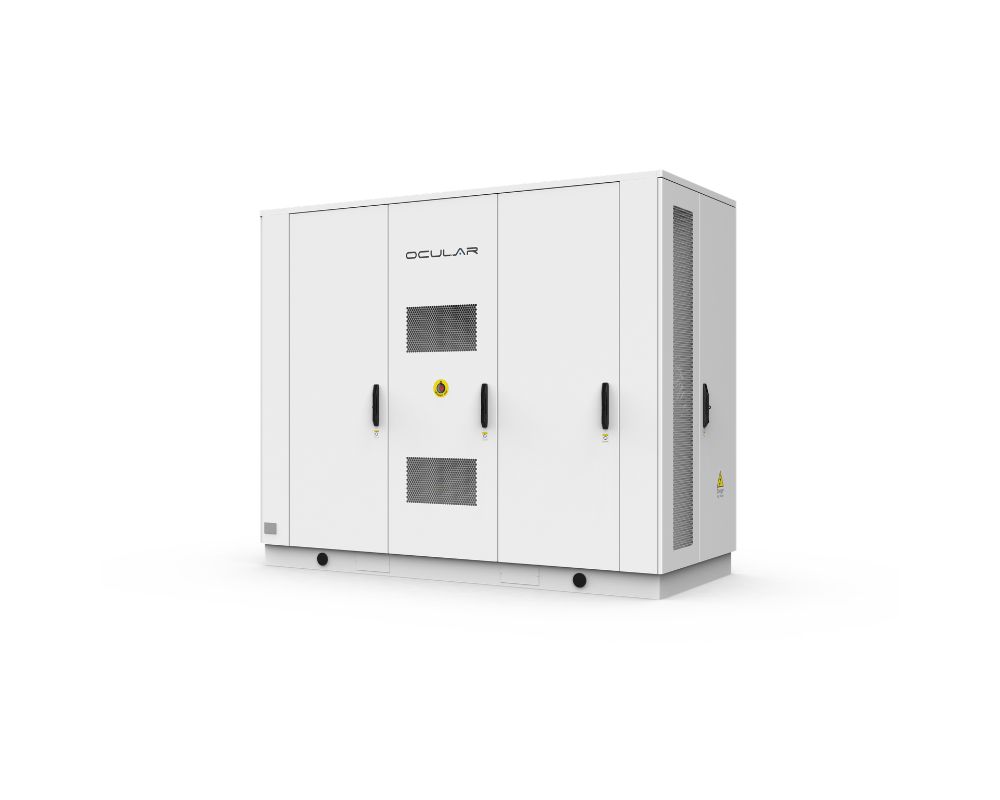

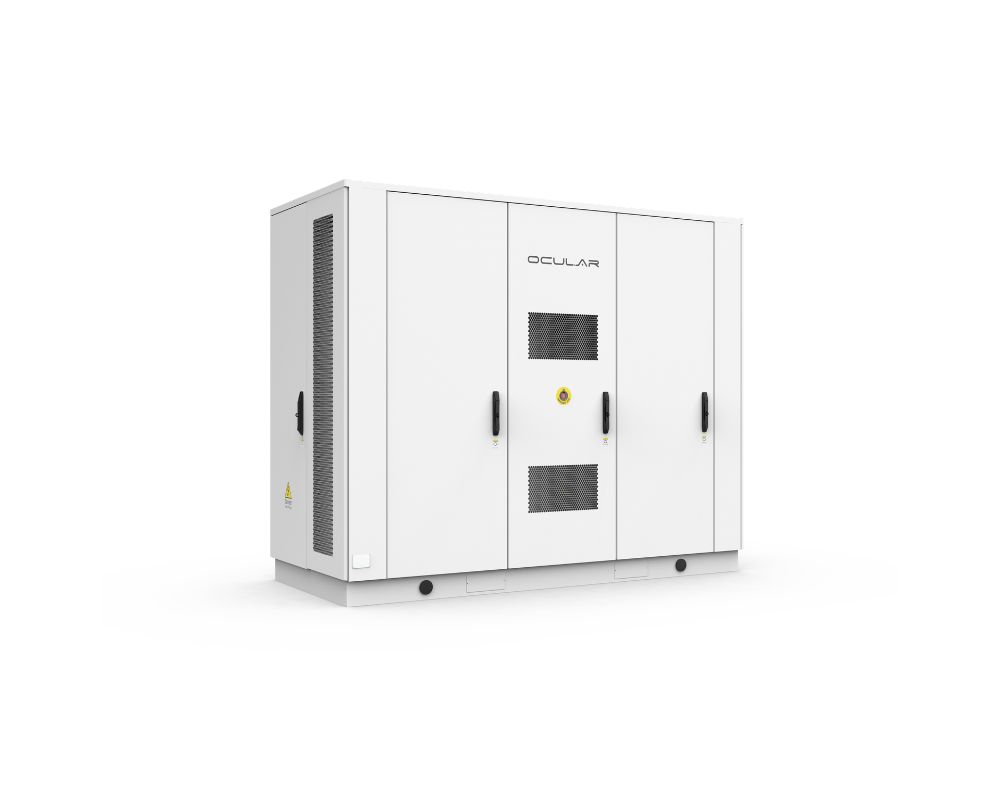

Ocular Satellite DC Charger – 1600kW Base Station

The Ocular Satellite DC Charger 1600kW Base Station is an ultra-high-capacity central power unit designed for demanding EV charging applications. Engineered with modular 40kW power units, it supports large-scale deployments while maintaining flexibility and efficiency.

The system intelligently distributes power across connected satellite dispensers, ensuring optimal performance and utilisation in high-demand environments such as heavy vehicle depots and ultra-fast public charging sites.

With an IP55 and IK10-rated enclosure and advanced cooling system, the unit is built for durability, reliability, and long-term operation.

Ultra-High Power Architecture:

Supports up to 1600kW total output using modular 40kW power units.

Smart Power Distribution:

Dynamic allocation of power across multiple dispensers ensures maximum utilisation and efficiency.

Built for Large-Scale Deployments:

Supports up to 20 charging outputs depending on configuration.

High Efficiency Performance:

≥95% efficiency with stable power delivery and low harmonic distortion.

Robust and Durable Design:

IP55 and IK10-rated enclosure with independent air-duct cooling for demanding environments.

Connectivity:

Ethernet and 4G connectivity
Fully compatible with OCPP 1.6J and OCPP 2.0.1
Supports ISO15118 (Plug & Charge)

Keep this in mind when installing:

This unit forms the central power system of the Satellite charging network and must be installed by a licensed electrician. Site capacity and load management should be assessed prior to installation.

Input & Output:

Input voltage – 3-phase 400VAC ±15% (4 routes)
Input frequency – 50/60Hz
Total output power – 1600kW
Minimum adjustable power – 80kW
Number of outputs – Up to 20 (configuration dependent)

Protection:

Over current protection
Under voltage protection
Surge protection
Short circuit protection
Over temperature protection
Harmonic control

Function and Accessory:

Modular 40kW power units
Independent air-duct cooling system
Dynamic load management
Remote monitoring capability

Working environment:

Protection degree – IP55 (IK10 for enclosure)
Environment temperature – -30 – 55°C
Storage temperature – -30 – 80°C
Operating altitude – ≤2000m

Mechanical:

Dimensions (H/W/D) – 2300 x 2800 x 1200 mm
Mounting – Floor standing
