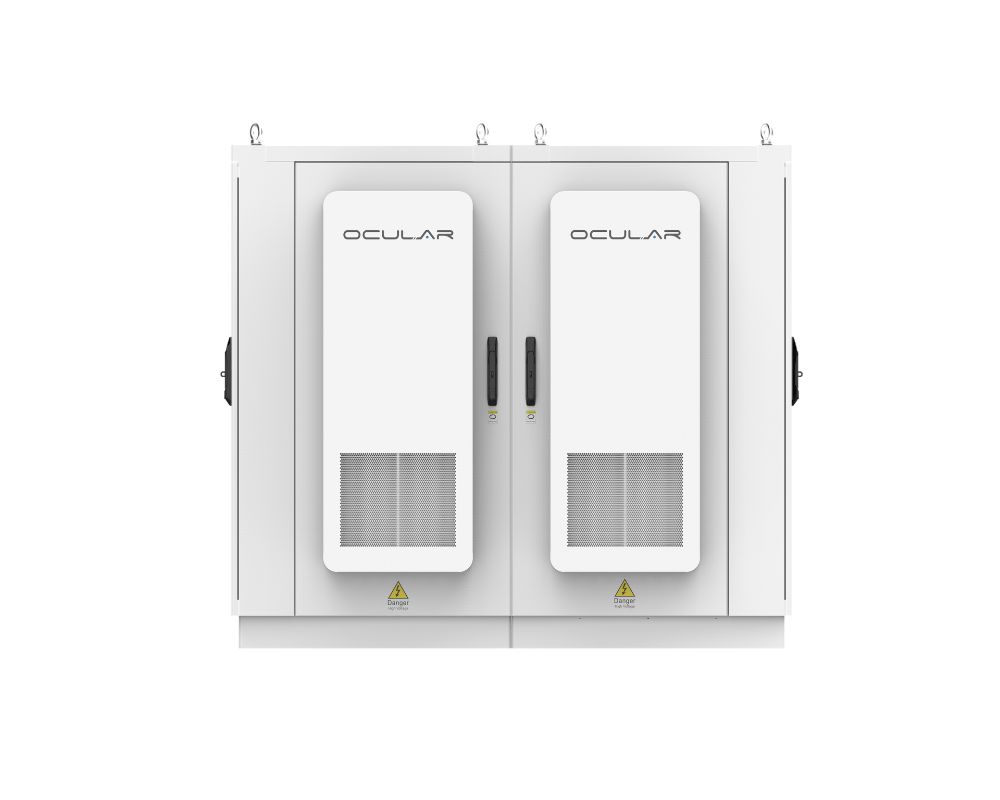

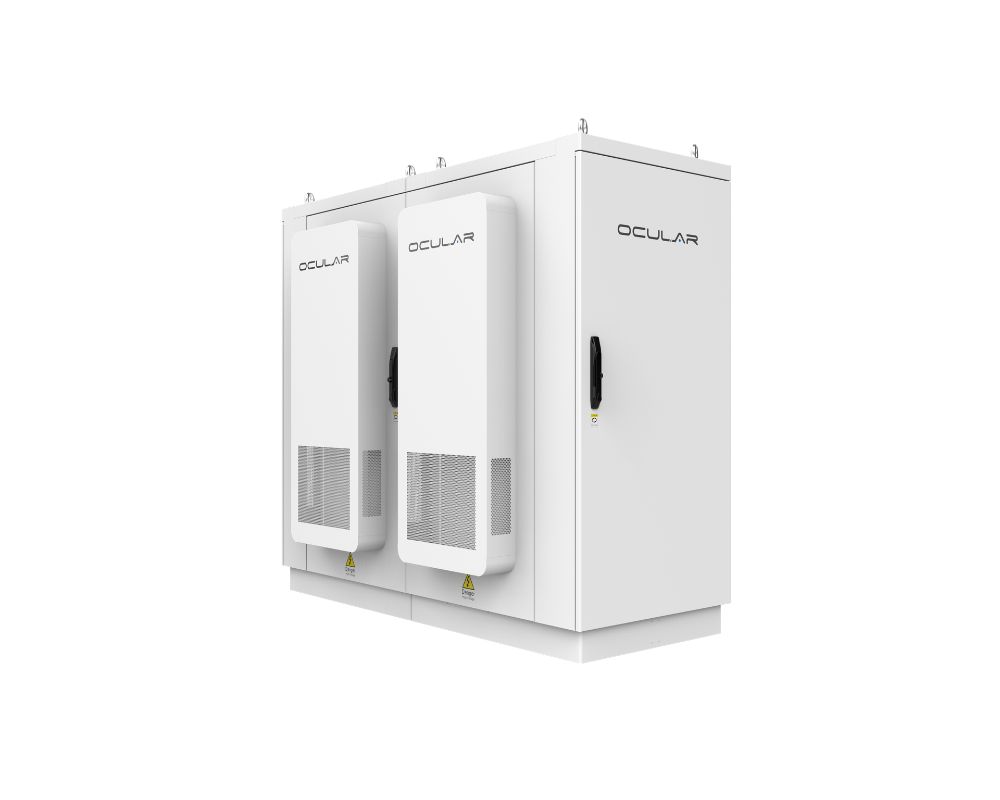

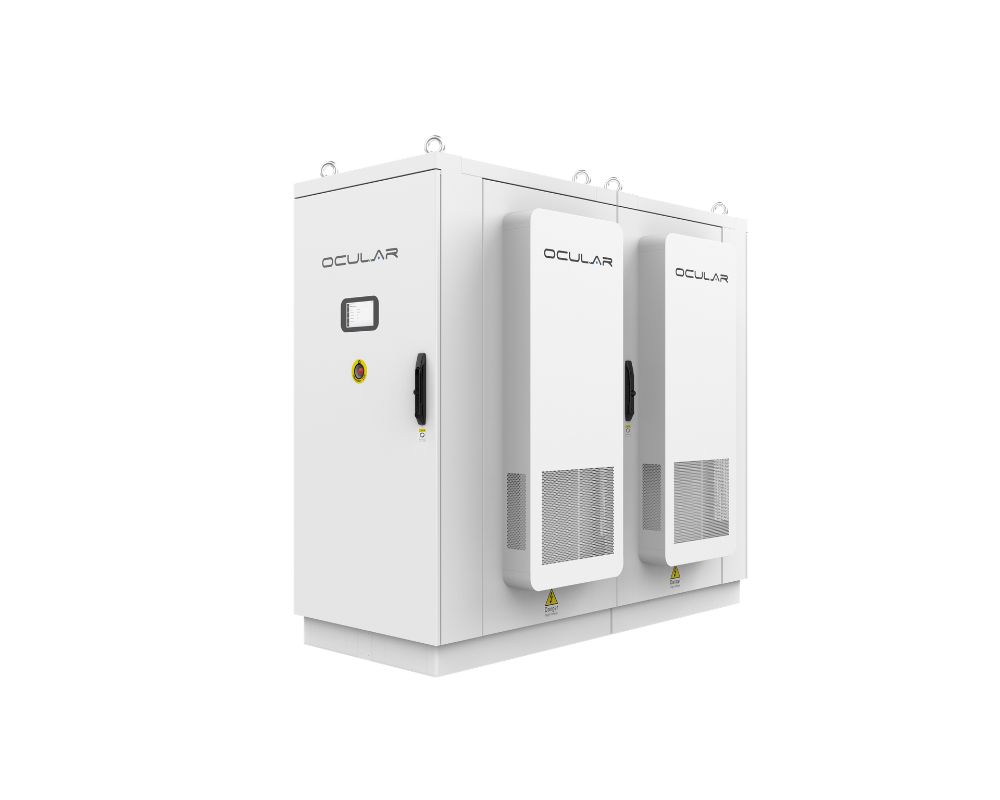

Ocular Satellite DC Charger – 960kW Base Station

The Ocular Satellite DC Charger 960kW Base Station is a high-capacity central power unit designed to support large-scale EV charging deployments. Built with modular 40kW power units, it enables flexible system expansion while maintaining high efficiency and performance.

The system dynamically distributes available power across connected satellite dispensers, ensuring optimal utilisation and reduced infrastructure costs. This makes it ideal for high-throughput public charging hubs and large fleet depots.

With a durable IP55- rated enclosure and advanced cooling design, the unit is engineered for reliable operations in demanding environments.

Scalable Power Architecture:

Modular 40kW power units allow flexible expansion and system scalability.

Smart Power Distribution:

Intelligent load allocation across multiple dispensers ensures efficient power usage.

Supports Large Charging Networks:

Capable of supporting up to 24 charging outputs depending on configuration.

High Efficiency Performance:

≥95% efficiency with strong power factor and low harmonic distortion.

Reliable and Durable Design:

IP55-rated enclosure with independent air-duct cooling for long-term durability.

Connectivity:

Ethernet and 4G connectivity
Fully compatible with OCPP 1.6J and OCPP 2.0.1
Supports ISO15118 (Plug & Charge)

Keep this in mind when installing:

This unit forms the central power system of the Satellite charging network and must be installed by a licensed electrician. Site capacity and load management should be assessed prior to installation.

Input & Output:

Input voltage – 3-phase 400VAC ±15% (4 routes)
Input frequency – 50/60Hz
Total output power – 960kW
Minimum adjustable power – 40kW
Number of outputs – Up to 24 (configuration dependent)

Protection:

Over current protection
Under voltage protection
Surge protection
Short circuit protection
Over temperature protection
Harmonic control

Function and Accessory:

Modular 40kW power units
Independent air-duct cooling system
Dynamic load management
Remote monitoring capability

Working environment:

Protection degree – IP55
Environment temperature – -30 – 55°C
Storage temperature – -30 – 80°C
Operating altitude – ≤2000m

Mechanical:

Dimensions (H/W/D) – 1937 x 2058 x 985 mm
Mounting – Floor standing
