Electrical specifications:
Input / Output voltage AC 230V/400V

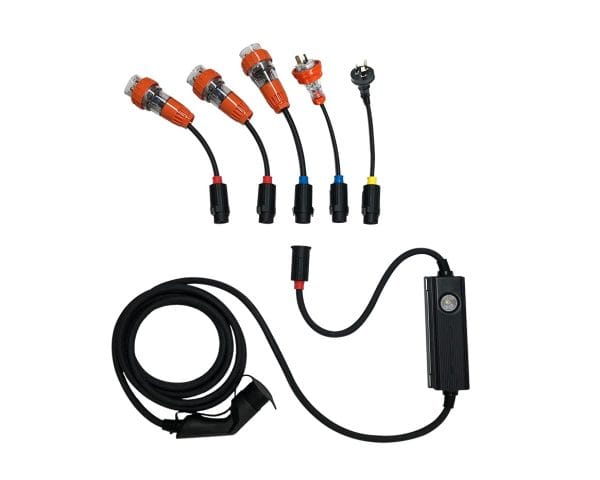

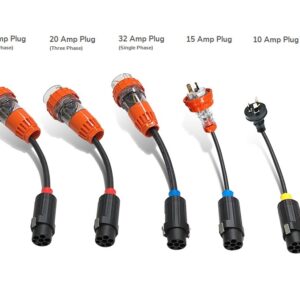

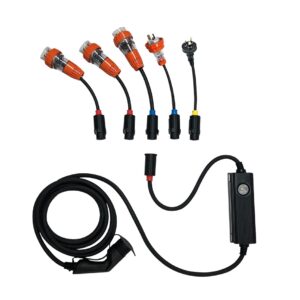

Input/Output Current
- 1*8A – Plugs into 10Amp Outlet
- 1*15A – Plugs in 15Amp outlet
- 1*32A – Plugs into 3-pin Single Phase Outlet
- 3*16A – Plugs into 5-pin 20Amp Outlet
- 3*24A- Plugs into 5-pin 32Amp Outlet
Power:
- 2- 16.5KW
- Operating Frequency 50HZ
- Charging interface type IEC 62196-2
- 300*66*86mm
- 7.5KG
- 6.8 m in length
Working Environment:
- Waterproof Protection Degree IP66
- Maximum Altitude <2000m
- Environment Temperature -25℃ ~ +55℃
- Relative Humidity 5-95% non-condensing
- Standby Power Consumption <8W
- Cooling Natural cooling
Protection:
- Over voltage protection
- Under voltage protection
- Over load protection
- Short circuit protection
- Earth leakage protection
- Lightning protection
- Over-temp protection
Function and Accessory:
- LCD 1.8-inch color display
- RCD Type A / Type A+6mA
- LED Indicator light Blink (040) Rolling(041)
- Intelligent power adjustment Yes
Certificate:
CE, FCC, CCC, ROHS, IK10, IP66
See our range of Portable Electric Car Charging solutions here
