Type 2 (Mennekes) Inlet | 32A | 3-Phase

Availablity: In Stock!

$160


Quick Overview

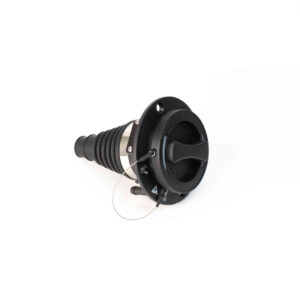

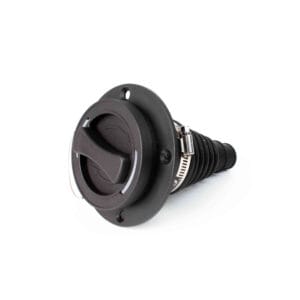

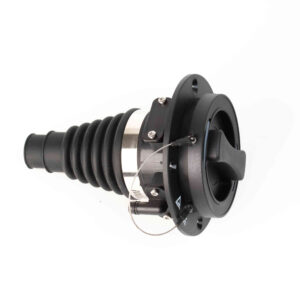

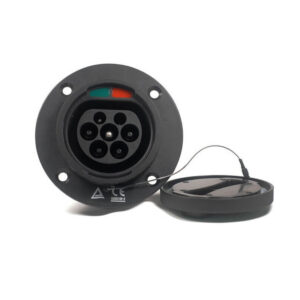

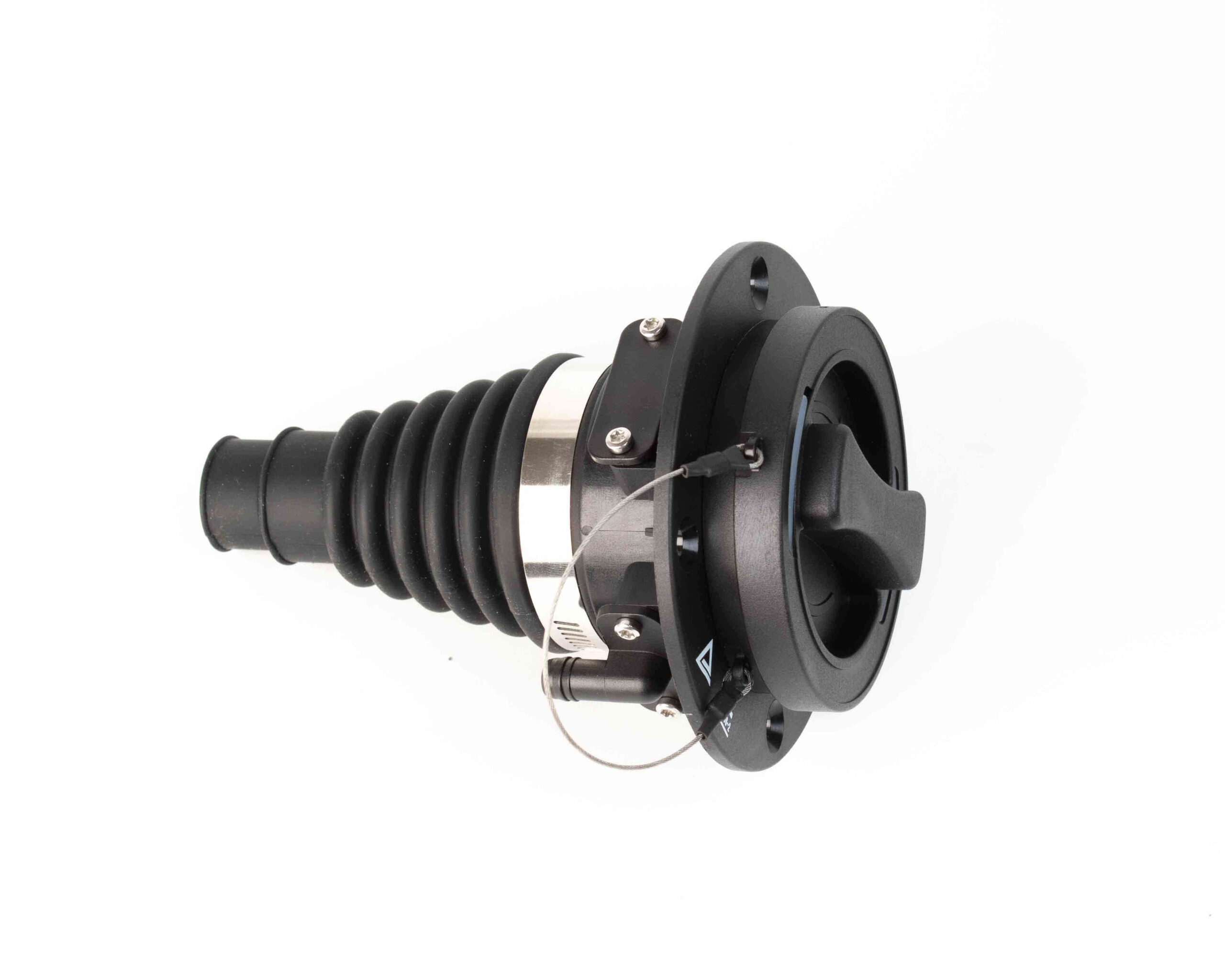

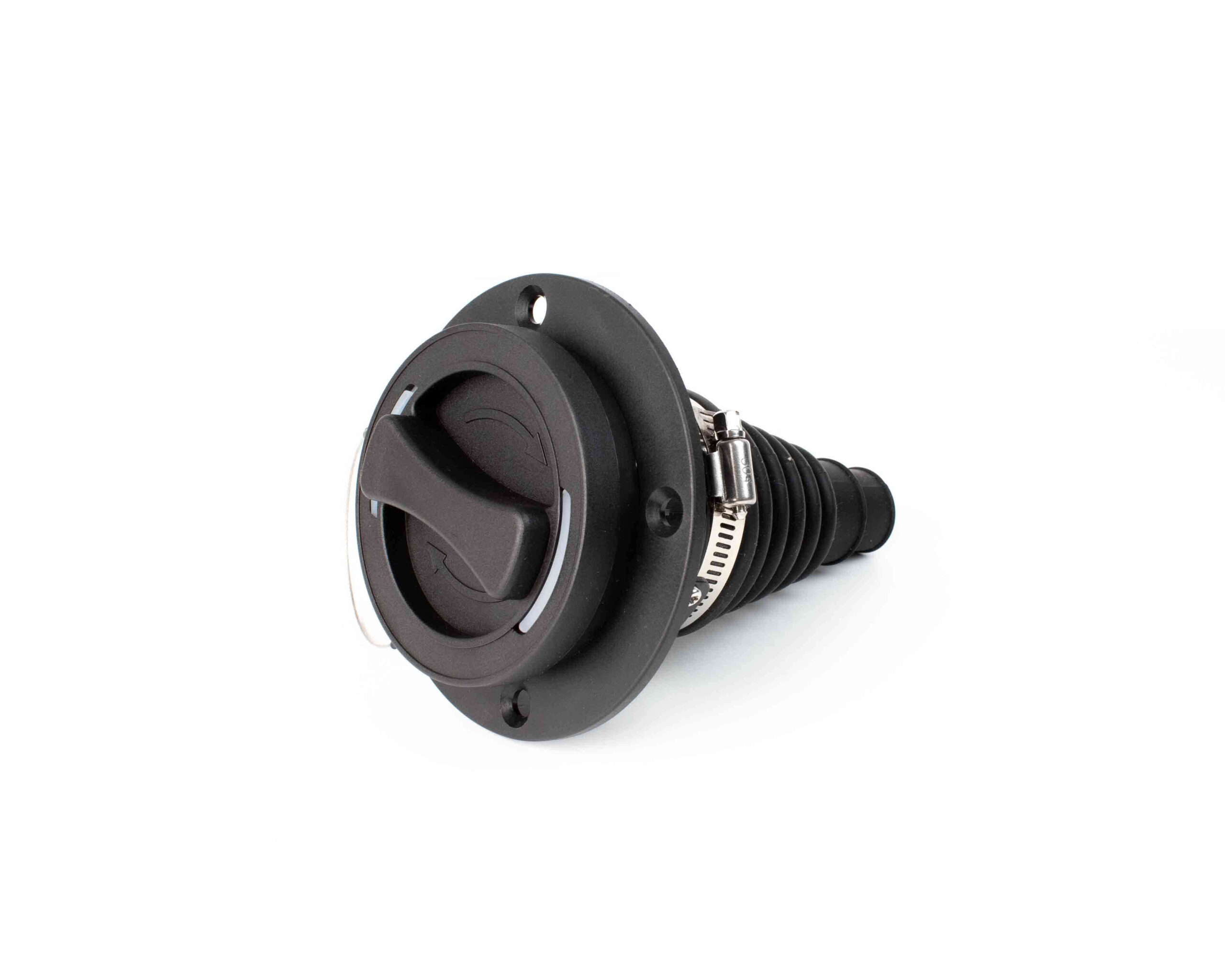

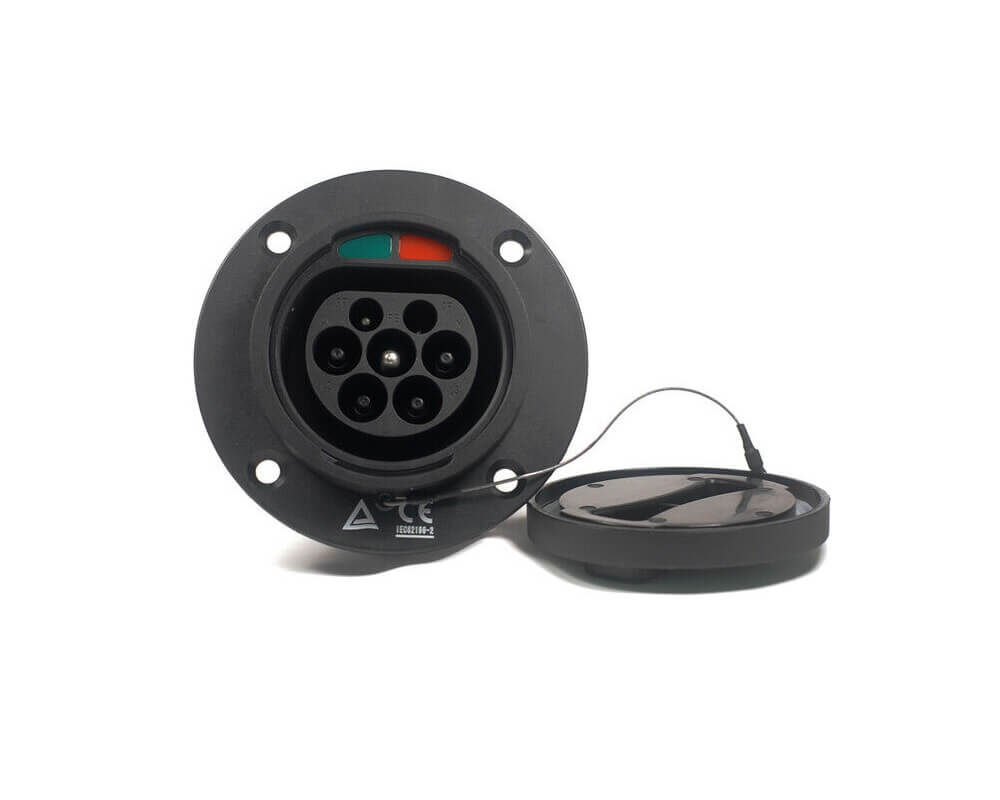

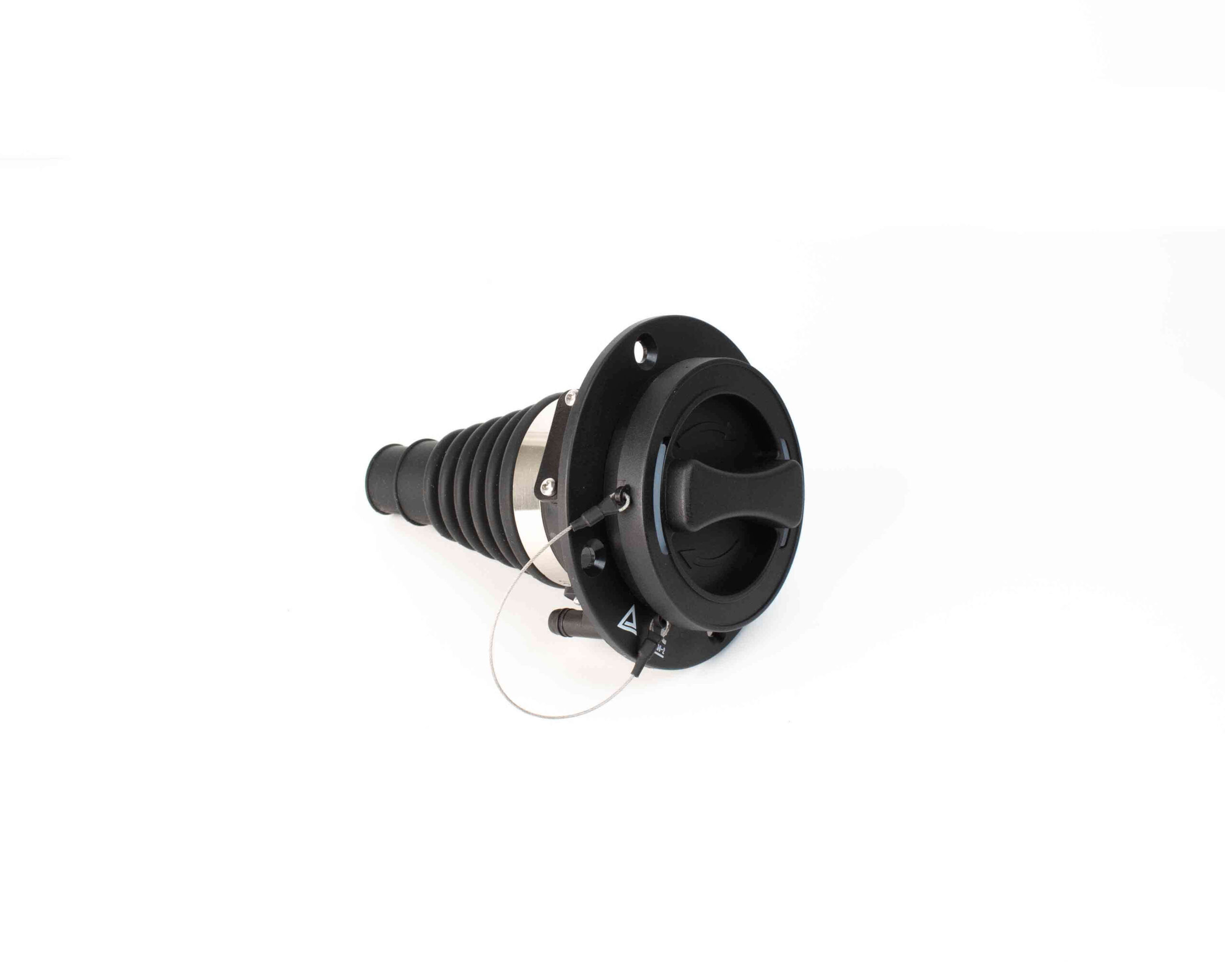

IEC 62196-2 (Type 2 Mennekes) Male Socket/Inlet(EV Side) 32A with Lid

The Type 2 (Mennekes) inlet, is an industry-standard vehicle connector for convenient charging of Plug-in Hybrid Electric Vehicles (PHEV) and Electric Vehicles. Type 2 inlets and plugs support Level 1 and Level 2 charging standard of Europe/ Australia and increasingly global standards

Delivery Time: 2-3 Days Express
SKU: 1112 Car Guide: ,

Description

IEC 62196-2 (Type 2 Mennekes) Male Socket/Inlet(EV Side) 32A with Lid,

The Type 2 (Mennekes) inlet, is an industry-standard vehicle connector for convenient charging of Plug-in Hybrid Electric Vehicles (PHEV) and Electric Vehicles. Type 2 inlets and plugs support Level 1 and Level 2 charging standard of Europe/ Australia and increasingly global standards

  • Meets IEC 62196-2 2010 SHEET 2-llb (Mennekes, Type 2) EU European standard
  • Nice shape and easy to use, protection class IP54 (in mated conditions)
  • Cord Length: Free end,
  • Adapt the socket type: IEC 62196-2

Parameters

  • Rated current: 32A
  • Operation voltage: 240/415V AC
  • Insulation resistance: > 1000MΩ (DC500V)
  • Terminal temperature rise: < 50K
  • Withstand voltage: 2000V
  • Vibration resistance: Meet JDQ 53.3 requirements
  • Contact impedance: 0.5mΩ Max
  • CE & TUV approved

Materials

  • Shell Material: Thermo Plastic ( Insulator inflammability UL94 VO)
  • Contact Pin: Copper alloy, silver plating
  • Sealing gasket: rubber or silicon rubber

Recommended Cable  (available on order by email)

  • Cable: (TUV,UL Rated)
  • 32A: 3*6.0mm2+2*0.5mm2
  • Cord length: Free End, 3m(9.8ft), 5m(16.4ft)

Additional information

Weight 0.5 kg
