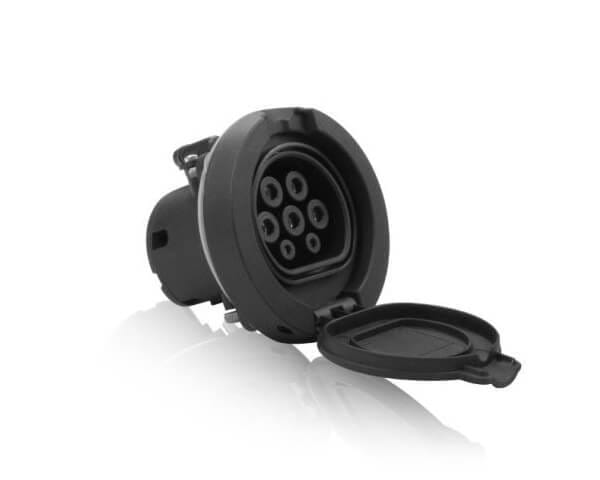

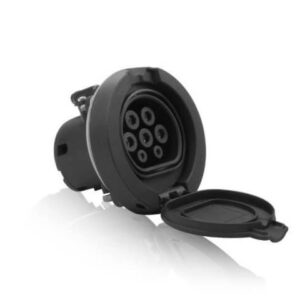

Type 2 (IEC 69196-2) Outlet | 32A | 3-Phase

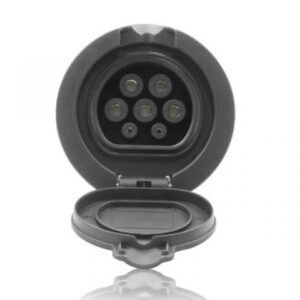

IEC 62196-2 Type 2 Outlet for Charging Station 32 A with Hinged Lid

The Type 2 (IEC 69196-2) oulet, is an industry-standard EV Charging Station outlet. Supports Level 1 and Level 2 charging standard of Europe/ Australia and increasingly global standards

• Meets IEC 62196-2 (Mennekes, Type 2) EU European standard
• Protection class IP54 (in mated conditions)
• Cord Length: Free end,
• IEC 62196-2
• 4 Point Fixing
• Single / 3 Phase
• Hinged Lid

Parameters

• Rated current: 32A
• Operation voltage: 240/415V AC
• Insulation resistance: > 1000MΩ (DC500V)
• Working temperature: -30°C ~+ 50°C
• Terminal temperature rise: < 50K
• Withstand voltage: 2000V
• Vibration resistance: Meet JDQ 53.3 requirements
• Contact impedance: 0.5mΩ Max
• CE & TUV approved

Materials

• Shell Material: Thermo Plastic ( Insulator inflammability UL94 VO)
• Contact Pin: Copper alloy, silver plating
• Sealing gasket: rubber or silicon rubber

Recommended Cable  (available on order by email)

• 16A
  3G2.5mm²+2*0.5mm² EV Wire (AC) / 11mm Diameter
• 32A
  3G6.0mm²+2*0.5mm² EV Wire (AC) / 15mm Diameter
• 32A 3 Phase
  5G6.0mm²+2*0.5mm² EV Wire (AC) / 19mm Diameter
