Smoke & Heat Multi-Sensor Alarm | Mains 230 Volts | Brooks


google-reviews Best Price Guarantee
Availability: instock

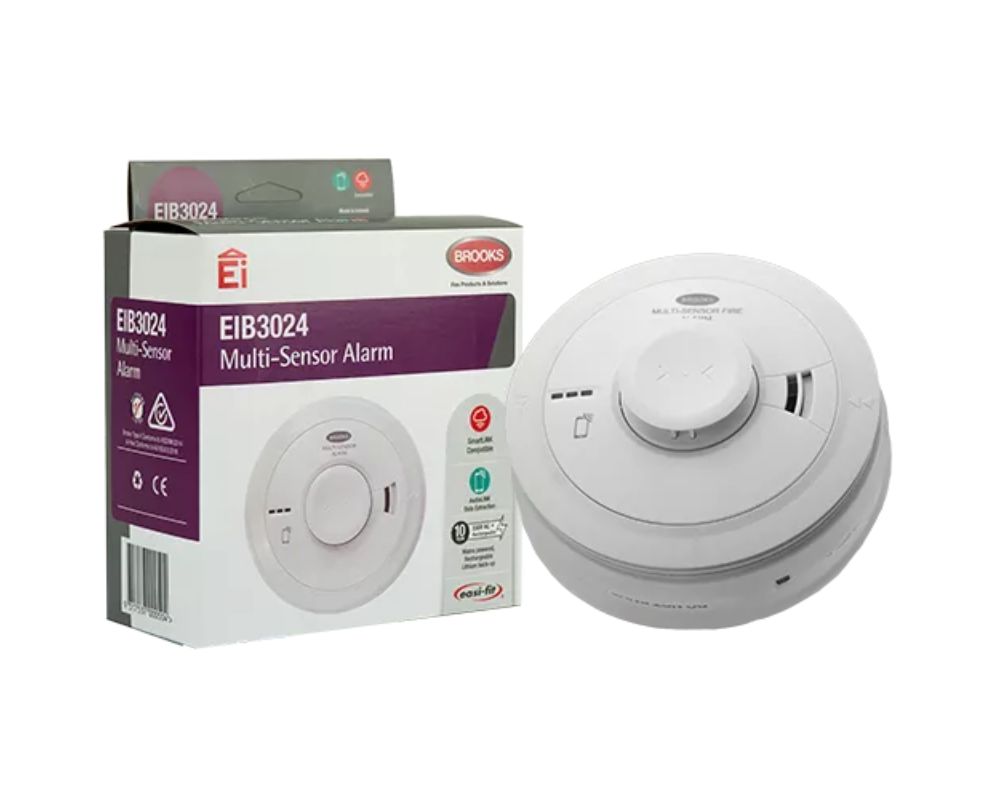

Fire and Heat Multi-Sensor Alarm with 230V AC mains power supply with a non removable rechargeable lithium battery back-up.

Fires with EV’s are incredibly rare however you may want some extra protection. The dual sensor heat and smoke alarm provides an added layer of protection compared to simple smoke alarms. Ideal for EV charging


The EIB3024 is a Multi-Sensor alarm containing 2 separate sensing elements, intelligently monitored, in order to detect the presence of fire. Using its intelligent dual monitoring, it responds much faster to all fire types (TF1 to TF6 & TF8) than a traditional single sensor Alarm. In addition, the chamber design, integrated insect screen and unique dust compensation algorithm reduce the risk of false alarms.

The EIB3024 is powered by 230V AC mains. In the event of mains failure, the rechargeable 10-year built-in non-removable lithium battery will provide up to 3 months power supply in the case of a wireless RF installation or up to 6 months in any other case.

The AudioLINK feature facilitates acoustic download of the alarm parameters and status using the AudioLINK app.

The EIB3024 can operate as a standalone alarm or can be interconnected either by hard-wire or wirelessly (using the EIB3000MRF module) enabling it to communicate with compatible Brooks alarms and accessories. Up to 12 devices can be interconnected.

The EIB3024 self-checks its sensors, battery voltage and internal circuitry every 48 seconds. Any fault condition found will be indicated by a combination of yellow LED flashes and chirps.

The memory feature allows an alarm that has previously activated to be easily identified (through the red flashing LED).

The Multi-Sensor Alarm has the following features:

  • Contains both photoelectric and heat sensor
  • Complies with all fire tests: TF1-TF6 & TF8
  • SmartLINK compatible
  • AudioLINK data download
  • Automatic dust compensation
  • Hardwire interconnect (up to 12 devices)
  • Optional wireless interconnect (with EIB3000MRF module)
  • Easy to use large Test/Silence button
  • Memory function
  • Easi-fit base
  • Energy efficient and low power consumption
  • Conforms to AS3786:2014 + A1:2015; AS1603.3:2018
  • 5-year guarantee
