Ocular LTE | w/6m Type 2 Cable | 11 kW Three Phase



Add an additional warranty to your charger

Best Price Guarantee


The Ocular Home Three-Phase EV Charging station combines a beautiful compact charging station with a class-leading LCD screen for live charging feedback. Move away from blank wallboxes and start charging with vision.


  • THREE-PHASE 11kW (up to 60km of driving range per hour of charge). For Single Phase 7kW, check the dropdown menu.
  • Warranty – 2 Years
  • Compatible with all new Type 2 EVs including Audi, BMW, BYD, EQC, Holden, Honda, Hyundai, Jaguar, KIA, Mazda, Mercedes Benz, Mini, MG, Mitsubishi, Nissan, Polestar, Porsche, Renault, Rivian, Tesla, Toyota, Volkswagen, Volvo, etc. If you are unsure if this charging station is right for your EV, get in touch with our team.
Availability: instock

Ocular LTE | w/6m Type 2 Cable | 11 kW Three Phase

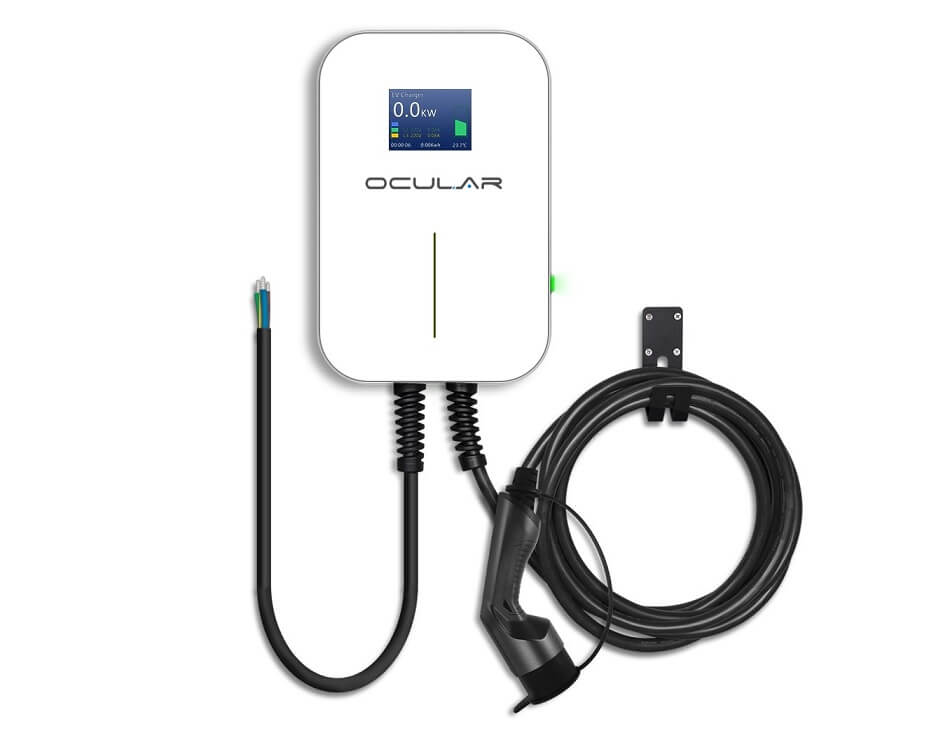

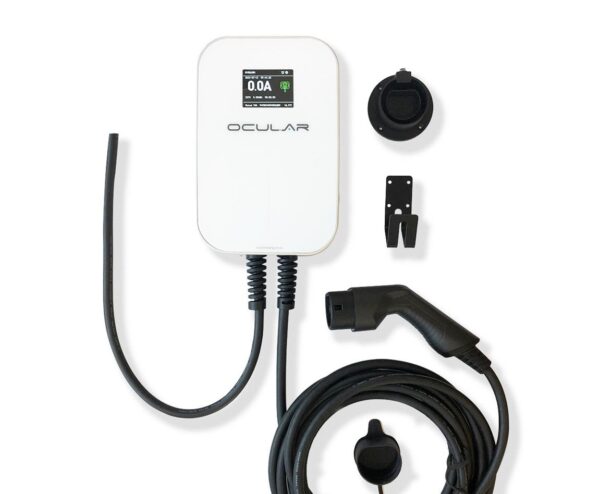

The Ocular LTE EV Wallbox comes in 2 variants: Universal and Tethered.

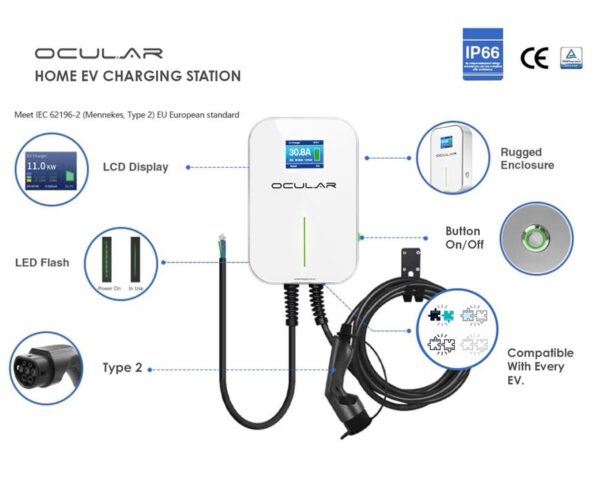

With a colourful LCD display, users can clearly see the current charging status including charging time, voltage, current internal temperature, etc.

Non-hardware faults that occur during charging will be automatically fixed. Faults that require manual repair will be displayed on the LCD screen. The housing is sturdy and has an IP66 rating. It can be easily installed on the wall. If the customer prefers charger to be installed on the stand, we can provide the matching one.

Input & Output

  • Input voltage/Output voltage – AC 230V / 400V
  • 16Amp output
  • 3-Phase
  • Input frequency – 50Hz
  • Max. output power – 3.6KW(1 Phase) / 11kW (3-Phase)
  • Max. output current – 32Amp
  • Charging interface type – IEC 62196-2, SAE J1772


  • Over voltage protection
  • Under voltage protection
  • Over load protection
  • Short circuit protection
  • Earth leakage protection
  • Over-temp protection
  • Lightning protection

Function and Accessory

  • LCD – 3.5 inch
  • RCD – Type A + 6mA DC
  • LED Indicator light
  • Intelligent power adjustment

Working environment

  • Protection degree – IP66
  • Environment temperature – -40 – 75 Degrees Celsius
  • Relative humidity- 0-95%
  • Cooling – Natural Air Cooling
  • Standby power consumption- <8W


  • Dimension (W/H/D) – 295/195/65mm
  • Weight – 6 kg

Mounting Accessories

  • Wall-mounting bracket
  • Ground-mounting pole – Optional



Keep this in mind when installing:

For your safety, the installation must only be carried out by a licensed and qualified electrician familiar with Australian industry standards and is fully responsible for the installation.

Additional information

Weight 8 kg

32 Amp

Cable Length

6 Metres


7kW Single Phase

Plug Type

Universal Socket
