Ocular Charging 5m Cable

Ocular IQ Commercial | 22 kW | OCPP 1.6J | w/5m cable

Model

QUICK OVERVIEW

The Ocular IQ Commercial is designed with your ultimate experience in mind. Ocular provides you the power to connect and be informed without complication. We know how great it feels when advanced technology works precisely the way you want it. With OCPP compatibility the unit supports EV software for billing and fleet monitoring purposes.



  • Warranty – 2 Years
  • Charging Speed – 7kW (50km of driving per hour of charge)
  • Billing Capable  via OCPP
  • Smart Phone App via OCPP
  • OCPP 1.6J
  • Compatible with all-electric vehicles and models including Audi, BMW, BYD, EQC, Holden, Honda, Hyundai, Jaguar, KIA, Mazda, Mercedes Benz, Mini, MG, Mitsubishi, Nissan, Polestar, Porsche, Renault, Rivian, Tesla, Toyota, Volkswagen, Volvo
Availability: instock
EAN: N/A SKU: IOCAW05C-22T

Ocular IQ Commercial | 22 kW | OCPP 1.6J | w/5m cable

Ocular IQ OCPP provides a high-quality and cost-effective EV charging point designed to offer full Mode 3 fast charging to any EV in Australia.

With OCPP 1.6J integration, the charger can be connected to any charging management system for easy operation, monitoring, and maintenance.

Advanced Features

  • Inbuilt Multi level load balancing capabilities with cluster connectivity, ensure fair distribution of charging power among plugged-in vehicles while respecting the grid connection point limitations.
  • Integrated RCD Type B for reduced installation costs
  • Advanced 7’ LCD Display for live charging display
  • Commercial metallic casing designed and tested to Australian conditions. Why compromise with plastic?
  • Advanced Commercial Solar Integration – ( Requires an additional controller )
  • Easy installation with a wide-angle door opening and modular components shorten the field time and maintenance.

Main Features

  • 7’ LCD Display
  • 230/400 Volts Single/Three Phase with configurable output (10A-32A)

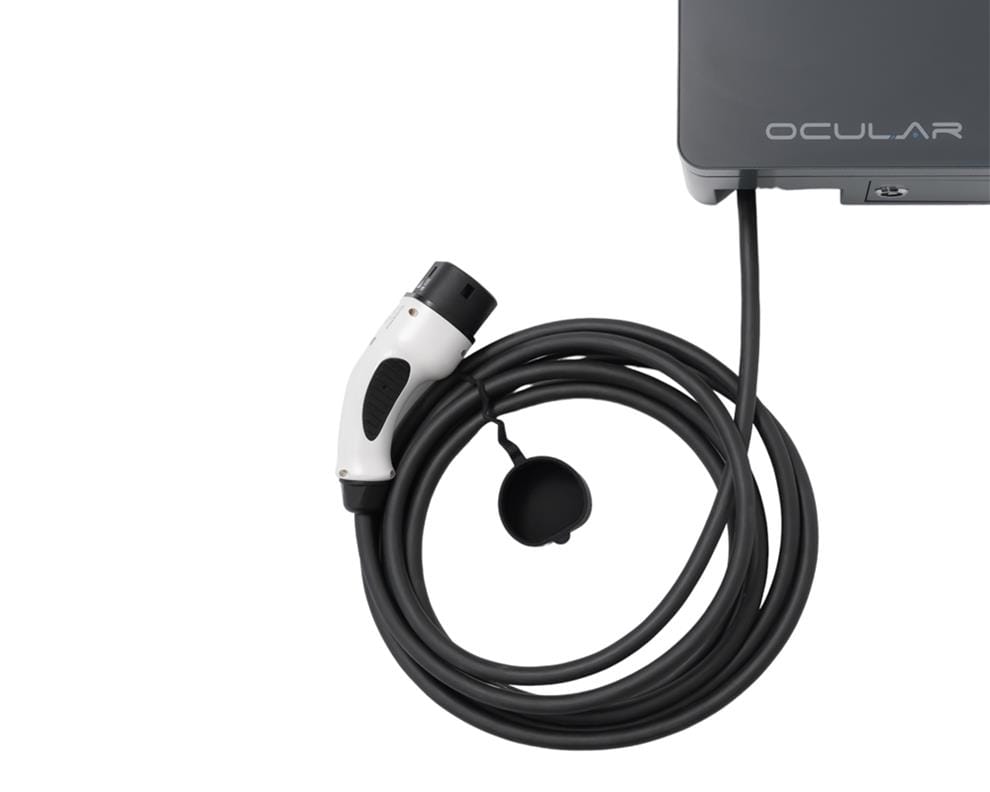

  • 5m Hardwired EV cable
  • Charging speeds – 7kW (32A) or 22kW (32A) 3-phase
  • Robust commercial-grade metallic housing
  • Full OCPP 1.6J, OCPP 2.0 including smart profiles
  • LED light indicating state of charger: charging, faulty, or available
  • Over current, short circuit, over voltage, under voltage, ground fault, lightning surge, over temperature
  • IEC 62196 dual Type-2 sockets
  • IEC 61851-1 Mode 3 fast charging
  • Built-in overload and fault current protection
  • Built-in LED charging status indicator
  • MID certified energy meter
  • Built-in RCCB Type-B IEC certified and compliant with EV standards
  • IP54
  • CE Compliant
  • RFID card reader. ISO/IEC 156963 and 14443
  • IK10 charging station conforming to IEC 61851-22
  • Dimensions: 270 x 400 x 130 mm
  • Operating Temp: (-30 C to +55 C) in operation, (-40 C to +80 C) in storage
  • Ethernet, (2.4G)
  • 5G Wi-Fi
  • 4G Module (optional)
  • Full OCPP 1.6J commands support
    •OCPP profiles 1: Firmware Management and Remote Trigger
    •OCPP profiles 2: Smart Charging
    •OCPP profiles 3: Local Auth List Management and Reservation
  • RFID Access or smartphone via OCPP
  • Universal and cabled version to order
  • Outdoor rated
  • Wall or post mounted
  • Compatible with all-electric vehicles and models including Audi, BMW, BYD, EQC, Holden, Honda, Hyundai, Jaguar, KIA, Mazda, Mercedes Benz, Mini, MG, Mitsubishi, Nissan, Polestar, Porsche, Renault, Rivian, Tesla, Toyota, Volkswagen, Volvo

Additional information

Weight 12 kg
kw

7kW

amp

32 Amp Single Phase

Warranty

2 Year

types

Universal

Reviews

There are no reviews yet.

Be the first to review “Ocular IQ Commercial | 22 kW | OCPP 1.6J | w/5m cable”
  • Ocular IQ Commercial Datasheet
    Download
  • Ocular IQ Commercial Installation Guide
    Download
