Ocular Wallbox
Ocular Wallbox
Home Car Charger
Ocular Home Electric Car Charger
Electric Car Charger
Wallbox Charging Station
Electronic Car Charging Station
Ocular Home Straight Cable

Ocular Home | w/6m Type 2 Cable

$1,140.00

Model

Available on backorder

Add an additional warranty to your charger

Best Price Guarantee

QUICK OVERVIEW

**Out of Stock- New Stock is Due 20th of September universal units still available**

The Ocular Home Single Phase EV Charging station combines a beautiful compact charging station with a class-leading LCD screen for live charging feedback. Move away from blank wallboxes and start charging with vision.



  • SINGLE PHASE 7kW (up to 50km of driving range per hour of charge). For 3 Phase 22kW, check the dropdown menu.
  • Warranty – 2 Years
  • Compatible with all new Type 2 EVs including Audi, BMW, BYD, EQC, Holden, Honda, Hyundai, Jaguar, KIA, Mazda, Mercedes Benz, Mini, MG, Mitsubishi, Nissan, Polestar, Porsche, Renault, Rivian, Tesla, Toyota, Volkswagen, Volvo, etc. If you are unsure if this charging station is right for your EV, get in touch with our team.
Availability: onbackorder
EAN: N/A SKU: OC20-BC-7.2KW

Ocular Home | w/6m Type 2 Cable

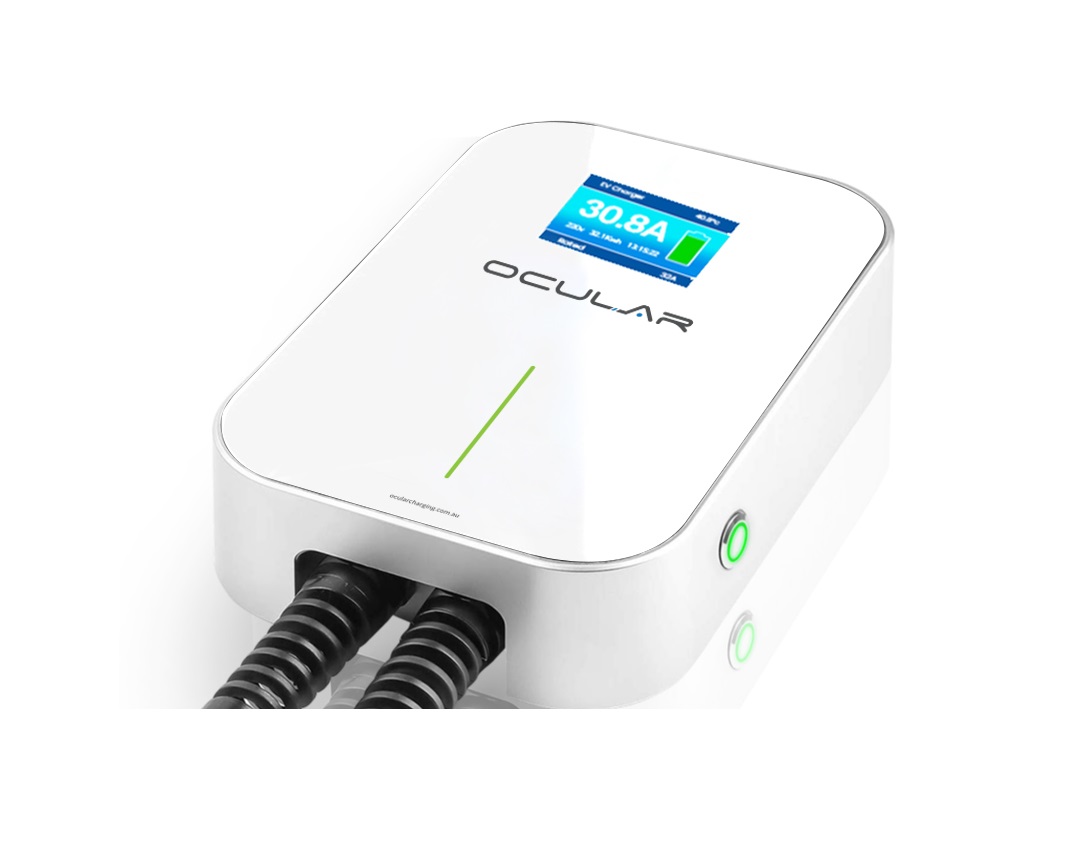

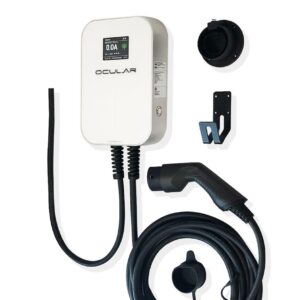

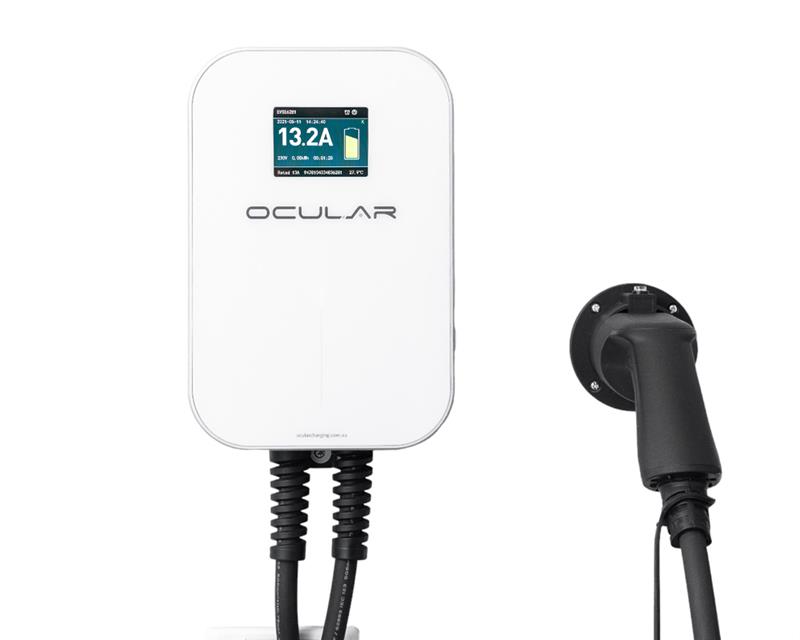

The Ocular Home EV Wallbox comes in 2 variants: Universal and Tethered. With a colourful LCD display, users can clearly see the current charging status including charging time, voltage, current & internal temperature.

Non-hardware faults that occur during charging will be automatically fixed. Faults that require manual repair will be displayed on the LCD screen. The housing has a robust IK10 rating with a waterproof IP66 rating. It can be easily installed on the wall, with stand mounting available as well.

Input & Output

  • Input voltage/Output voltage – AC 230V
  • Input frequency – 50Hz
  • Max. output power – 7.4KW(1 Phase)
  • Max. output current – 32Amp
  • Charging interface type – IEC 62196-2, SAE J1772

Protection

  • Over voltage protection
  • Under voltage protection
  • Over load protection
  • Short circuit protection
  • Earth leakage protection
  • Over-temp protection
  • Lightning protection

Function and Accessory

  • LCD – 3.5 inch
  • RCD – Type A + 6mA DC
  • LED Indicator light

Working environment

  • Protection degree – IP66
  • Environment temperature – -40 – 75 Degrees Celsius
  • Relative humidity – 0-95%
  • Cooling – Natural Air Cooling
  • Standby power consumption – <8W

Mechanical

  • Dimension (W/H/D) – 295/195/65mm
  • Weight – 6 kg

Mounting Accessories

  • Wall-mounting bracket
  • Ground-mounting pole – Optional

Certificate

  • CE, TUV, FCC, CSA, RoHS

Keep this in mind when installing:

For your safety, the installation must only be carried out by a licensed and qualified electrician familiar with Australian industry standards and is fully responsible for the installation.

Additional information

Weight 8 kg
kw

7kW

amp

32 Amp Single Phase

Warranty

2 Year

types

Type 2

length

6 Metres

Reviews

There are no reviews yet.

Be the first to review “Ocular Home | w/6m Type 2 Cable”
  • Ocular Home Datasheet
    Download
  • Ocular Home User Manual & Installation & Installation Guide
    Download
