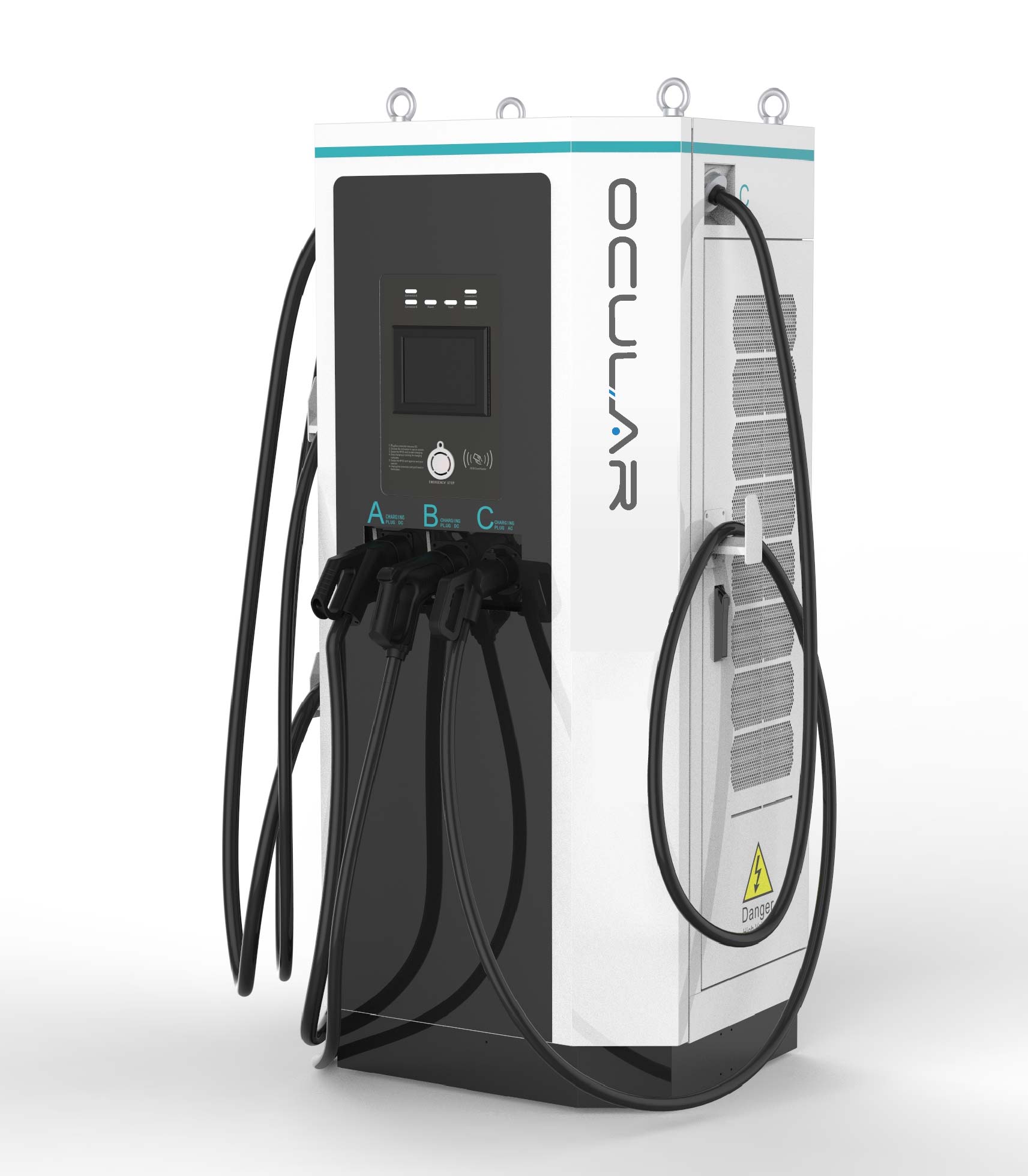

Ocular Combi DC Charger | 120kW | Dual Charger CCS2 + AC

The Ocular Titan Combi DC Charger 120kW can fast charge 3 EV’s at once.  The unit comes standard with 2x CCS2 Cables + 22kW AC charger to allow you to service 3 electric vehicles at once

Specifications:

• CCS 2 Dual charging port + AC 22kW Port
• Rated input voltage: 400V AC 3-Phase
• Frequency: 50Hz/60Hz
• DC plug type: Dual CCS Type 2 as standard – CHAdeMO to order
• AC Plug Type: Type 2 22kW
• Powerpoint: Australian 15Amp
• Output voltage range: 150~1000V DC
• Max. output power: 120kW
• 8-inch touchscreen display
• RFID card, Mobile APP via OCPP
• OCPP 1.6 & 2.0 Compatible
• Load management available to control multiple units with load challenges.
• Efficiency: ≥94%
• Cable Length: 5m
• RCM Certificate to Australian and European Standards

Protection:

• Over voltage protection
• Under voltage protection
• Over load protection
• Leakage current protection
• Overtemperature protection
• Short circuit protection
• Lightning protection

Function & Accessory:

• Indicator- Display: 8 inch touch screen
• Emergency stop: Yes
• Payment support: Yes vis OCPP
• OCPP 1.6 & 2.0
• RFID/QR Code
• Ethernet/4G inbuilt

Working Environment:

• Operating temperature: -30°C ~+55°
• Relative humidity: 5%-95% non-condensing
• Maximum altitude: 2000m
• Cooling: Forced air cooling
• Standby power consumption:<25W
• Protection degree: IP54

Mechanical:

• Dimension (H/W/D)- 1850 x 750 x 640 mm
• Weight- 400 KG
