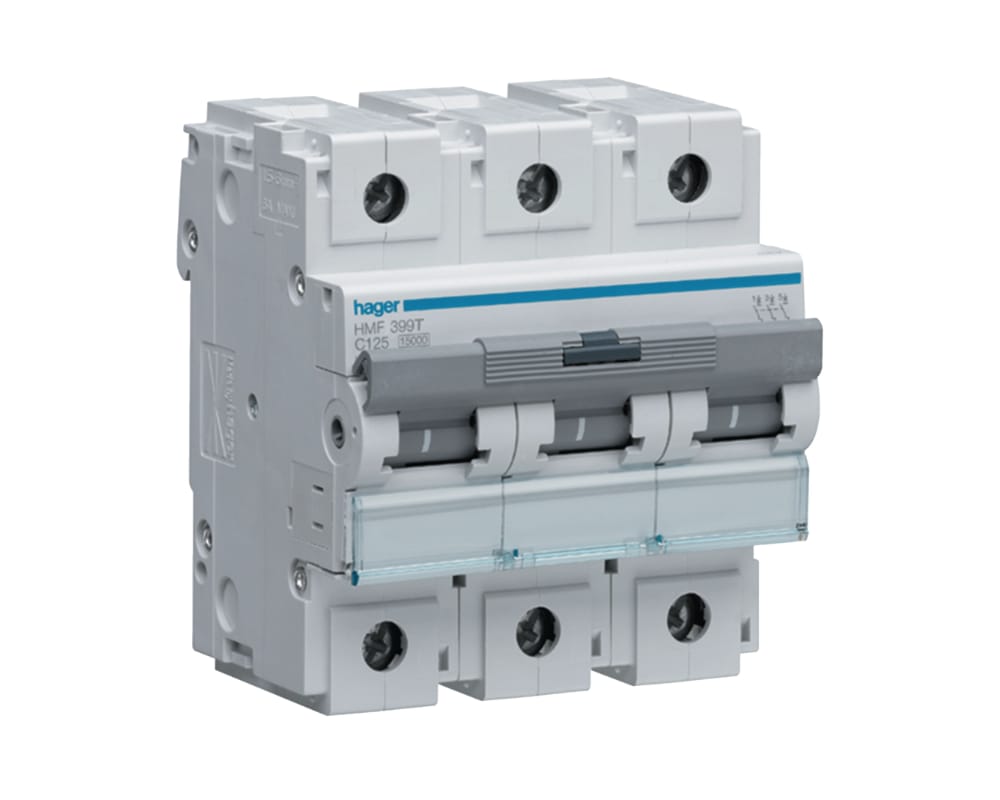

Hager HMF399T | MCB 3P 10KA C-125A 4.5M

Availability: In Stock

QUICK OVERVIEW

SKU: HAG-HMF399T

Free Shipping Australia Wide

Up to 3 Years Warranty

Same Day Dispatch

Since 2015

Technical properties
Architecture
Type of pole	3P
Curve	C
Voltage
Rated operational voltage (Ue)	400 – 415 V
Type voltage supply	AC
Rated insulation voltage (Ui)	500 V
Rated impulse withstand voltage (Uimp)	6000 V
Frequency
Frequency	50 – 60 Hz
Electric current
Rated current	125 A
Rated short-circuit breaking capacity Icn under 230 V AC (IEC 60898-1)	10 kA
Rated ultimate short-circuit breaking capacity Icu under 230 V AC (IEC 60947-2)	10 kA
Rated ultimate short-circuit breaking capacity Icu under 400 V AC (IEC 60947-2)	10 kA
Installation, mounting
Nominal tightening torque	3,5 – 5,0 Nm
Type of top connection for modular devices	Screw terminal
Type of bottom connection for modular devices	Screw terminal
Nominal tightening torque down terminal	3,60 – 3,60 Nm
Nominal tightening torque top terminal	3,60 – 3,60 Nm
Main electrical attributes
Rated short-circuit breaking capacity Icn AC (IEC 60898-1)	10 kA
Power
Total power loss under IN	34,93 W
Endurance
Electric endurance (number of cycles)	4000
Number of mechanical operations	20000
Connection
Cross-section of input/output (massive conductors)	1 – 70 mm²
Cross-section of input/output (flexible conductors)	1 – 50 mm²
Cross-section flexible conductor	50 mm²
Cross-section rigid conductor	70 mm²
Use conditions
Degree of pollution (IEC 60664 / IEC 60947-2)	3
Air humidity protection	For all climates
Operating temperature	-25 – 70 °C
Capacity
Number of modules	4,50
Connectivity
Top connection alignment	Aligned terminal
Down connection alignment	Aligned terminal
Dimensions
Height	90 mm
Width	80 mm
Depth	70 mm
