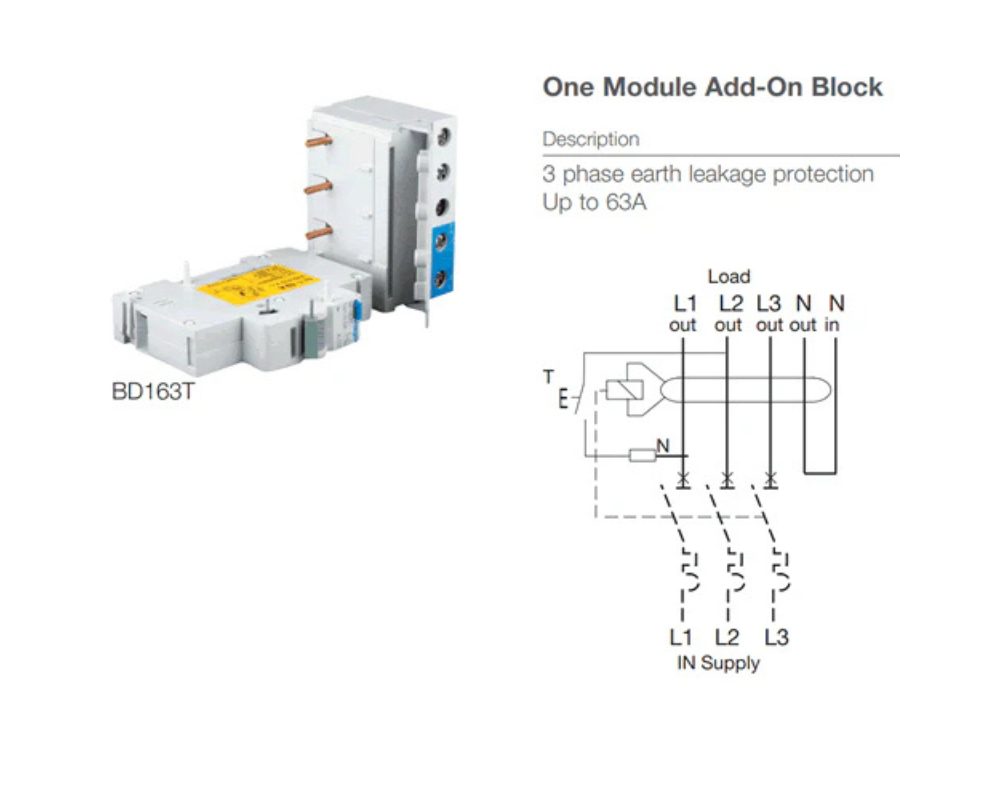

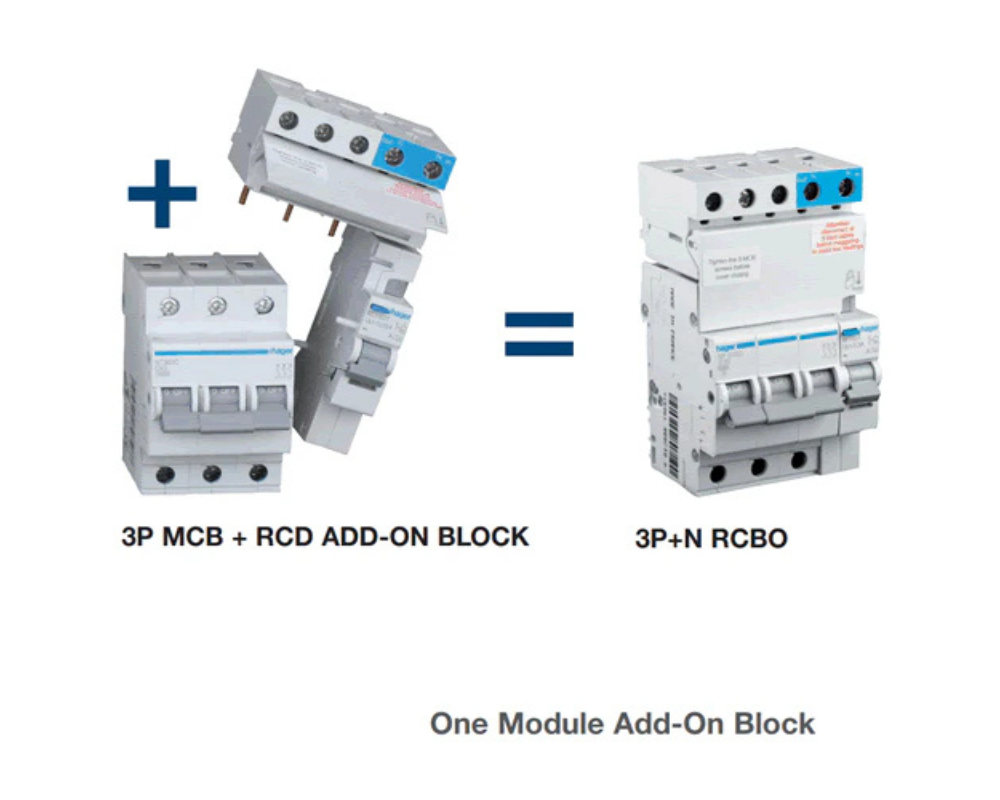

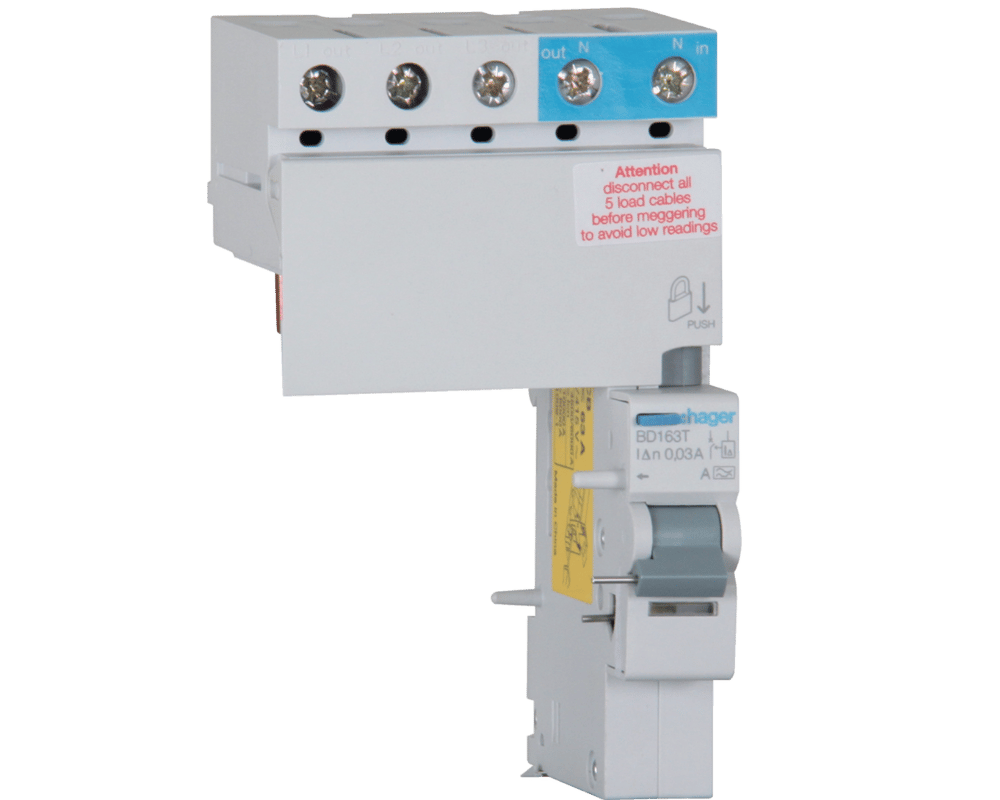

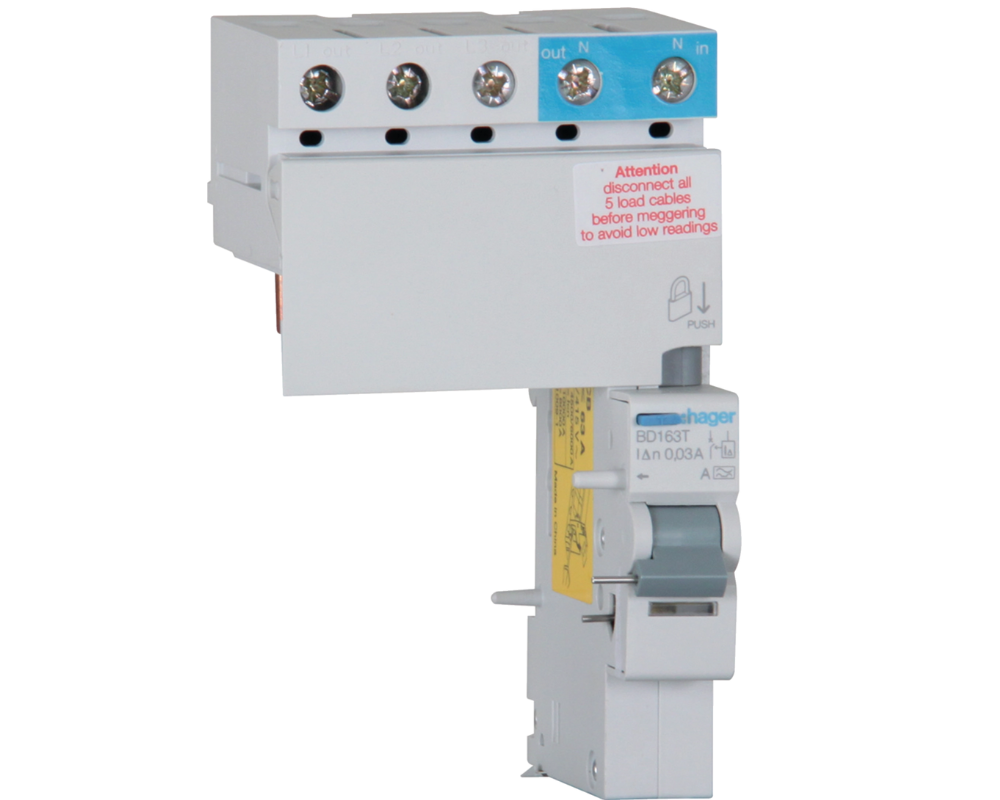

Hager BD163T | Add-On Block 3P 63A 30MA A 1MOD

Availability: In Stock

SKU: HAG-BD163T

Free Shipping Australia Wide

Up to 3 Years Warranty

Same Day Dispatch

Since 2015

Technical properties
Voltage
Rated operational voltage (Ue)	240 – 415 V
Rated insulation voltage (Ui)	500 V
Rated impulse withstand voltage (Uimp)	4000 V
Frequency
Frequency	50 – 50 Hz
Electric current
Rated residual operating current (Idn)	30 mA
Rated current	63 A
Architecture
Number of poles	3
Neutral position	Right
Capacity
Number of modules	1
Connectivity
Type of connection	Screw terminal
Dimensions
Height	121 mm
Width	70.80 mm
Depth	69.10 mm
