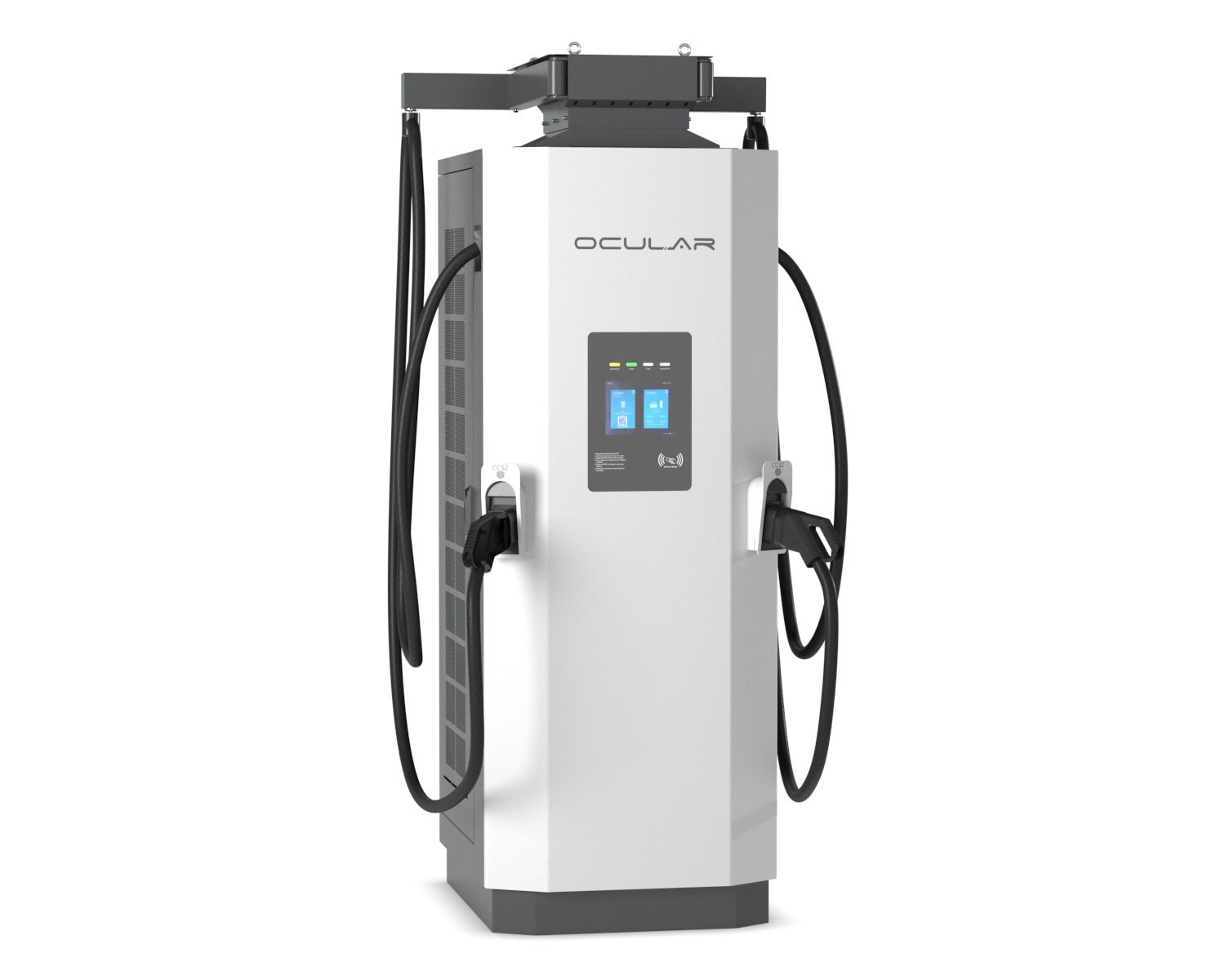

The Ocular Orion Dual DC Charger is designed to supercharge electric vehicles conveniently with its robust metal casing and functional 8inch LED display. The Ocular system is equipped to also power vehicles with high voltage battery systems. The Oculars compact size and touchscreen makes it perfect for public and fleet use. Importantly unlike other units the Ocular system is designed to charge 2 vehicles simultaneously allowing you to double your vehicle servicing.
The Ocular Orion comes standard with dual CCS 2 ports but also other configurations to order including Chademo and CCS1. The unit is compatible with all major brands in Australia.
Specifications:
- Connectors: CCS2 x 2 – (Option for CHAdeMO and CCS1)
- 250Amp Phoenix CCS2 Cable
- 30kW Power Modules for easy servicing
- Supply input: 260V-530V AC
- Supply frequency: 50-60 Hz
- IP55
- Warranty: 2 Years
- Cable Length: 5m
- Forced Air Cooling
- RFID, OCPP APP enabled
- Credit Card upgrade available
- Efficiency >95%
- Power Factor: 0.99
- Display: 8 inch Touchscreen
- Operating Temperature: -35C to 55C
- Network Connection: 4G and Gigabit Ethernet
- OCPP 1.6J, 2.0
- Weight: 590-755 kg
- Dimensions: 2338(H) x 1050(W) x 956(D) mm
- Certifications: CE, RCM
- Electrical Protection: Over current, short circuit, under voltage, ground fault, lightning surge, over temperature
Keep this in mind when installing:
For your safety, the installation must only be carried out by a licensed and qualified electrician familiar with Australian industry standards and is fully responsible for the installation
Please note charging speed is also dependent on the vehicle- The unit delivers 250Amp maximum x Voltage of the vehicle. If the vehicle can charge at a voltage above 600V it will be 150kW. If 400V it will charge at 100kW.
