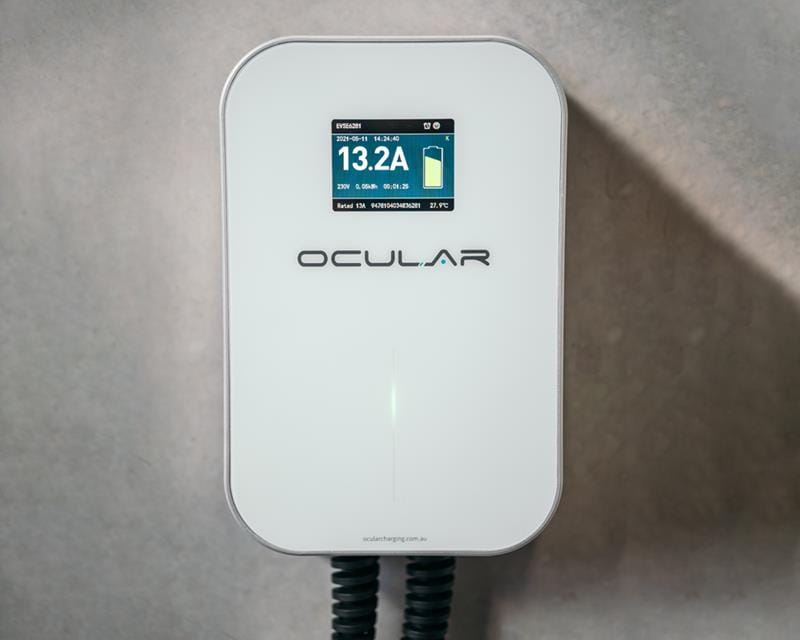

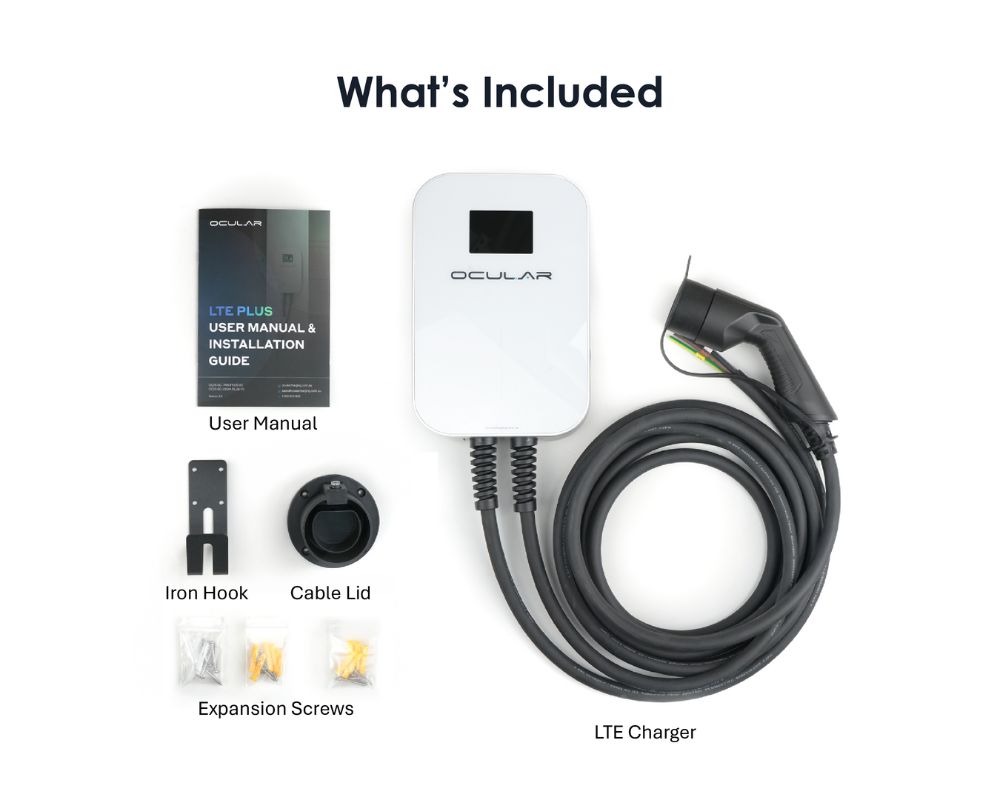

The Ocular LTE Plus EV Wallbox comes with a 6m Type 2 EV cable and Bluetooth Smartphone APP. With a colourful LCD display, users can clearly see the current charging status including charging time, voltage, current & internal temperature.
Non-hardware faults that occur during charging will be automatically fixed. Faults that require manual repair will be displayed on the LCD screen. The housing has a robust IK10 rating with a waterproof IP66 rating. It can be easily installed on the wall, with stand mounting available as well.
Save Money by creating your Charging Schedule
With our charger’s custom charging schedule feature, you can tap into cheaper off-peak energy or align your charging sessions with your solar generation. This means you’ll not only enjoy a greener lifestyle but also keep more money in your pocket. Please note the schedule requires you to plug in and out daily.
Ideal use is for home and light commercial applications. For more heavy duty or public applications consider the Ocular IQ Commercial range here

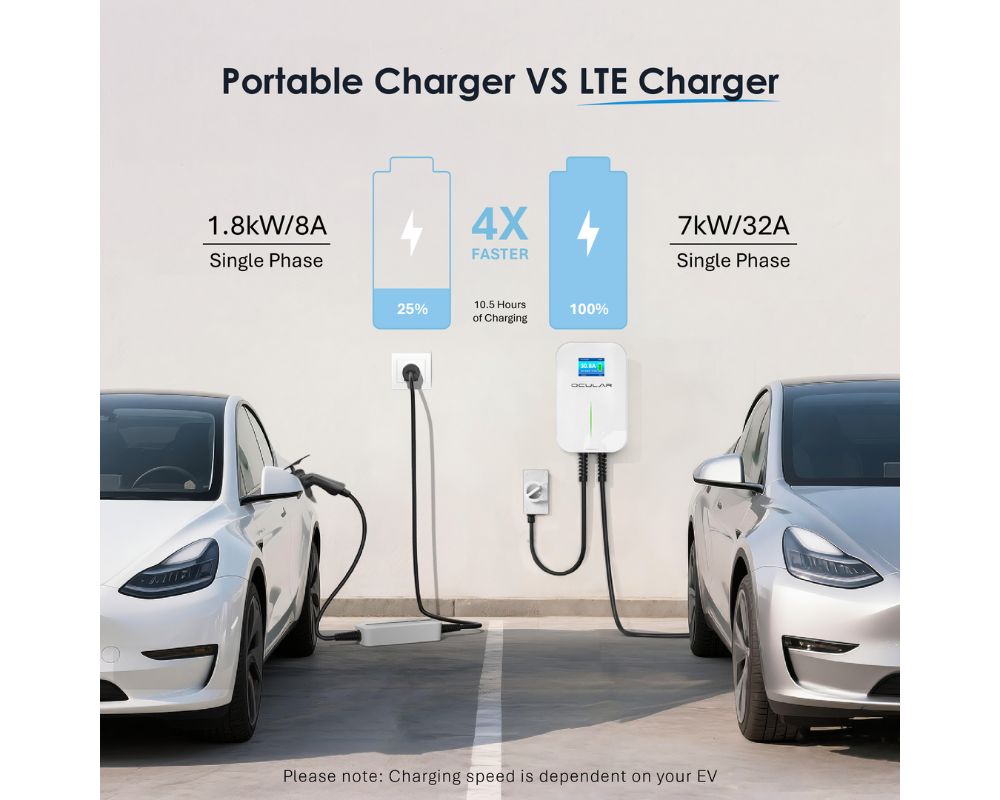

Faster charging
With the Ocular Universal charging station range, you can charge up to 4-12 times faster than with a conventional domestic portable.
Simple To Use, Easy to Install
The Ocular LTE can be installed easily with the unit preconfigured. The electrician just needs to mount and connect it to the electricity board of a home. Once installed, you can charge your electric car with a handle. The multicoloured LCD shows the current operating status at all times.
Integrated Cable Holder
Ocular is all about the user experience, as seen with the inbuilt cable holder to neatly wrap and protect your EV equipment.
Multiple Variations
Choose either a universal charging station or purchase with a 6m Type 2 cable hardwired onto the unit. Available in both single and three-phase.
Charge every EV in Australia
Every EV in Australia is compatible with this EV charger, including Tesla. We understand that people don’t keep the same EV forever and your EV charging solution should provide you with the flexibility to upgrade or add more EVs to your home.
Australian Owned
100% Australian-owned with Australian-based support. Be confident that your charging station is backed locally and that your warranty is held under Australian consumer laws.
Keep this in mind when installing:
For your safety, the installation must only be carried out by a licensed and qualified electrician familiar with Australian industry standards and is fully responsible for the installation.
Connectivity:
- Bluetooth to APP – EVSE Master
Input & Output
- Input voltage/Output voltage – AC 230V
- Adjustable output – 6A – 32A – Via Bluetooth APP
- Manual override -plug and charge via side button
- Input frequency – 50Hz
- Max. output power – 7.4KW(1 Phase)
- Max. output current – 32Amp
- Charging interface type – IEC 62196-2, SAE J1772
Protection
- Over voltage protection
- Under voltage protection
- Over load protection
- Short circuit protection
- Earth leakage protection
- Over-temp protection
- Lightning protection
Function and Accessory
- LCD – 3.5 inch
- RCD – Type A + 6mA DC
- LED Indicator light
Working environment
- Protection degree – IP66
- Environment temperature – -40 – 75 Degrees Celsius
- Relative humidity – 0-95%
- Cooling – Natural Air Cooling
- Standby power consumption – <8W
Mechanical
- Dimension (W/H/D) – 295/195/65mm
- Weight – 6 kg
Mounting Accessories
- Wall-mounting bracket
- Ground-mounting pole – Optional
Certificate
- CE, TUV, FCC, CSA, RoHS, RCM mark
