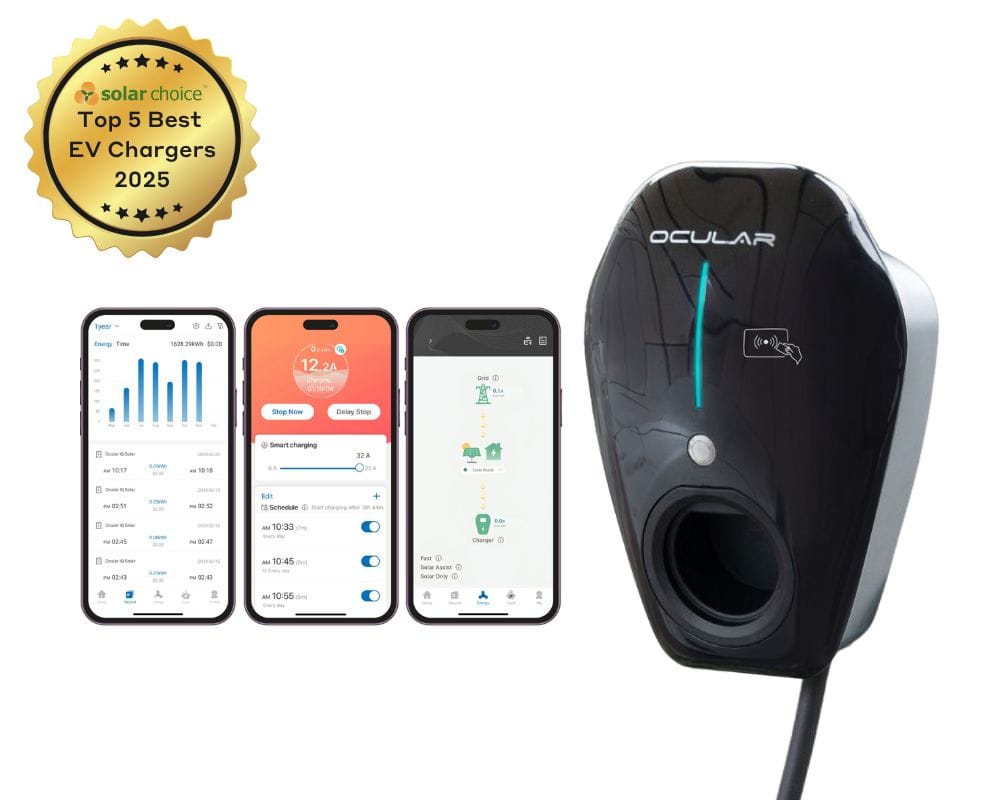

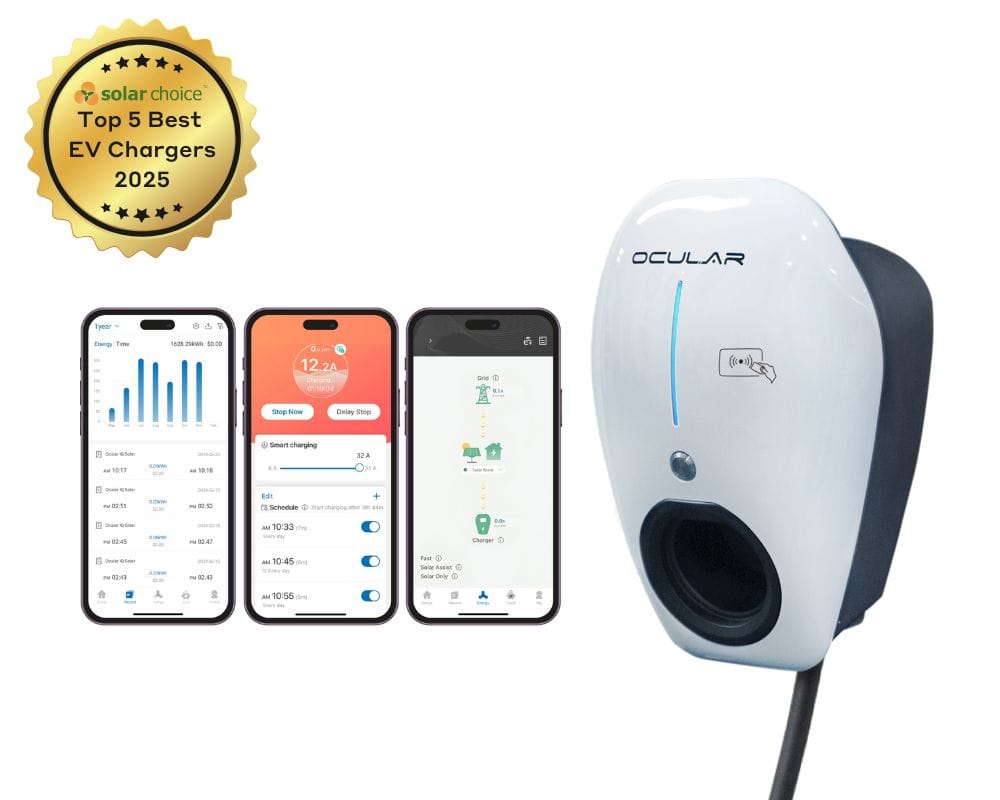

Welcome to the future of charging with the IQ Home Solar, our cutting-edge charging solution is designed to meet the needs of modern electric vehicle owners, offering versatility, efficiency, and convenience at their doorstep. The IQ Home Solar comes in both single-phase (7kW) and three-phase (22kW) configurations and is compatible with all electric vehicles in Australia. The system comes with CT clamps to measure your solar production excess, which enables you to charge with green, free electricity from your solar panels, and protects your home from overloading. The IQ Home Solar has three different charging modes to suit your individual needs and solar production levels. Built to withstand the Australian elements, it comes with IP55 protection, ensuring reliable performance in any weather conditions. The unit’s compact design makes it ideal for residential settings, allowing for easy installation and seamless integration into your home. Equipped with a 5m type 2 cable, the charger offers convenient and hassle-free charging for your EV.
Please take a moment to read through our FAQ’s in the datasheet section to ensure you understand exactly how the product works to ensure it’s right for your home.
FAQ’s
Before purchasing, please take some time to read our FAQ’s which will help you understand the capabilities of the Ocular IQ Home Solar.
Power. In your hands

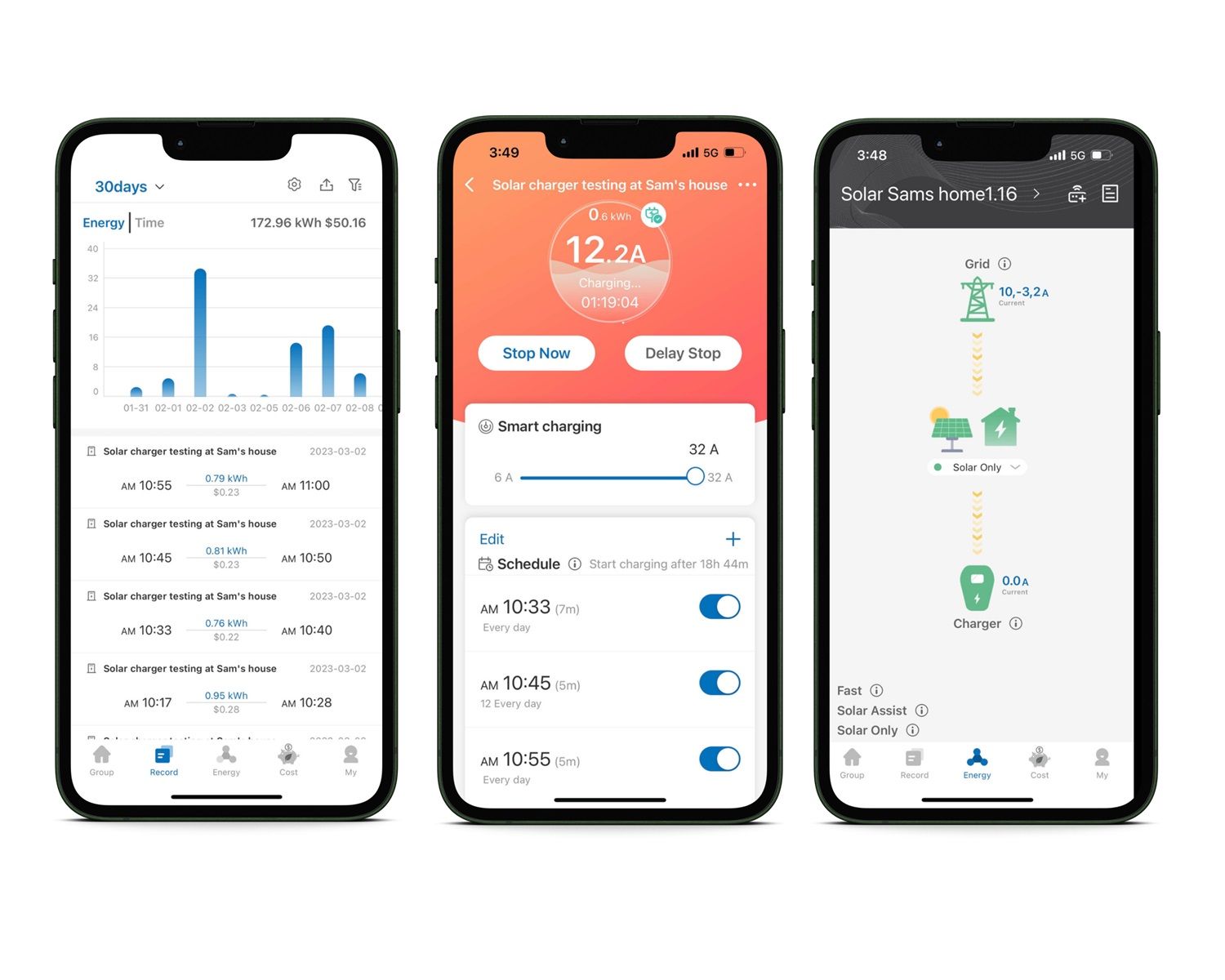

Start, stop and schedule your charging sessions all from the palm of your hand. Monitor energy usage and manage access to your electric vehicle charger using our iOS & Android smartphone app. Track and adjust power consumption from your fingertips.
Solar Charging
Do you have Solar Panels on the roof or are planning to add some in the future? The Ocular IQ Home Solar can charge using solar panels to decrease your charging costs and utilise green energy to charge your electric car. Solar charging your electric car in multiple modes with any solar panel or invertor brand. The system works by using CT clamps to measure the solar generation of the home and then match the charging speed to take advantage of solar rather than exporting to the grid. This essentially allows your vehicle battery to become a solar sponge and importantly reduces your cost of charging. We help ensure your EV is charged fast, safely, and with the lowest carbon emissions. Click here to find our how solar and load control works to charge your EV!
What does each charging mode do? Fast, Solar Assist or Solar Only.
The Ocular IQ Home Solar is designed to offer flexibility through three (3) charging modes: For solar charging our preferred mode is solar assist as it always ensures a baseline load + excess solar.
Fast Mode: In this mode, the vehicle will be charged at maximum power. This power can come from a renewable energy source or the grid. If you have set a current limit on the schedule or by the electrician during installation that will determine maximum power.
Solar Assist: (Recommended Solar Mode): This mode will charge your EV at a minimum of 6 Amps plus any excess solar produced. If solar production is low, power will be drawn from the grid. This is the preferred solar mode, particularly on cloudy days or when you have a smaller solar system. This will ensure a continuous charge plus any excess solar that your home generates.
Solar Only: This mode charges your EV only when excess solar is produced. Please note a minimum excess of 7 Amps is required to use this mode so that the integrity of your vehicle’s battery is protected. If the solar production drops below 6 Amps the charging will pause and then restart after ~2-3 minutes of excess solar above 7 Amps. We recommend this mode when you have a clear excess of solar power produced. Use Solar Assist when your production is low or intermittent.
Safe – Power Balancing
The Ocular IQ Home Solar has energy balancing for energy-restricted homes, especially in the hot Australian summer. The Ocular IQ Home Solar senses energy limitations in your home and adjust your charging speed to avoid overloading your electrical supply. Utilising CT clamps the Ocular IQ Home Solar senses a home’s available electricity. It can read the incoming feed to the building, take into account the building energy usage and calculate a final amount of power that is then distributed to the charger. The IQ Home Solar reads the power feed every second and reduces the power output when other home appliances, such as a water heater, air condition systems are turned on. Once the water heater is turned off, the charger will automatically read the available power and increase the power output to the maximum available level. This gives you the maximum charging speed without tripping your home’s power.
Can I use my own installer?
If you wish to use your own installer, they must be a fully qualified electrician. Ocular cannot be held responsible for any issues or failures of any products caused by the installation process or from a result of an incorrect set up and configuration. We highly recommend you engage one of our trained and authorised installers to ensure the unit is connected correctly the first time. Free training is available for electricians here
What happens when I have a stationary home battery?
For the most part, any excess solar produced by the system will be absorbed by the battery. The Ocular IQ Home Solar modes work by using a CT Clamps to understand what you are exporting out to the grid. You may find that the home battery is absorbing most of your excess solar generated first and so what’s going out to the grid is minimal. Despite this, it’s fine to still install a charger, but you may find the solar assist mode is the best mode as it draws a small amount from the grid/battery when no excess solar is being produced. If there is excess solar available, it can then utilise the available excess solar that the battery is not taking.
Ocular is 100% Australian Owned and Operated
Founded by Australian EV Charging Pioneers the Ocular brand succeeds because of the substantial knowledge in electronics manufacturing gained through years of experience in EVSE installation. Since the early introduction of EVs in Australia the Ocular Charging team has been providing solutions across all scales, applications, and business types. Moreover, our expertise in safety technology and in the area of payment solutions constantly influences development which makes it possible to fulfill a wide range of business outcomes through our infrastructure.
Keep this in mind when installing
For your safety, the installation must only be carried out by a licensed and qualified electrician familiar with Australian industry standards and is fully responsible for the installation Ocular cannot be held responsible for any issues or failures of any products caused by the installation process or from a result of an incorrect set up and configuration.
Tech Specifications – See Datasheet for more information
- OCPP 1.6J, 2.01 Integration
- Wifi / Ethernet Modbus
- 22 KW, 32Amp, Three Phase Configurable Power
- 5m Tethered Cable
- Wall or pole mounted for convenience.
- Integrated Metering
- Indoor and Outdoor Rated
- 2 Year Warranty
- Compatible with all-electric vehicles and models including Audi, BMW, BYD, Deepal, EQC, Geely, Holden, Honda, Hyundai, Jaguar, KIA, Mazda, Mercedes Benz, Mini, MG, Mitsubishi, Nissan, Polestar, Porsche, Renault, Rivian, Tesla, Toyota, Volkswagen, Volvo, Xpeng, Zeekr, etc. If you are unsure if this charging station is right for your EV, get in touch with our team.
- Robust, space-saving housing
- Current Transformer (CT) clamps included to measure excess solar output.- Long 20m cable to reach from your charger location to the distribution board.- 100A maximum rated current and 16mm maximum cable size fits most residential installations.- For the 3 Phase charger, 3 clamps are included, and on single phase, only one clamp is included.
