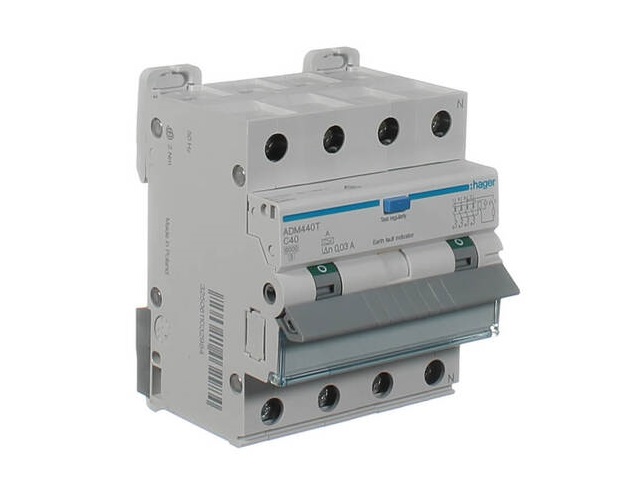

Number of modules: 4
Number of poles: 4 P
Rated short circuit breaking capacity: 6 kA
Curve: C
Rated current: 40 A
Frequency: 50/60 Hz
Rated insulation voltage: 240 V
Operating temperature: -25 to 60 C
Rated residual operating current -30 mA
Rated current- 40 A
Withstand not tripping on 8-20 μs wave 3000 A
Rated service breaking capacity Ics AC according IEC 60898-1 – 6 kA
Breaking and opening capacity- 4500 A
min/maxi threshold value of the AC thermal operation – 1.13 / 1.45 In
Magnetic regulating currrent- 5 / 10 In
Number of mechanical operations: 4000
Tightening torque: 2Nm
Height of installed product: 84 mm
Width of installed product: 70 mm
Depth of installed product: 71 mm
