EV-DB Outdoor IP66 72 Pole – 70% Loaded – 1 Phase RCBO

Model
google-reviews
Availability: In Stock

QUICK OVERVIEW

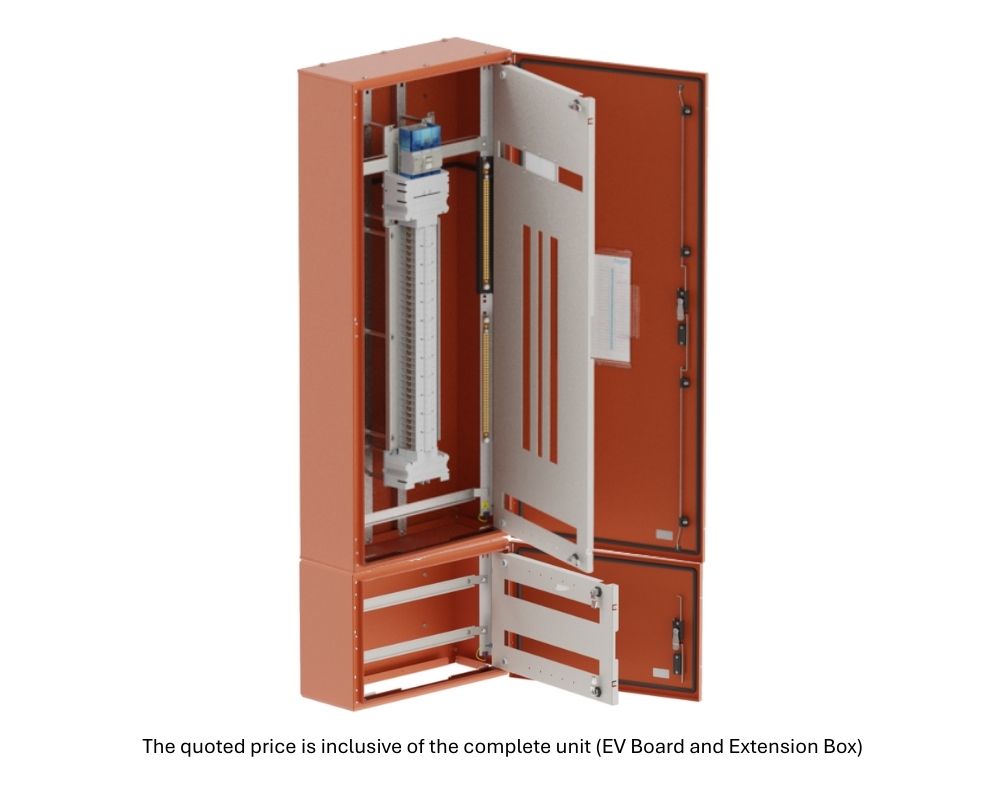

  • Hager Elite Series 72 ways + extension box IP66 metal distribution board (standard orange) with 250A main switch and equipment listed on bill of materials.
  • Rated Operational Voltage 415V 50HZ
  • 50 x 1 Pole RCBO 40A
  • Emergency & Exit or any other lighting control is not included in the offer
  • Dimension – 1600mm H x 600mm W x 250mm D
  • NCC Certified – Fully Compliant with Australian and New Zealand regulations
  • Multifunction Meter DIN Rail 1x3P RS48
SKU: HAG-OUT-L1P-72
Shipping 3 Free Shipping Australia Wide
Warranty 3 Up to 3 Years Warranty
Dispatch 3 Same Day Dispatch
Years 3 Since 2015

Bill of Materials

Product Code Item Description Quantity
JPE0EXTDX EXTENSION BOX, ELITE, 48P, X15 1
JPE7200S25DX DB, ELITE, 72P, 250A ISO, X15 1
JKM01 MULTIFUNCTION METER DIN RAIL 1X3P RS485 1
EC25250CT CT BGUK 3P 250A/330MV CL.1 PITCH 35MM 1
PGMF1300AU 1.3M – METER VOLTAGE SUPPLY CABLE 1
PGRJ1000 RJ45 CONNECTOR CABLE 1
MSN306 MCB 3P 6KA C-6A 3M 1
ADC240T RCBO 1M 1P 6KA C-40A 30MA A 50
MOD1 HBR PROJECTS – ASSEMBLY & WIRING 1

Additional information

Weight 31.48 kg
