EV Charger Tester | Metrel | 1532 XA Adapter

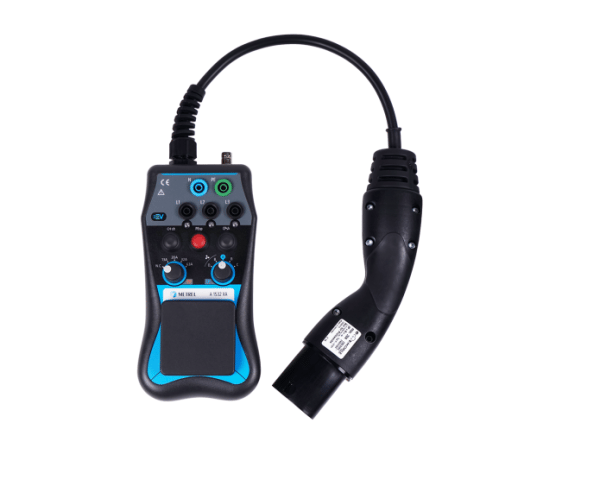

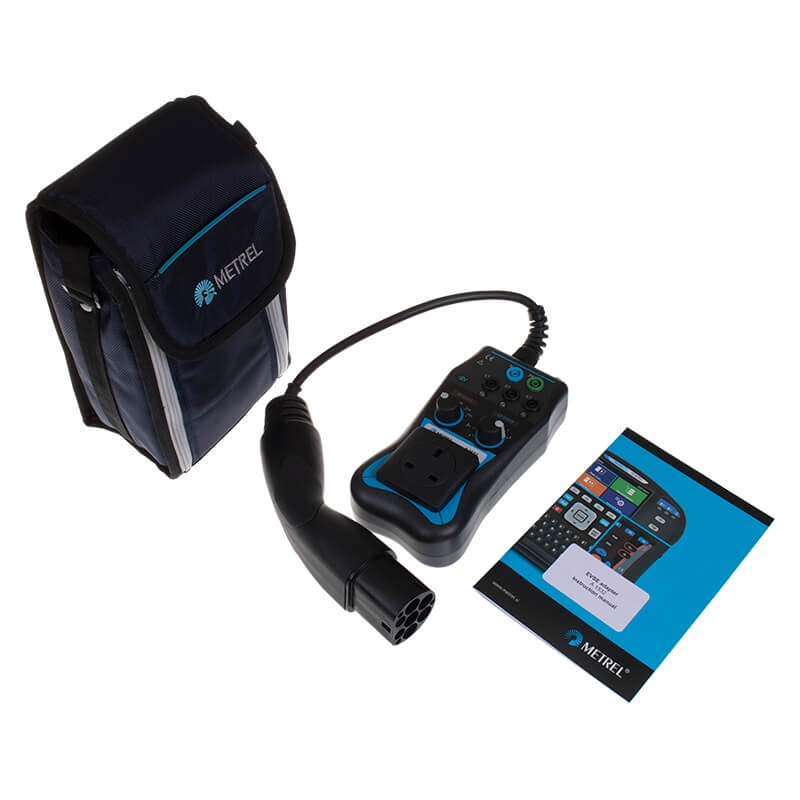

The A 1532 EVSE XA adapter is used for verification of electrical safety and functional testing of EVSE together with supported METREL installation testers. It is intended for testing Mode 3 EV supply equipment with a type 2 connector. XA version supports 3 phase load testing up to 13 A and different error types, including PE open. If used together with Metrel AUTOSEQUENCES®, prebuilt in the newer multifunctional testers, the complete EVSE charging station can be tested (state-by-state) electrically and functionally with a push of a button. It is possible to create a professional station based report with MESM

• Banana socket outputs for connection to a 3-phase installation tester;

• Voltage indicators on EVSE output;

• Proximity Pilot resistance selector for simulation of EV cable presence and current rating detection;

• Control Pilot resistance selector for simulation of electric vehicle status;

• Socket output for connection to a 1-phase installation tester (Phase 1, Neutral, PE);

• Type 2 Male Plug connector for connection to EVSE;

• 6 mA EV RCD support;

• Functional tests support;*

• EVSE AUTO SEQUENCE® support;*

• MESM report creation;**

• Load testing up to 13 A on socket – 1 phase or on banana sockets – 3 phase;

• Fault simulation of Diode short, PE-CP short and PE open;

• Output BNC connector for CP signal monitoring
