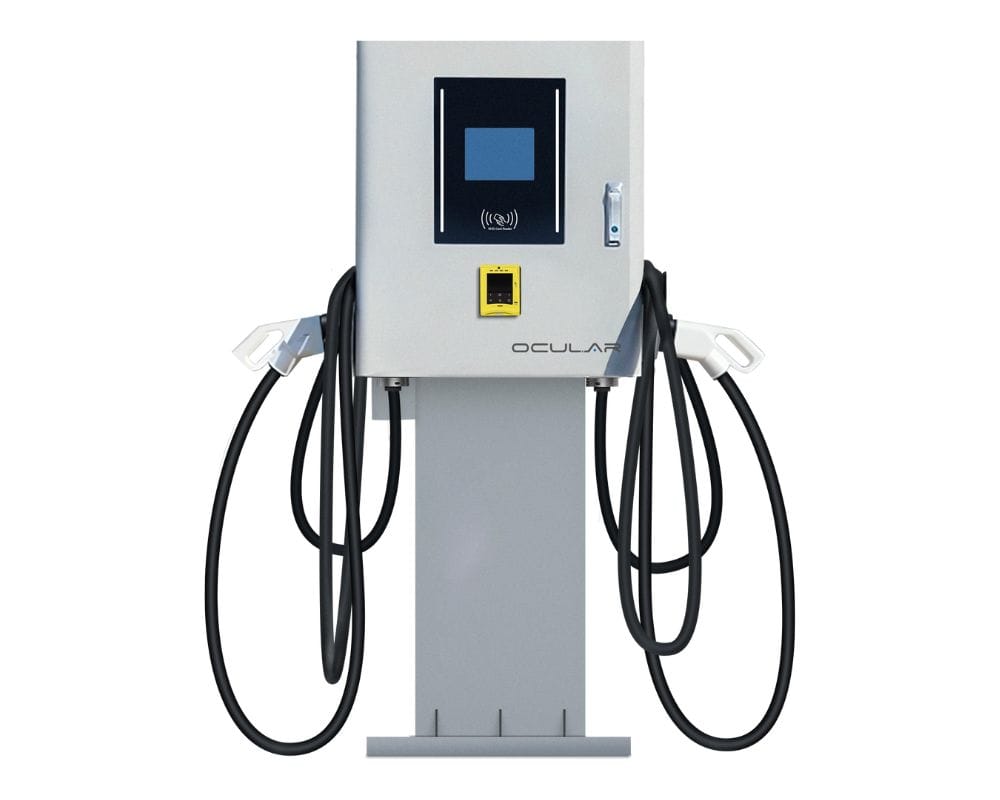

Ocular Titan DC Charger | Credit Card | 60kW | Dual Charger CCS2

Model

Availability: instock

QUICK OVERVIEW

EVSE dual high powered EV credit card system delivers a fast, reliable and future-ready EV charge. Great for the office, high traffic commercial applications & carparks. The 60kW EV charger comes with a built-in telemetry system with the ability to update billing over the air.

Can charge 2x EV’s at once
60 kW single output ( 360km of additional range per hour )
Easy Installation
Wall or Floor mounted
Billing Capable via Credit card module & OCPP
Credit card module requires extra fee
Compatible with all-electric vehicles and models including Audi, BMW, BYD, Deepal, EQC, Geely, Holden, Honda, Hyundai, Jaguar, KIA, Mazda, Mercedes Benz, Mini, MG, Mitsubishi, Nissan, Polestar, Porsche, Renault, Rivian, Tesla, Toyota, Volkswagen, Volvo, Xpeng, Zeekr, etc. If you are unsure if this charging station is right for your EV, get in touch with our team.

SKU: IOC060HY2-EE-CC

Free Shipping Australia Wide

Up to 2 Years Warranty

Same Day Dispatch

Since 2015

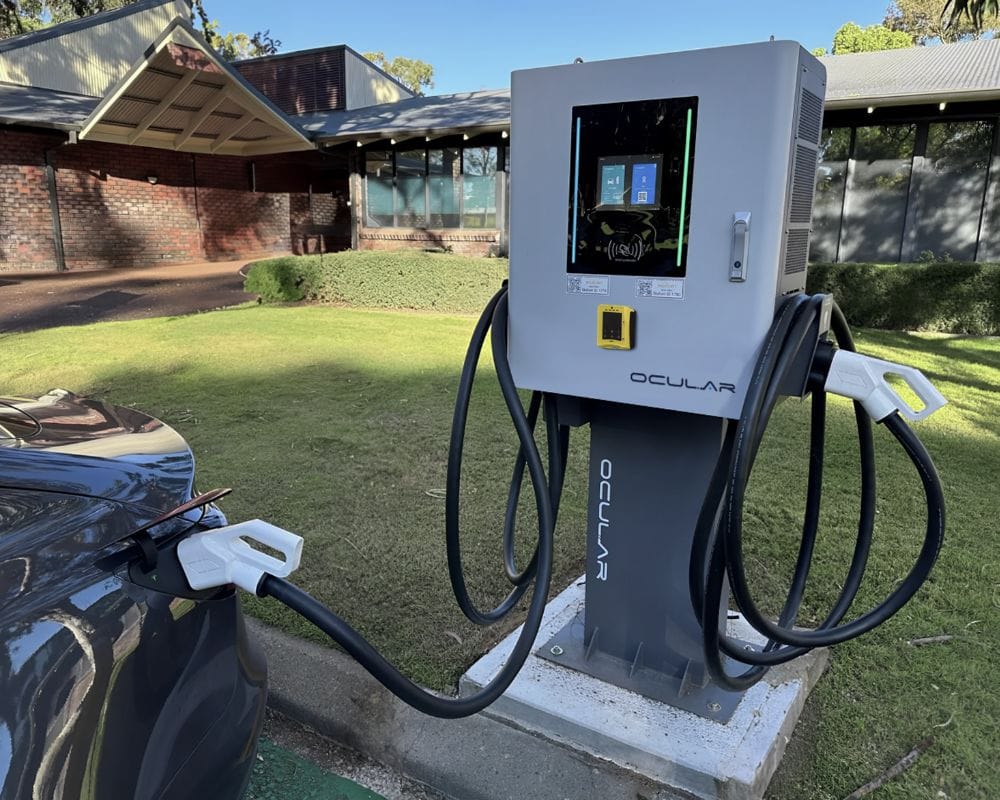

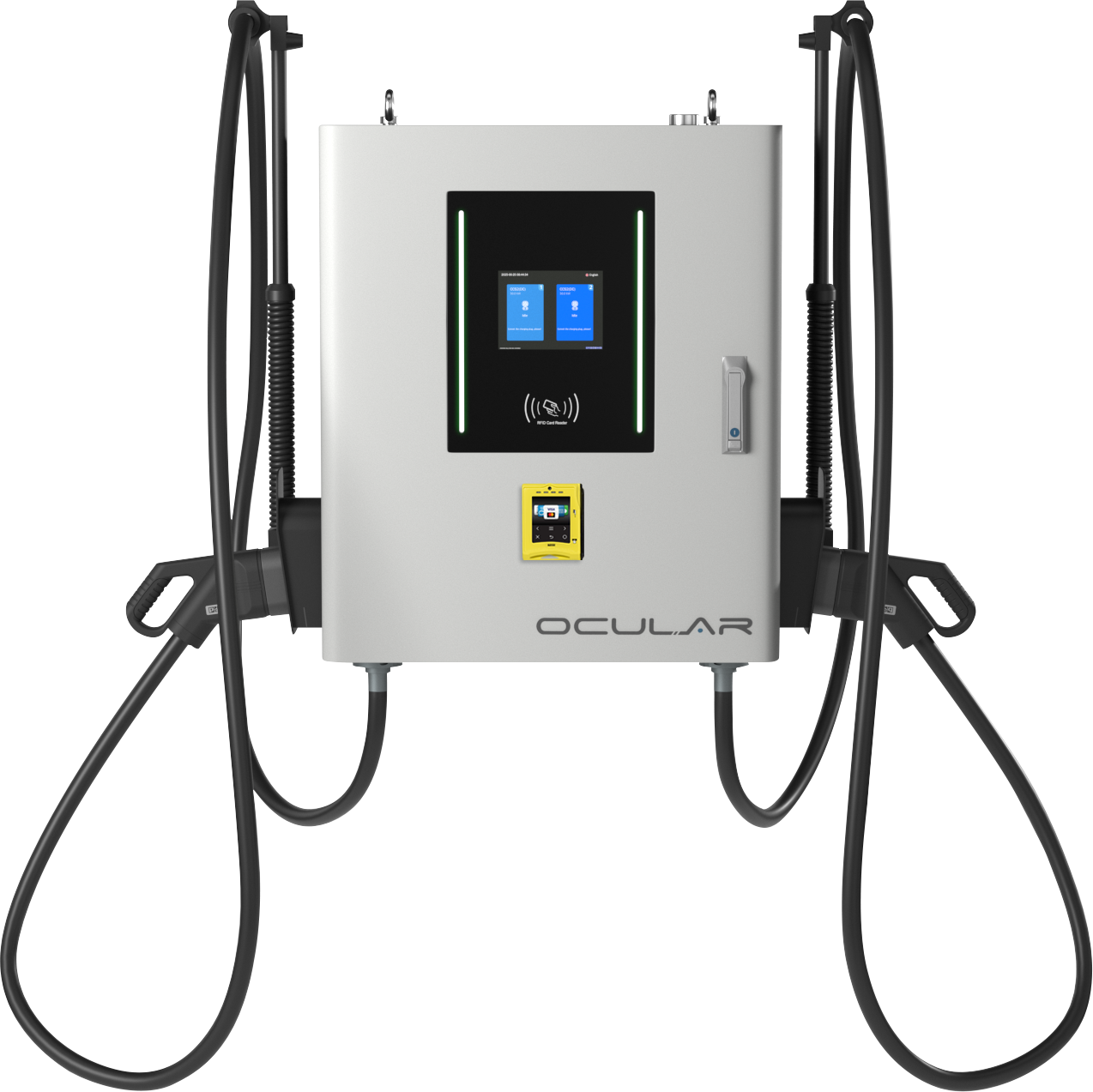

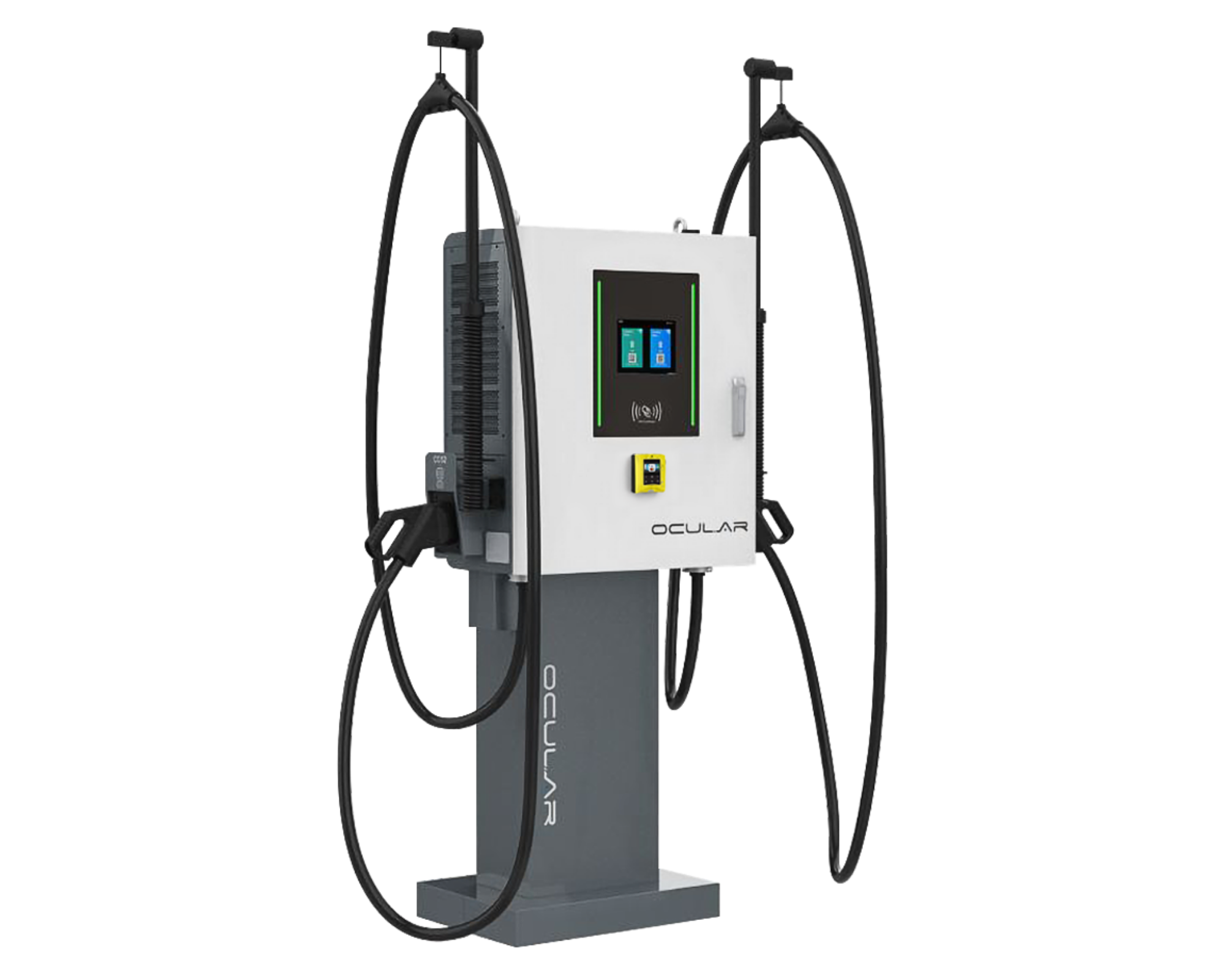

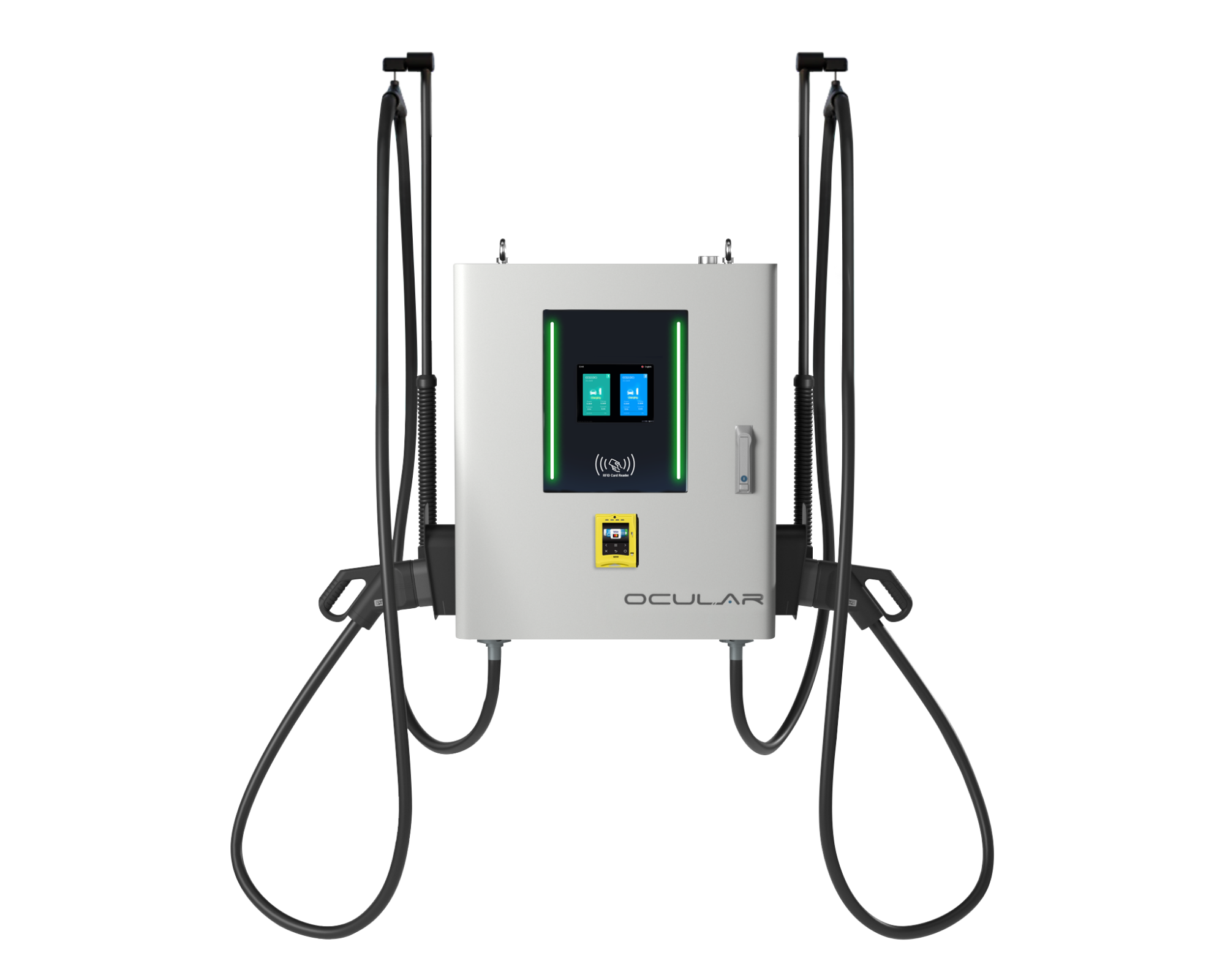

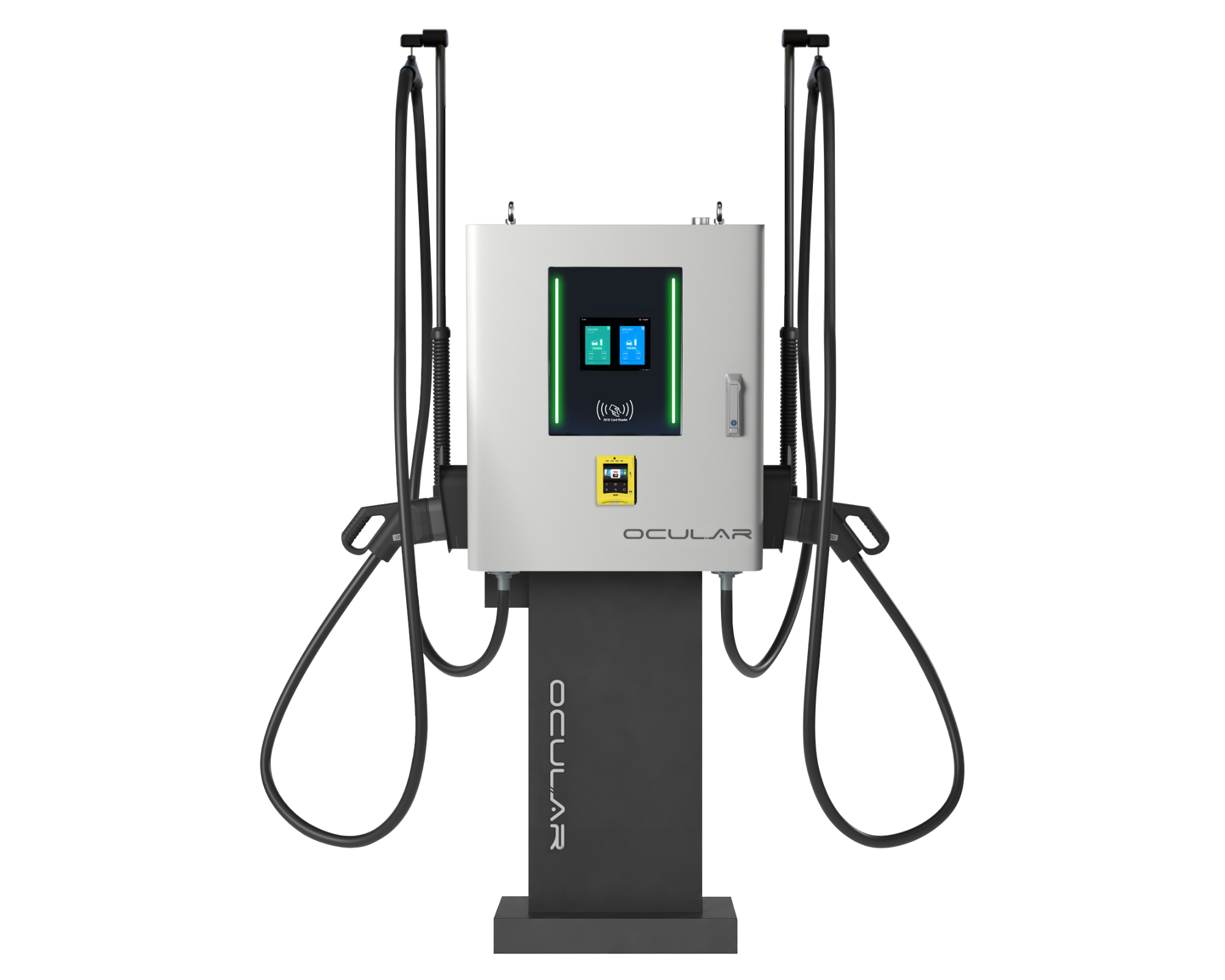

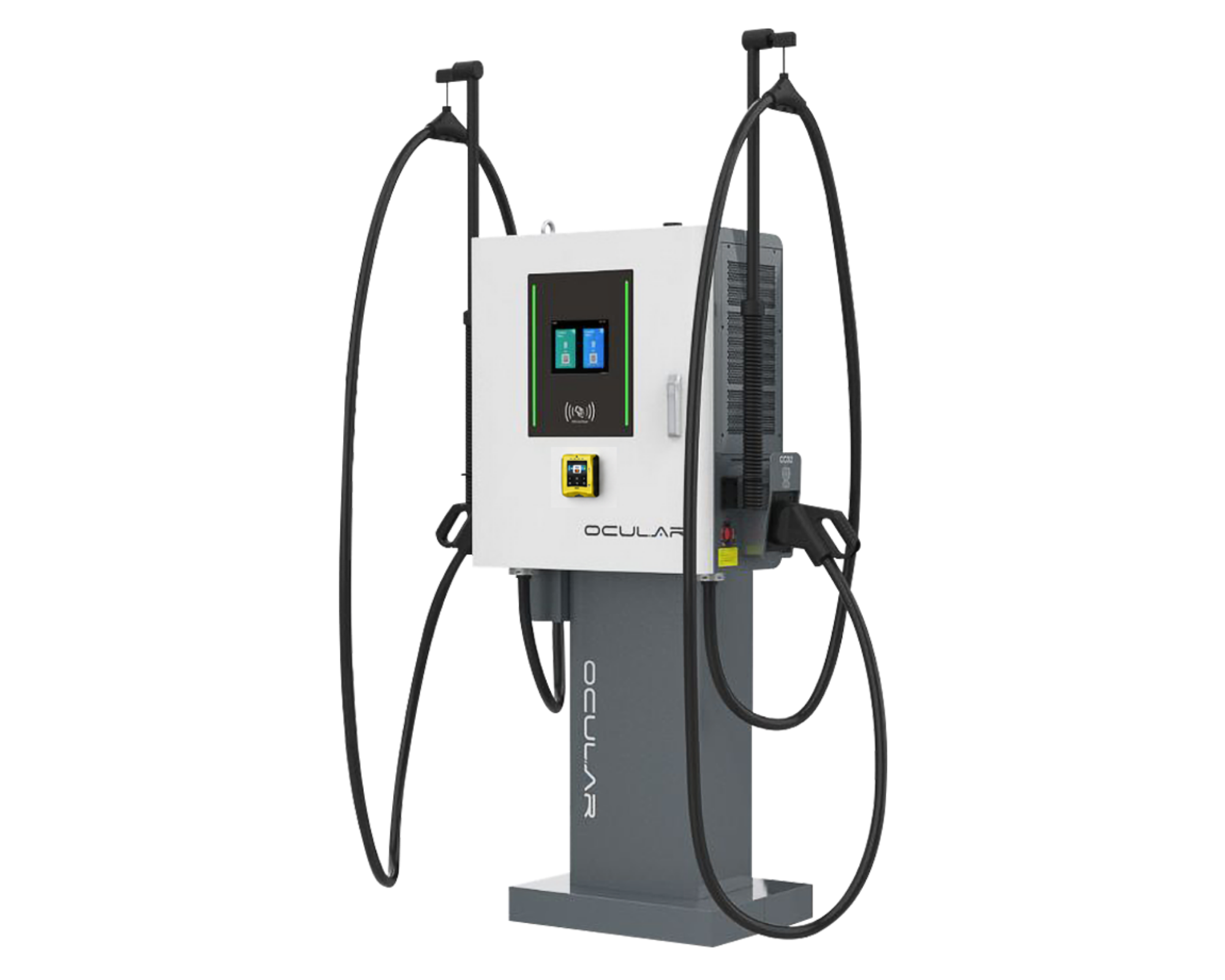

The Ocular Titan Dual DC Wallbox 60kW can fast charge 2 EV’s at once. The unit comes standard with 2x CCS2 Cables designed to charge 1 or 2 EV’s simultaneously.

CCS 2, Fast-charging –
Audi, BMW, Hyundai, Jaguar, KIA, Mercedes EQ, Mini, MG, Polestar, Renault, TESLA, Volkswagen, Volvo, SEA Electric, Volvo Trucks, Daimler Trucks, Hino Truck, BYD Buses.
99% of EV’s in Australia use CCS2.

Untitled Design (42) Nayax Module:

The credit card Nayax module simplifies and enhances the user experience
Quick and straightforward transactions without the need to download or navigate through an app
Less dependence on internet connectivity and mobile device battery life, ensuring consistent service availability
Faster payment processing as users can simply tap their cards, reducing wait times.

Specifications:

CCS 2 Dual charging port
Rated input voltage: 400V AC 3-Phase
Frequency: 50Hz/60Hz
DC plug type: Dual CCS Type 2 as standard – CHAdeMO to order
Output voltage range: 150~1000V DC
Max. output power: 60kW
8-inch touchscreen display
RFID card, Mobile APP via OCPP
OCPP 1.6 & 2.0 Compatible
Load management available to control multiple units with load challenges.
Efficiency: ≥94%
Cable Length: 7m
RCM Certificate to Australian and European Standards

Protection:

Over voltage protection
Under voltage protection
Over load protection
Leakage current protection
Overtemperature protection
Short circuit protection
Lightning protection

Function & Accessory:

Indicator- Display: 8 inch touch screen
Emergency stop: Yes
Payment support: Yes vis OCPP
RFID/QR Code
Ethernet/4G inbuilt

Working Environment:

Operating temperature: -30°C ~+55°
Relative humidity: 5%-95% non-condensing
Maximum altitude: 2000m
Cooling: Forced air cooling
Standby power consumption:<25W
Protection degree: IP54

Mechanical:

Dimension (H/W/D)- 770/690/355mm
Weight- 85KG

Please note* This product requires a monthly fee to enable the credit card terminal which is standard practice. Please call EVSE for more information.
