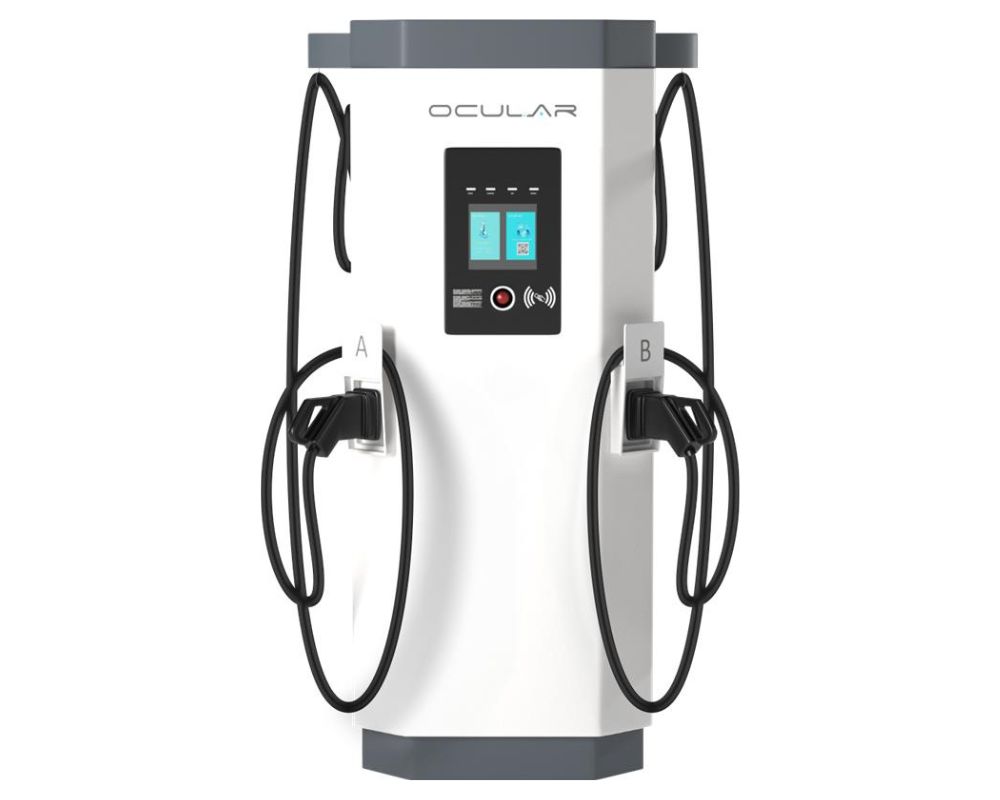

Ocular Atlas DC Charger | 180kW | Dual Charger CCS2

Model
google-reviews
Availability: instock

QUICK OVERVIEW

The Ocular Dual DC Charger is designed to supercharge electric vehicles conveniently with its robust metal casing and functional 8inch LED display.  The Ocular system is equipped to also power vehicles with high voltage battery systems. Compatible with all major EV Brands in Australia.

  • Great for the office, commercial applications or roadside
  • Charging Speed – 180 kW (1040km of driving per hour of charge)
  • Can charge 2x EV’s at once (Split is 90kW, 90kW)
  • Compatible with all-electric vehicles with DC Capabilities
SKU: IOC180JY2-EE
Shipping 3 Free Shipping Australia Wide
Warranty 3 Up to 2 Years Warranty
Dispatch 3 Same Day Dispatch
Years 3 Since 2015

The Ocular Atlas Dual DC Charger is designed to supercharge electric vehicles conveniently with its robust metal casing and functional 8inch LED display.  The Ocular system is equipped to also power vehicles with high voltage battery systems. The Oculars compact size and touchscreen makes it perfect for public and fleet use. Importantly unlike other units the Ocular system is designed to charge 2 vehicles simultaneously allowing you to double your vehicle servicing.

The Ocular Atlas comes standard with dual CCS 2 ports but also other configurations to order including Chademo and CCS1. The unit is compatible with all major brands in Australia.

Ocular Charging is Australian Owned and operated meaning all parts and servicing is available to maximise uptime and reliability.

Multiple VariationsSpecifications:

  • Connectors: CCS2 x 2 – (Option for CHAdeMO and CCS1)
  • Power: 1000V – 180kW
  • 250Amp CCS2 Cable
  • 30kW Power Modules for easy servicing
  • Supply input: 260V-530V  AC
  • Supply frequency:  50-60 Hz
  • IP55
  • Warranty: 2 Years
  • Cable Length: 5m Phoenix Contact Cable
  • Forced Air Cooling
  • RFID, OCPP APP enabled
  • Credit Card upgrade available
  • Efficiency >95%
  • Power Factor: 0.99
  • Display: 8 inch Touchscreen
  • Operating Temperature: -35C to 55C
  • Network Connection: 4G and Gigabit Ethernet
  • OCPP 1.6J
  • Weight: 450 kg
  • Dimensions: 1816(H) x 1007(W) x 750(D) mm
  • Certifications: CE, RCM
  • Electrical Protection: Over current, short circuit, under voltage, ground fault, lightning surge, over temperature

7174239Keep this in mind when installing:
For your safety, the installation must only be carried out by a licensed and qualified electrician familiar with Australian industry standards and is fully responsible for the installation

Please note charging speed is also dependent on the vehicle- The unit delivers 250Amp maximum x Voltage of the vehicle.

Additional information

Weight 553 kg
