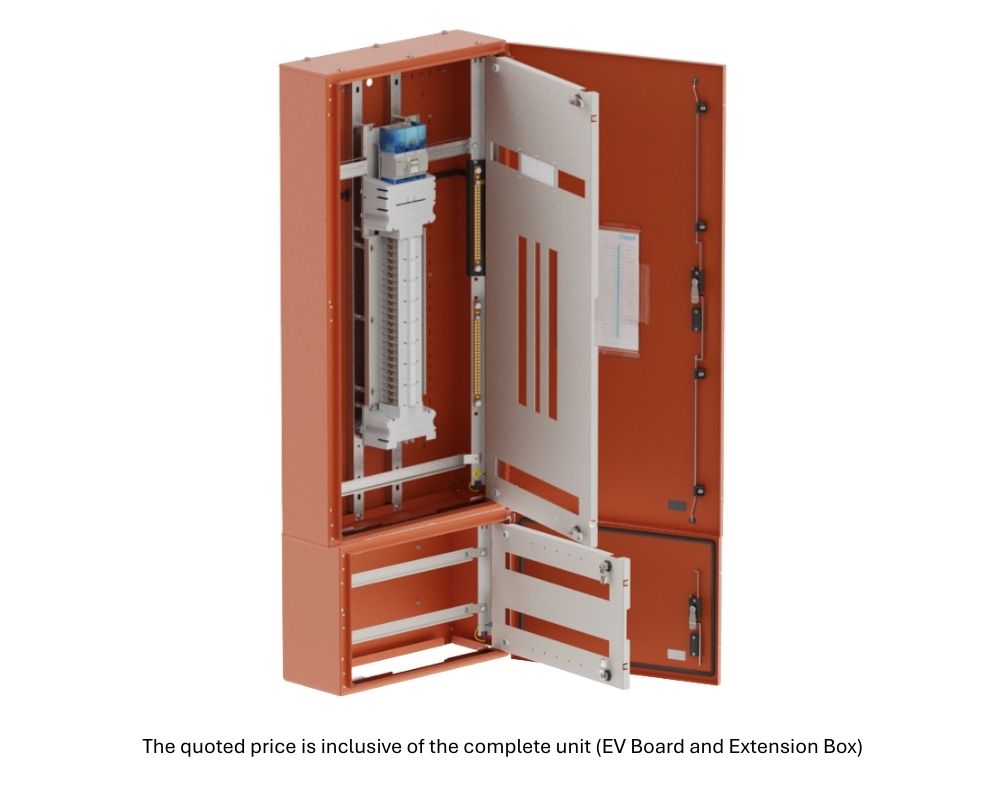

Evdb Outdoor Ip66 48 Pole

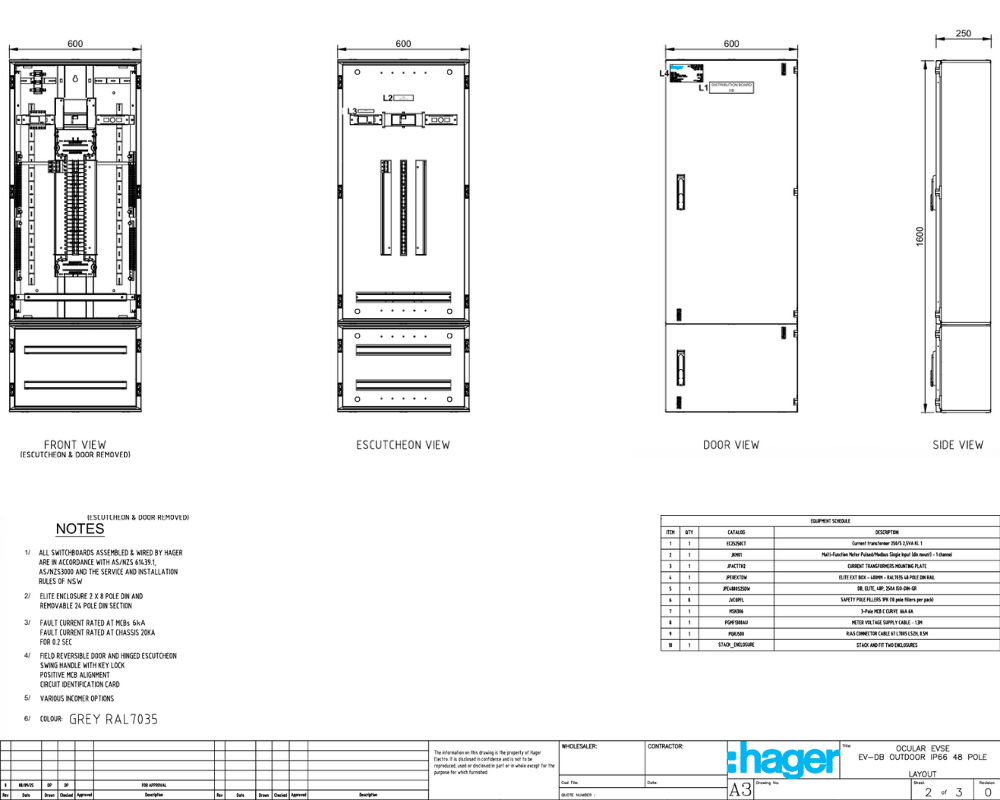

Ev Db Outdoor Ip66 48 Pole Switchboard + Extension Box Cad Drawing

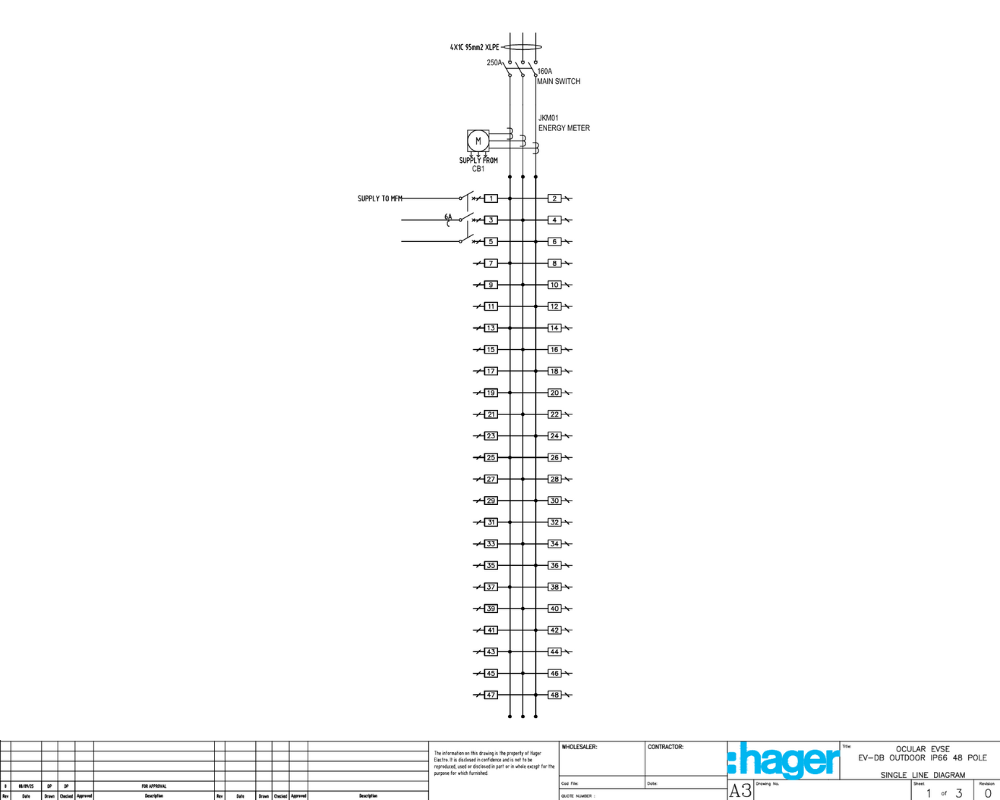

Ev Db Outdoor Ip66 48 Pole Skeleton Cad Drawing
Evdb Outdoor Ip66 48 Pole
Ev Db Outdoor Ip66 48 Pole Switchboard + Extension Box Cad Drawing
Ev Db Outdoor Ip66 48 Pole Skeleton Cad Drawing

EV-DB Outdoor IP66 48 Pole – 70% Loaded – 1 Phase RCBO

Model
google-reviews
Contact Us
Availability: In Stock

QUICK OVERVIEW

Dedicated Outdoor IP66 48 Pole Electric Vehicle Distribution board and extension box, inline with the New National Construction Code and the AS/NZ standard.

  • Rated Operational Voltage 415V 50HZ
  • 34 x 1 Pole RCBO 40A
  • Emergency & Exit or any other lighting control is not included in the offer.
  • Dimension – 1600mm H x 600mm W x 250mm D
  • NCC Certified – Fully Compliant with Australian and New Zealand regulations
  • Multifunction Meter DIN Rail 1x3P RS48
SKU: HAG-OUT-L1P-48
Shipping 3 Free Shipping Australia Wide
Warranty 3 Up to 3 Years Warranty
Dispatch 3 Same Day Dispatch
Years 3 Since 2015
Product Code Item Description Quantity
JPE0EXTDX EXTENSION BOX, ELITE, 48P, X15 1
JPE4800S25DX DB, ELITE, 48P, 250A ISO, X15 1
JKM01 MULTIFUNCTION METER DIN RAIL 1X3P RS485 1
EC25250CT CT BGUK 3P 250A/330MV CL.1 PITCH 35MM 1
PGMF1300AU 1.3M – METER VOLTAGE SUPPLY CABLE 1
PGRJ1000 RJ45 CONNECTOR CABLE 1
MSN306 MCB 3P 6KA C-6A 3M 1
ADC240T RCBO 1M 1P 6KA C-40A 30MA A 34
MOD1 HBR PROJECTS – ASSEMBLY & WIRING 1

Additional information

Weight 31.48 kg
